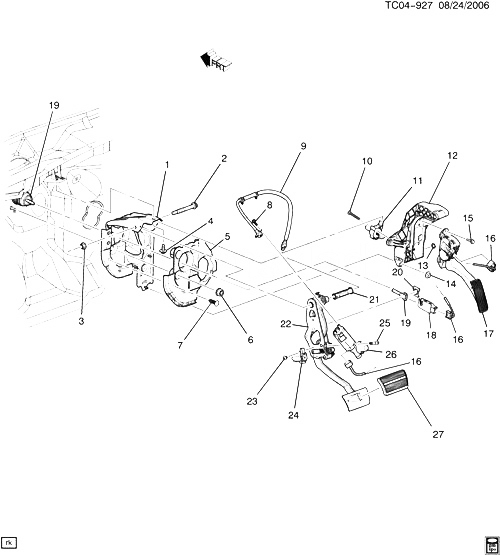

(TC04-927) - 2007 CK1,2(06-36) ТОРМОЗНАЯ ПЕДАЛЬ (POWER ADJUSTABLE PEDAL JF4, AN3) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25825916 BRACKET, BRK ACCEL PED (INCLS 5, 7) ( CK1 2007-2007 01
001 25825916 BRACKET, BRK ACCEL PED (INCLS 5, 7) ( CK1 2007-2007 01
002 15000145 CK1, 2, 3 2007-2007 01
003 11514598 CK1, 2, 3 2007-2007 01
004 11517182 CK1, 2, 3 2007-2007 01
005 INSULATOR, DA PNL (PART OF 1) 2007-2007
006 11517996 CK1, 2, 3 2007-2007 04
007 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) 2007-2007
008 2007-2007
009 CABLE, BRK PED POSN (PART OF 22) 2007-2007
010 11562023 CK1, 2, 3 2007-2007 02
011 15123616 ACTUATOR PKG, THROT CK1, 2, 3 2007-2007 01
012 15824012 BRACKET KIT, ACCEL PED (FOR USE W/2-BOLT CBL ATTACHMENT AT ADJ MOTORUSE PN-25863992 FOR TWIST-LOCK CBL ATTACHMENT AT ADJ PFL MOTOR.) CK1, 2, 3 (JF4) 2007-2007 01
013 11505213 2007-2007 02
014 15685170 2007-2007 03
015 11516424 2007-2007 02
016 15918012 HARNESS, FUSE BLK WRG ( CK1, 2 (06-36) (JF4) 2007-2007 01
017 25832864 PEDAL, ACCEL (INCLS 13) (INCLS POSITION SENSOR) CK1, 2, 3 2007-2007 01
018 25981009 SWITCH, S/LP (ACDelco #D1539J) CK1 (06-36) 2007-2007 01
019 BOOSTER, P/B ( 2007-2007
020 11569844 RETAINER, BRK PED PUSH ROD (WITH BOLT) CK1, 2, 3 2007-2007 01
021 15200851 BUSHING, BRK PED PIV CK1, 2, 3 2007-2007 01
022 25968689 PEDAL, BRK (INCLS 8-9, 25-27) (IF REPL BRK PDL W/ 2-BOLT CBL ATTCHMNT AT ADJ PDL MOTOR, REQUIRES ACCEL BRKT KIT W/ CBL, PN 25863992) CK1 (06-36) (AN3, JD9, JF4) 2007-2007 01
023 88982978 CK1, 2, 3 2007-2007 02
024 88982977 SENSOR, BRK PED POSN (INCLS 23) CK1, 2, 3 2007-2007 01
025 2007-2007
026 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 22) 2007-2007
027 88982976 PAD, BRK PED (PART OF 22) CK1, 2, 3 (JF4) 2007-2007 01
