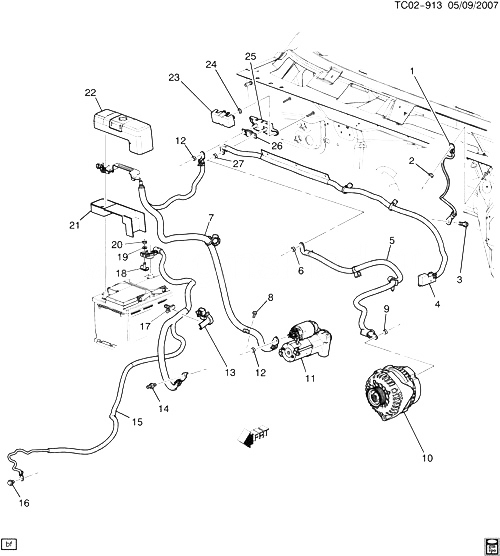

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25792519 |
STRAP, ENG GND (ACDelco #25792519) |
CK1 (L92, CMD, FWI, GMC) (EXC PPV, YF2, 5W4, 9L4) |
2007-2007 |
01 |
| 002 |
11609411 |
|
|
2007-2007 |
01 |
| 003 |
11609619 |
|
|
2007-2007 |
01 |
| 004 |
25814777 |
CABLE, BAT POS (INCLS 25-27) (ACDelco #25814777) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) (EXC PPV, TP2, 5W4, 9L4) |
2007-2007 |
01 |
| 005 |
20771932 |
CABLE, GEN BAT JPR (LABELED 20771932) (ACDelco #20771932) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 006 |
21021808 |
|
CK1, 2, 3 |
2007-2007 |
01 |
| 007 |
15252180 |
CABLE, STRTR SOL (INCLS 21, 22) |
CK1, 2 (06-36) |
2007-2007 |
01 |
| 007 |
25875320 |
CABLE, STRTR SOL (ACDelco #25875320) |
CK1, 2, 3 (L92) |
2007-2007 |
01 |
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2007-2007 |
01 |
| 009 |
11609411 |
|
|
2007-2007 |
01 |
| 010 |
|
GENERATOR, ( |
|
2007-2007 |
|
| 011 |
|
STARTER, ( |
|
2007-2007 |
|
| 012 |
21021808 |
|
CK1, 2, 3 (EXC HP2) |
2007-2007 |
02 |
| 013 |
10306471 |
SENSOR, BAT CUR (PART OF 15)
| CK1 |
2007-2007 |
01 |
|
| 014 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 015 |
25897054 |
CABLE, BAT NEG (INCLS 13, 17-20) (ACDelco #25897054) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) (EXC 9L4) |
2007-2007 |
01 |
| 016 |
11588337 |
|
|
2007-2007 |
01 |
| 017 |
19116354 |
CLIP, BAT CBL (PART OF 15) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) |
2007-2007 |
01 |
| 018 |
19116852 |
BOLT KIT, BAT CBL TERM (PART OF 15) (INCLS 19, 20)
| CK1, 2, 3 |
2007-2007 |
01 |
|
| 019 |
|
WASHER, BAT CBL TERM (PART OF 15, 18) |
|
2007-2007 |
|
| 020 |
|
|
|
2007-2007 |
|
| 021 |
15774329 |
COVER, BAT POS CBL TERM (BOTTOM) (PART OF 7)
| CK1, 2 (06-36) |
2007-2007 |
01 |
|
| 022 |
15774328 |
COVER, BAT POS CBL TERM (TOP) (PART OF 7)
| CK1, 2 (06-36) |
2007-2007 |
01 |
|
| 023 |
15861891 |
COVER, BAT POS CBL J/BLK |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, L76, L92, LU3) (EXC PPV, 5W4, 9L4) |
2007-2007 |
01 |
| 024 |
21011332 |
|
|
2007-2007 |
01 |
| 025 |
|
BLOCK, BAT POS CBL JUNC (PART OF 4) |
|
2007-2007 |
|
| 026 |
15305191 |
FUSE, 175 AMP MEGA (PART OF 4) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE)
|
2007-2007 |
01 |
|
| 027 |
|
|
|
2007-2007 |
|
