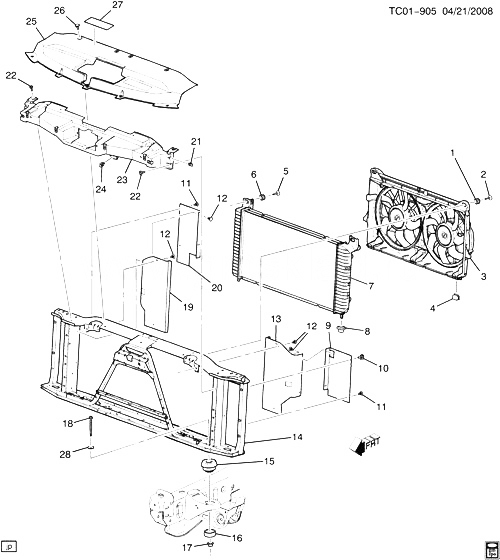

(TC01-905) - 2007-2008 CK1(06-36) КРЕПЛЕНИЕ РАДИАТОРА СОПРЯЖЕННЫЕ ДЕТАЛИ (CADILLAC Z75) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15780790 INSULATOR, ENG COOL FAN SHRD (UPPER) CK1 2007-2009 02
002 11516931 2007-2009 02
003 FAN, ENG COOL (W/ SHRD) ( 2007-2008
004 15780791 INSULATOR, ENG COOL FAN SHRD (LOWER) CK1 2007-2009 03
005 11516931 2007-2009 02
006 INSULATOR, RAD UPR (PART OF 7) 2007-2008
007 RADIATOR, ( 2007-2009
008 89019121 MOUNT, RAD LWR (PART OF 7) CK1 2007-2009 02
009 10392941 BAFFLE, RAD SUPT CK1, 2 (06) (C69) 2007-2009 01
010 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (WRG HARN) 2007-2009 01
011 15958694 RETAINER, RAD SUPT BFL (1LH/4RH) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) CK1, 2 (06) (C69) 2007-2009 05
012 15958694 RETAINER, RAD AIR BFL (PUSH IN) (PART OF 13, 19) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) CK1, 2, 3 2007-2009 AR
013 15208497 BAFFLE, RAD AIR (INCLS 12) CK1, 2 (06-36) (LC9, LMG, LY2, LY5, LY6, L76, L92, LH6, LU3) 2007-2007 01
014 SUPPORT, RAD ( 2007-2009
015 15837581 CUSHION, BODY BOLT UPR FRT (VIOLET) (1.270) CK107 (06) 2007-2009 02
016 15201791 CUSHION, BODY BOLT LWR FRT (71MM OD) CK107, 209 (06) 2007-2009 02
017 03537772 2007-2009 02
018 11562547 2007-2009 02
019 15208496 BAFFLE, RAD AIR (INCLS 12) CK1, 2 (06-36) (LC9, LMG, LY2, LY5, LY6, L76, L92, LH6, LU3) 2007-2007 01
020 10392942 BAFFLE, RAD SUPT CK1, 2 (06) (C69) 2007-2009 01
021 11570097 2007-2009 08
022 11610055 2007-2009 08
023 15904442 BRACKET, RAD GRL UPR (INCLS 21, 24) CK1 (Z75) 2007-2009 01
024 22581725 CLIP, CK1, 2 2007-2009 03
025 25861241 BAFFLE, RAD AIR UPR (INCLS 27) (INCLS LABEL) CK1 (Z75) 2007-2007 01
026 11561878 RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (RAD AIR UPR BFL (PUSH IN)) 2007-2009 06
027 LABEL, A/C REFRIG WRNG (PART OF 25) 2007-2008
028 11562546 WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) 2007-2009 02
