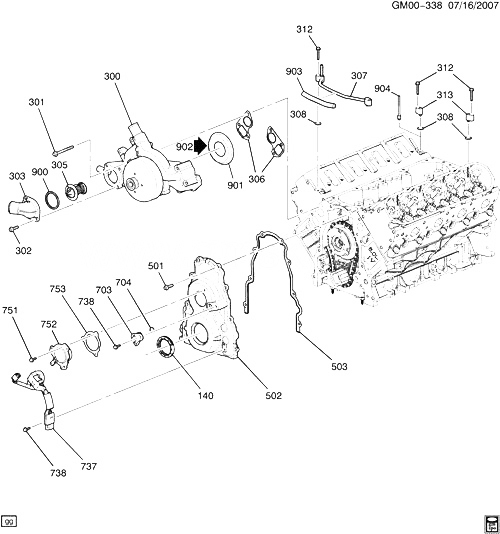

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 140 |
12585673 |
SEAL, CR/SHF FRT OIL (PART OF 502) (0.207) (ACDelco #296-02)
| CK1 (L92) |
2007-2008 |
01 |
|
| 301 |
12551926 |
|
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
06 |
| 302 |
11516480 |
|
CK1 (L92) |
2007-2008 |
02 |
| 303 |
12587395 |
INLET, W/PMP (PART OF 300) (ACDelco #15-10595) |
CK1 (L92) |
2007-2008 |
01 |
| 305 |
89018168 |
THERMOSTAT KIT, ENG COOL (INCL SEAL) (PART OF 300) (INCLS 900) (ACDelco #131-160)
| CK1, 2 (L92) |
2007-2008 |
01 |
|
| 306 |
12559271 |
GASKET, W/PMP (2 OBLONG 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (ACDelco #12559271) |
CK1 (L92) |
2007-2008 |
02 |
| 307 |
12605716 |
PIPE, ENG COOL AIR BL (INCLS 308, 903) |
CK1 (L92) |
2007-2008 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING) (PART OF 307, 313) |
CK1 (L92) |
2007-2008 |
02 |
| 312 |
11514008 |
|
|
2007-2008 |
04 |
| 313 |
|
COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) |
|
2007-2008 |
|
| 313 |
12602540 |
COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) (INCL SEALS) |
CK1 (L92, LY2, LY5) |
2007-2008 |
02 |
| 501 |
11515758 |
|
|
2007-2008 |
08 |
| 502 |
12616491 |
COVER, ENG FRT (INCLS COVER, SEAL, WIRE, JUMPER, BRACKET, GASKET, BOLT, SENSOR, MAGN ET) (INCLS 140, 501, 503, 703, 704, 737, 738, 751-753) |
CK1 (L92) |
2007-2008 |
01 |
| 503 |
12574294 |
GASKET, ENG FRT CVR (PART OF 502)
| CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
|
| 703 |
12591720 |
SENSOR, CM/SHF POSN (PART OF 502) (INCLS 704) (ACDelco #213-3826)
| CK1 (L92) |
2007-2008 |
01 |
|
| 704 |
|
SEAL, CM/SHF POSN SENSOR (PART OF 502, 703) |
|
2007-2008 |
|
| 737 |
|
WIRE, CM/SHF POSN SEN (PART OF 502) |
|
2007-2008 |
|
| 738 |
11588712 |
|
|
2007-2008 |
02 |
| 751 |
11588712 |
|
|
2007-2008 |
03 |
| 752 |
12585995 |
MAGNET, CM/SHF POSN ACTR (PART OF 502) |
CK1 (L92, L76) |
2007-2008 |
01 |
| 753 |
12594339 |
SEAL, CM/SHF POSN ACTR CVR (PART OF 502) |
CK1 (L92) |
2007-2008 |
01 |
| 900 |
12587397 |
SEAL, WAT INL (PART OF 305, 300)
| CK1 (L92) |
2007-2008 |
01 |
|
| 901 |
|
PLUG, W/PMP (PART OF 300) |
|
2007-2008 |
|
| 902 |
89021297 |
ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (PART OF 300)
|
2007-2008 |
AR |
|
| 903 |
12600254 |
HOSE, ENG COOL AIR BL PIPE DPNG (PART OF 307) |
CK1 (L92) |
2007-2008 |
01 |
| 904 |
12602048 |
PLUG, ENG COOL AIR BL (55MM, ALUMINUM) |
CK1 (L92) |
2007-2008 |
02 |
