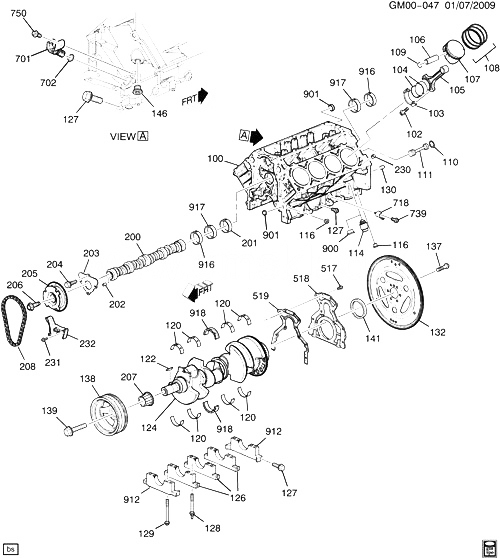

(GM00-047) - 2007-2008 CK1 ДВИГАТЕЛЬ В СБОРЕ-6.2L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ СОПРЯЖЕННЫЕ ДЕТАЛИ (L92/6.2-8) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2007-2008
102 11570662 CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
103 CAP, CONN ROD (PART OF 105) 2007-2008
104 12493712 BEARING KIT, CONN ROD (STD) CK1 (L92) 2007-2008 08
105 12607475 ROD, CONN (INCLS 102, 103, 106) CK1 (L92) 2007-2008 08
106 BUSHING, CONN ROD (PART OF 105) 2007-2008
107 19178595 PISTON, (W/PIN) (INCLS 109) (0.5MM O.S.) CK1 (L92) 2007-2008 08
107 19178597 PISTON, (W/PIN) (INCLS 109) (STD) CK1 (L92) 2007-2008 08
108 89018049 RING KIT, PSTN (STD) CK1 (L92) 2007-2008 08
108 89018050 RING KIT, PSTN (0.5 MM O.S.) CK1 (L92) 2007-2008 01
109 12569638 RETAINER, PSTN PIN (PART OF 107) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2007-2008
111 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (INCLS 110) (1.531) 2007-2008 01
114 12586687 HEATER, ENG COOL (W/2-PIN AND SILVER COLORED) CK1, 2, 3 (L92, K05) 2007-2007 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2007-2009 03
120 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) CK1 (L92) 2007-2008 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
124 12584997 CRANKSHAFT, CK1 (L92) 2007-2008 01
126 CAP, CR/SHF BRG 2007-2008
127 12556127 CK1 (L92) 2007-2008 10
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) CK1 (L92) 2007-2008 10
129 12560272 CK1 (L92) 2007-2008 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2007-2009 02
132 12606620 PLATE, A/TRNS FLEX (AUTO TRANSMISSION) CK1 (L92) 2007-2008 01
137 2007-2008
137 11569956 CK1 (L92) 2007-2008 06
138 12576652 BALANCER, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
139 12557840 CK1 (L92) 2007-2008 01
141 89060436 SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
200 12583227 CAMSHAFT, ENG (INCL PIN) (INCLS 202) (VEHICLES BUILT WITH AFM USE 2ND DESIGN.FOR 1ST DES SEE 12612273) CK1 (L92) (2ND DES) 2007-2007 01
200 12612273 CAMSHAFT, ENG (INCL PIN) (INCLS 202) (VEHICLES BUILT WITHOUT ACTIVE FUEL MANAGEMENT (AFM) USE 1ST DESIGN.FOR 2ND DES SEE 12583227) CK1 (L92) (1ST DES) 2007-2007 01
201 19167218 BEARING, CM/SHF (POSN #3) CK1 (L92) 2007-2007 01
202 24575061 PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
203 12589016 RETAINER, CM/SHF (USE WITH BOLT 11561455) CK1 (L92) 2007-2008 01
204 11561283 2007-2009 04
205 12585994 ACTUATOR, CM/SHF POSN CK1 (L92) 2007-2008 01
206 12588151 VALVE, CM/SHF POSN ACTR SOL CK1 (L92) 2007-2008 01
207 12556582 SPROCKET, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
208 12586482 CHAIN, CM/SHF TMG CK1 (L92) 2007-2008 01
230 12570326 PIN, CYL HD LOC CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 04
231 11515758 2007-2009 02
232 12626407 CK1 (L92) 2007-2008 01
517 12556127 CK1 (L92) 2007-2008 10
518 12615666 CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
519 12593587 GASKET, CR/SHF RR OIL SEAL HSG CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
701 12585546 SENSOR, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) CK1 (L92) 2007-2008 01
702 SEAL, O-RING CR/SHF POSN (PART OF 701) 2007-2008
718 12570125 SENSOR, KNOCK (ACDelco #213-1576) CK1 (L92) 2007-2008 02
750 11515756 2007-2009 01
900 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) 2007-2009 01
901 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2007-2009 01
912 CAP, CR/SHF BRG 2007-2008
916 19167383 BEARING, CM/SHF (POSN #1, 5) CK1 (L92) 2007-2007 02
917 12453167 BEARING, CM/SHF (# 24) CK1 (L92) 2007-2007 02
918 89017572 BEARING KIT, CR/SHF THR (STD) (#3) CK1 (L92) 2007-2008 01
