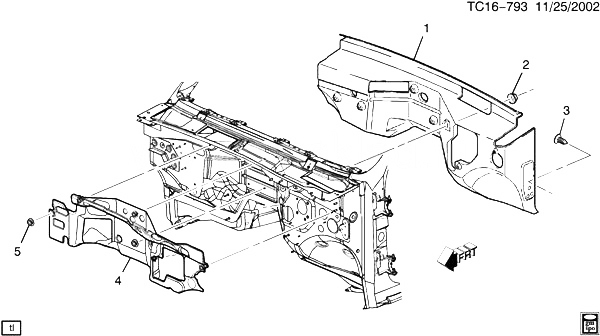

(TC16-793) - 2001-2007 CK INSULATORS/DASH PANEL CADILLAC - ESCALADE (AWD) 2006
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15829509 | INSULATOR, DA PNL (INSIDE) | CK1, 2, 3 | 2006-2007 | 01 |
| 002 | 11609656 | NUT - HEX M5X1.6 SELF THR 1050-1065 CARB SPR STL GMW3359 (DA PNL INSL) | 2001-2007 | 01 | |
| 003 | 15958694 | RETAINER, DA PNL LWR INSL (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)| CK1, 2, 3 |
2001-2007 |
02 |
|
| 004 | 15123405 | INSULATOR, DA PNL (INCLS 5) (ONE PC DSGN ON ENG SI) (INCLS RETAINERS) | CK1, 2 (06) | 2003-2006 | 01 |
| 005 | 15047898 | CK1, 2 | 2002-2007 | 06 |
