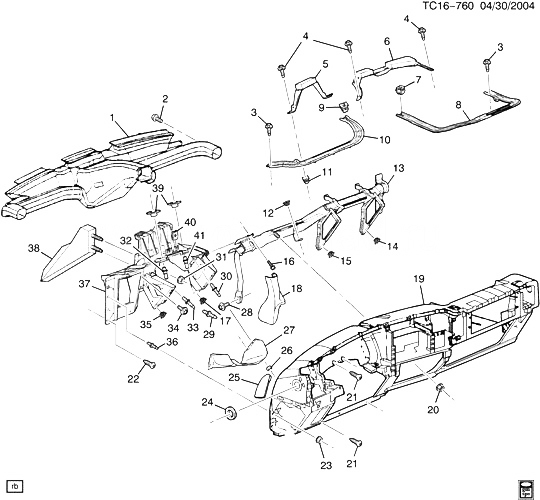

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
DUCT, AIR DISTR ( |
|
2000-2007 |
|
| 002 |
11589012 |
|
|
2000-2007 |
02 |
| 003 |
11609989 |
|
|
2000-2007 |
09 |
| 004 |
11589012 |
|
|
2000-2007 |
04 |
| 005 |
15064666 |
STIFFENER, I/P UPR T/PNL |
CK157 (06) (Z75) |
2003-2006 |
01 |
| 006 |
15078069 |
STIFFENER, I/P UPR T/PNL |
CK1 (06-36) (Z75) |
2002-2006 |
01 |
| 007 |
17988488 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 008 |
15132304 |
BRACKET, I/P UPR (INCLS 7) |
CK1, 2, 3 |
2001-2007 |
01 |
| 009 |
17988488 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 010 |
15916468 |
BRACKET, I/P UPR (INCLS 9) |
CK1, 2, 3 |
2003-2007 |
01 |
| 011 |
17988488 |
|
CK1, 2, 3 |
2001-2007 |
AR |
| 012 |
11570654 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 013 |
15190379 |
SUPPORT, INST CARR (INCLS 12, 14-17, 34, 35, 37) (W/BRKT LOCATOR) |
CK1, 2, 3 |
2003-2007 |
01 |
| 014 |
11570654 |
|
CK1, 2, 3 |
2001-2007 |
02 |
| 015 |
11570654 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 016 |
24503695 |
|
|
2000-2007 |
02 |
| 017 |
11570654 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 018 |
15177880 |
BEZEL, I/P LWR BR (SHALE) |
CK1 (06-36) (15I) |
2002-2006 |
01 |
| 018 |
15177881 |
BEZEL, I/P LWR BR (NEUTRAL) |
CK1, 2 (06) (52I) |
2001-2006 |
01 |
| 018 |
15177882 |
BEZEL, I/P LWR BR (PEWTER) |
CK1, 2 (06) (92I) |
2002-2006 |
01 |
| 019 |
15244446 |
PANEL, INST (INCLS 11) |
CK1, 2, 3 |
2003-2007 |
01 |
| 020 |
11609411 |
|
|
2000-2007 |
01 |
| 021 |
11516845 |
|
|
2000-2007 |
04 |
| 022 |
11589012 |
|
|
2000-2007 |
04 |
| 023 |
11609411 |
|
|
2000-2007 |
04 |
| 024 |
15035304 |
SEAL, SI WDO DEFG OTLT |
CK1, 2, 3 |
2001-2007 |
02 |
| 025 |
15803231 |
FILLER, I/P FRT |
CK1, 2, 3 |
2001-2007 |
01 |
| 025 |
15803232 |
FILLER, I/P FRT |
CK1, 2, 3 |
2001-2007 |
01 |
| 026 |
11609411 |
|
|
2000-2007 |
04 |
| 027 |
15232550 |
DEFLECTOR, I/P DRVR KNEE BOLS |
CK1, 2, 3 |
2003-2007 |
01 |
| 028 |
11609410 |
|
|
2006-2007 |
01 |
| 029 |
11516820 |
STUD-MACHINE SCREW, SPECIAL, RND COLLAR, M10X1.5X51 (PART OF 37) |
|
2000-2007 |
02 |
| 030 |
11516815 |
STUD-FLG, M6X1X10, M6X1X23, 12.7 OD, 6202M, ZP, TR-PT A, P-PT B (PART OF 37) |
|
2000-2007 |
02 |
| 031 |
11516780 |
|
|
2000-2007 |
01 |
| 032 |
11516818 |
STUD-METRIC DOUBLE END ROUND COLLAR, M10X1.5X12.8 (PART OF 37) |
|
2000-2007 |
01 |
| 033 |
11516815 |
STUD-FLG, M6X1X10, M6X1X23, 12.7 OD, 6202M, ZP, TR-PT A, P-PT B (PART OF 37) |
|
2000-2007 |
02 |
| 034 |
11514623 |
|
|
2000-2007 |
02 |
| 035 |
11570654 |
|
CK1, 2, 3 |
2001-2007 |
01 |
| 036 |
11516815 |
STUD-FLG, M6X1X10, M6X1X23, 12.7 OD, 6202M, ZP, TR-PT A, P-PT B (PART OF 37) |
|
2000-2007 |
05 |
| 037 |
15998586 |
SUPPORT, INST CARR (PART OF 13) (INCLS 17, 29, 30, 32-36, 39-41) (W/O BRKT LOCATOR) |
CK1, 2, 3 |
2001-2007 |
01 |
| 038 |
|
BRACE, I/P REINF |
|
2000-2007 |
|
| 039 |
11516819 |
NUT-STAMPED M10 X 1.5 (PART OF 37) |
|
2000-2007 |
02 |
| 040 |
11509755 |
|
|
2000-2007 |
02 |
| 041 |
11516817 |
STUD-METRIC DOUBLE END ROUND COLLAR, M10X1.5X12.5 (PART OF 37) |
|
2000-2007 |
01 |
