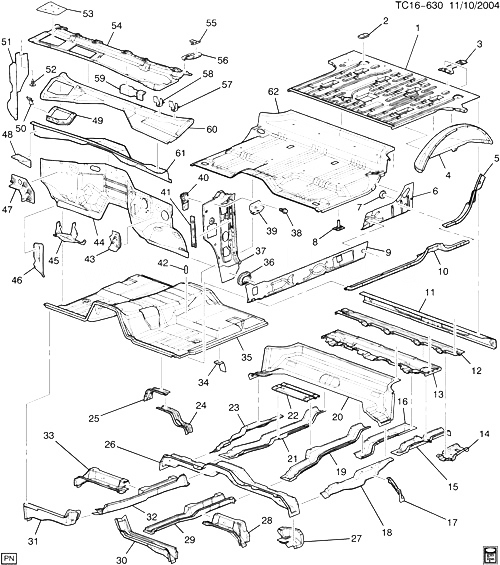

(TC16-630) - 2003-2006 CK157(06) КУЗОВНЫЕ ДЕТАЛИ/НИЖНЯЯ ЧАСТЬ CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15294653 PANEL, R/FLR CK157 (06) 2003-2006 01
002 15630183 PLATE, CARGO TIE DN LOOP ANC (16.715) CK1, 2 (06) 2003-2006 02
003 15753671 PLATE, JK STOW MT CK157 (06) 2003-2006 01
004 15847621 PANEL, RR W/H INR CK1, 2 (06) 2006-2006 02
005 15288880 EXTENSION, INTER FLR PNL CK157 (06) 2003-2006 01
005 15288881 EXTENSION, INTER FLR PNL CK157 (06) 2003-2006 01
006 15243787 PANEL, RKR RR INR CK1, 2 (MSL) 2003-2006 01
006 15243788 PANEL, RKR RR INR (W/NUT) CK1, 2 (MSL) 2003-2006 01
006 15243789 PANEL, RKR RR INR CK157 (06) 2003-2006 01
006 15243790 PANEL, RKR RR INR (LESS STUDS) CK157 (06) 2003-2006 01
007 25652432 PLUG, RKR INR PNL HOLE (35MM DIA) (FITS 25MM HOLE) (ROUND) (12.934) CK1, 2 2003-2006 04
008 15137612 PLATE, TOOL STOW COMPT ANC (1 3/8IN CAP) CK157 (06) 2003-2006 01
009 15827692 PANEL, RKR FRT INR CK1, 2 (06-36) (MSL) 2005-2006 01
009 15827693 PANEL, RKR FRT INR CK1, 2 (06) (MSL, ARL, JAN) 2005-2006 01
009 25982599 PANEL, RKR FRT INR CK1, 2 (06) (ARL, JAN) 2005-2006 01
010 15290494 EXTENSION, FLR PNL (REAR) (INCLS STUD) CK1, 2 (06-36) 2003-2006 01
010 15722524 EXTENSION, FLR PNL (FRT) CK1, 2 (06) 2003-2006 01
010 15766734 EXTENSION, FLR PNL (FRT) CK1, 2 (06) 2003-2006 01
010 25815109 EXTENSION, FLR PNL (RR) (W/STUD) CK1, 2 (06-36) 2003-2006 01
011 15115647 SILL, U/B RR CR CK1, 2 (06) 2003-2006 01
012 15226696 SILL, U/B #5 CR CK157 (06) 2003-2006 01
014 REINFORCEMENT, R/FLR PNL 2003-2006
014 12475422 REINFORCEMENT, R/FLR PNL (OUTER) CK157 (06) 2003-2006 01
015 REINFORCEMENT, R/FLR PNL 2006-2006
015 12475445 REINFORCEMENT, R/FLR PNL (CTR) CK157 (06) 2003-2006 02
016 15154214 REINFORCEMENT, R/FLR PNL FRT (LESS EXH MUFF H/SHLD, WELD STUDY) CK157 (06) 2003-2006 01
016 15154215 REINFORCEMENT, R/FLR PNL FRT CK157 (06) 2003-2006 01
017 15029772 BRACE, INTER FLR PNL CK157 (06) 2003-2006 02
018 15234710 REINFORCEMENT, FLR PNL CK157 (06) 2003-2006 01
019 15722519 REINFORCEMENT, INTER FLR PNL CK157 (06) 2003-2006 01
020 25826963 SILL, U/B #3 CR CK157 (06) 2006-2006 01
020 89025385 SILL, U/B #3 CR CK157 (06) 2006-2006 01
021 15234712 REINFORCEMENT, INTER FLR PNL (INCLS EXH MUFF H/SHLD, WELD STUDY) CK157 (06) 2003-2006 01
022 15234713 REINFORCEMENT, INTER FLR PNL (CENTER) CK157 (06) 2003-2006 01
023 25860799 REINFORCEMENT, FLR PNL CK157 (06) 2003-2006 01
024 15173440 STIFFENER, FLR PNL AT TUN CK1, 2, 3 2003-2006 01
025 15173441 STIFFENER, FLR PNL AT TUN CK1, 2, 3 2003-2006 01
026 25860798 SILL, U/B #2 CR (INCLS 34) CK1, 2 (06-36) 2003-2006 01
027 15102608 BRACKET, BODY MT CK1, 2 (06-36) 2006-2006 01
027 25831425 BRACKET, BODY MT (#2) CK1, 2 (06-36) 2006-2006 01
027 25831426 BRACKET, BODY MT (#2) CK1, 2 (06-36) 2006-2006 01
030 SILL, U/B #1 CR 2006-2006
031 SILL, U/B #1 CR 2006-2006
034 PLATE, F/SEAT RR ANC (PART OF 26) 2003-2006
035 25860800 PANEL, F/FLR (2006 AFTER W/FNF ORDER T/W 15288490) CK1, 2, 3 (FNF) 2006-2006 01
036 15713195 PLUG, RKR INR PNL HOLE (8MM) CK1, 2, 3 2003-2006 02
037 10358299 PANEL, COWL SI (INCLS 41) CK1, 2, 3 2003-2006 01
037 15748190 PANEL, COWL SI (INCLS 41) CK1, 2, 3 2003-2006 01
038 11517164 SCREW, HEX M8X1.25X20 W/CON WA (F/FDR UPR BRKT) 2003-2006 04
039 10359005 BRACKET, F/FDR UPR (COWL SIDE) CK1, 2, 3 2003-2006 01
039 10359006 BRACKET, F/FDR UPR (COWL SIDE) CK1, 2, 3 2003-2006 01
040 15040083 VALVE, PLNM DRN CK1, 2, 3 2003-2006 01
040 15713205 VALVE, PLNM DRN CK1, 2, 3 2003-2006 01
041 15713179 BRACKET, INST CARR (PART OF 37) CK1, 2, 3 2003-2006 01
041 15713180 BRACKET, INST CARR (PART OF 37) CK1, 2, 3 2003-2006 01
042 15734736 STUD, F/SEAT ANC PLT CK1, 2, 3 2003-2006 02
043 15147485 BRACKET, FRT W/H PNL UPR CK1, 2, 3 2003-2006 01
044 PANEL, DA 2003-2006
045 25867232 BRACKET, DA WRG HARN J/BLK CK1, 2, 3 2006-2006 01
046 REINFORCEMENT, DA COWL PNL 2006-2006
047 15727997 BRACKET, BAT TRAY CK1, 2, 3 2003-2006 01
048 15734588 BRACKET, F/FDR RR UPR (FOR BRACE TO PLNM PNL) CK1, 2, 3 2003-2006 01
049 25809428 DEFLECTOR, PLNM LWR PNL WAT (INCLS 50) CK1, 2, 3 (EXC WBZ) 2005-2006 01
050 15607103 RETAINER, PLNM PNL (PART OF 49) (LWR WATER DEFLECTOR) (9.264) CK1, 2, 3 2003-2006 04
051 15165436 INSULATOR, COWL S/PNL (EXTERIOR) (INCLS 52) (INCLS SEAL) CK1, 2, 3 2003-2006 01
051 15165437 INSULATOR, COWL S/PNL (EXTERIOR) (INCLS 52) (INCLS SEAL) CK1, 2, 3 2003-2006 01
052 RETAINER, COWL S/PNL INSL (PART OF 51) 2003-2006
053 15275243 COVER, PLNM UPR PNL OPG (SEAL IS POA) (PAINT TO MATCH) CK1, 2, 3 2003-2006 01
054 15130052 PANEL, PLNM UPR (INCLS 55, 56) CK1, 2, 3 2003-2006 01
055 15058081 RETAINER, I/P UPR T/PNL (PART OF 54, 56) (10.230) CK1, 2, 3 (EXC WBZ) 2005-2006 01
056 15037027 BRACKET, PLNM UPR PNL (PART OF 54) (INCLS 55) CK1, 2, 3 2003-2006 02
058 15713209 BRACKET, BRK ACCEL PED (AT PEDAL) (L=45 W=80 H=80) (DASH PANEL) (0.829) CK1, 2, 3 (EXC WBZ) 2005-2006 01
059 15713181 BRACKET, PLNM LWR PNL CK1, 2, 3 2003-2006 01
060 15134620 PANEL, PLNM LWR CK1, 2, 3 2003-2006 01
060 15134620 PANEL, PLNM LWR CK1, 2, 3 (MSL) (EXPORT) 2006-2006 01
061 15703208 PANEL, PLNM FRT CK1, 2, 3 2003-2006 01
062 15950124 PANEL, INTER FLR CK157 (06) 2003-2006 01
