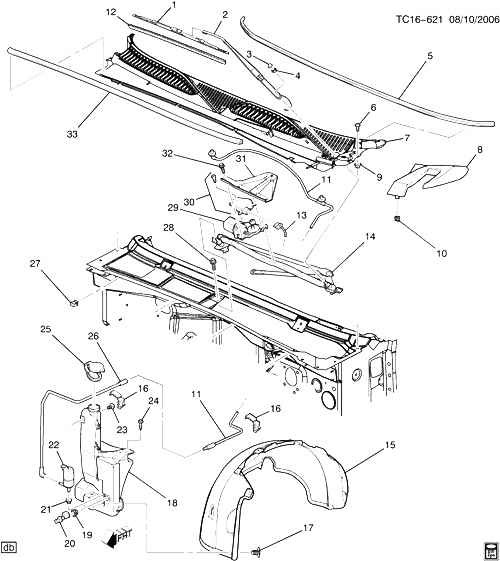

(TC16-621) - 1999-2007 CK WIPER SYSTEM/ВЕТРОВОЕ СТЕКЛО CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10375583 BLADE, WSW CK1, 2, 3 (CD5, PPV) 2005-2006 02
001 15214346 BLADE, WSW (22) CK1, 2, 3 (EXC PPV) 2005-2006 02
002 15829647 ARM, WSW (INCLS PLASTIC CONN FOR WASHER TUBE) (W/NOZZLE) CK1, 2, 3 2003-2007 01
002 15829648 ARM, WSW (INCLS PLASTIC CONN FOR WASHER TUBE) (W/NOZZLE) CK1, 2, 3 2003-2007 01
003 22699534 CAP, WSW ARM FIN (10.147) CK1, 2, 3 2001-2007 02
004 11589150 1999-2007 02
005 15706253 SEAL, CK1, 2, 3 2001-2007 01
006 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (AIR INL GRL PNL) 1999-2007 02
007 15829661 PANEL, AIR INL GRL (CENTER) (INCLS 5, 11, 33) CK1, 2, 3 2001-2007 01
008 15287177 PANEL, AIR INL GRL (END CAP) (INCLS FLAPPER SEAL) CK1, 2, 3 2001-2007 01
008 15287178 PANEL, AIR INL GRL (END CAP) (INCLS FLAPPER SEAL) CK1, 2, 3 (EXC U84) 2002-2007 01
009 11589183 2005-2007 02
010 15965094 CLIP, AIR INL GRL PNL (SILVER) (11 X 13) (16.041) CK1, 2, 3 2001-2007 06
011 12463086 HOSE, WSWA NOZ (PART OF 7) (INCLS TEE) (INCLS CLIP) CK1, 2, 3 2001-2007 01
012 12368668 WIPER, W/S (REFILL) CK1, 2, 3 2001-2007 02
013 HARNESS, I/P WRG ( 1999-2007
014 15812089 MODULE, WSW SYS (INCLS 29, 30) (INCLS TRANSMISSION) (INCLS MOTOR) CK1, 2 2005-2007 01
015 SHIELD, FRT W/H PNL SPH ( 1999-2007
016 10150076 CLIP, CK1, 2, 3 2001-2007 03
017 24501057 RIVET, FRT W/H PNL SPH SHLD (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) CK1, 2, 3 2001-2007 03
018 12487670 CONTAINER, WSWA SOLV (ALSO REQ INDICATOR 12494846) CK1, 2 (LU3, YE9) (EXC JJG) 2004-2007 01
018 12487670 CONTAINER, WSWA SOLV (ALSO REQ INDICATOR 12494846) CK1, 2 (LM7, P96, YE9) (EXC C25, JJG) (EXPORT) 2005-2006 01
018 12487670 CONTAINER, WSWA SOLV (ALSO REQ INDICATOR 12494846) CK1, 2 (LBZ, LLY, LM7, LQ4, LQ9, LR4, L18) (EXC C25, JJG, P96) 2006-2006 01
018 12487670 CONTAINER, WSWA SOLV (ALSO REQ INDICATOR 12494846) CK1, 2, 3 (EXC C25) 2006-2006 01
019 12494847 SEAL, WSWA SOLV LVL SW CK1, 2, 3 2001-2007 01
020 12494846 INDICATOR, WSWA SOLV LVL CK1, 2, 3 2001-2007 01
021 22039457 GROMMET, WSWA SOLV CNTNR (PART OF 22) (18MM) (10.153) CK1, 2, 3 2001-2007 01
022 PUMP, WSWA (INCLS 21) 2001-2007
023 11609989 1999-2007 03
024 11516578 1999-2007 01
025 25731418 CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154) CK1, 2, 3 2001-2007 01
026 12487672 HOSE, WSWA PUMP CK1, 2, 3 2001-2007 01
027 15999788 RETAINER, AIR INL GRL PNL (U-SHAPED/CLIP) CK1, 2, 3 2001-2007 04
028 11516569 1999-2007 03
029 88958406 MOTOR, WSW (PART OF 14) (ACDelco #88958406) CK1, 2 2005-2007 01
030 88958407 COVER KIT, WSW MOT (W/CIRC BD) (PART OF 14) (ACDelco #88958407) CK1, 2 2005-2007 01
031 15207978 REINFORCEMENT, PLNM PNL CTR UPR CK1, 2, 3 2004-2007 01
032 11516569 1999-2007 03
033 15068269 SEAL, CK1, 2, 3 2001-2007 01
