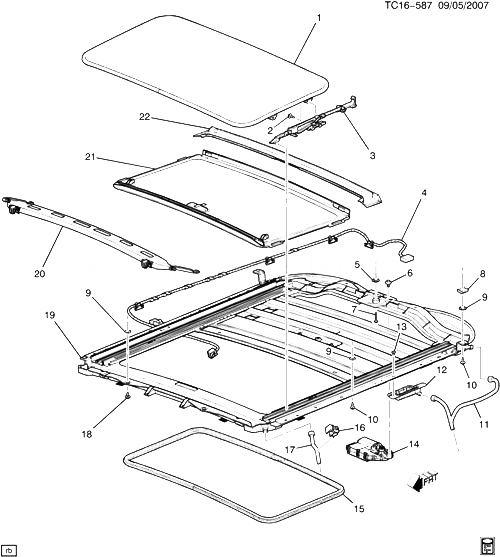

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15008766 |
WINDOW, SUN RF (INCLS SEAL) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 002 |
11518826 |
SCREW, PAN W/WASH 6-LOBED, M5X0.8X16, 13.5 THD, 9.8 (SUN RF WDO) |
|
2005-2006 |
04 |
| 003 |
88979948 |
GUIDE KIT, SUN RF PNL/WDO (PART OF 19) (INCLS LH RH GUIDES)
| CK1, 2 (06) (CF5) |
2005-2006 |
01 |
|
| 004 |
15059587 |
HARNESS, SUN RF WRG (CONNECTS TO SUN RF SW ACTR MOTOR) (PART OF 19) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 005 |
10159218 |
RETAINER, SUN RF PNL/WDO W/STR (PART OF 19) (5 1/8 X 19 X 1/4) (8.141) |
CK1 (06-36) (CF5) |
2005-2006 |
01 |
| 006 |
11516578 |
|
|
2005-2006 |
02 |
| 007 |
11610001 |
|
CK1, 2 (06) |
2005-2006 |
01 |
| 008 |
11518121 |
|
|
2005-2006 |
03 |
| 009 |
14093869 |
|
|
2005-2006 |
10 |
| 010 |
11561674 |
|
|
2005-2006 |
08 |
| 011 |
15754106 |
HOSE, SUN RF HSG RR DRN (INCLUDES GROMMET) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 011 |
15754107 |
HOSE, SUN RF HSG RR DRN (INCLUDES GROMMET) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 012 |
|
BRACKET, SUN RF HSG RR DRN HOSE (PART OF 19) |
|
2006-2006 |
|
| 013 |
|
RIVET, SUN RF HSG RR DRN HOSE BRKT (PART OF 19) |
|
2006-2006 |
|
| 014 |
15224754 |
MOTOR, SUN RF ACTR (PART OF 19) |
CK1, 2 (06-36) (CF5) |
2006-2006 |
01 |
| 015 |
15011985 |
MOLDING, SUN RF PNL/WDO GARN (PEWTER) |
CK157 (06) (CF5, Y91, Z75, 92I) |
2005-2006 |
01 |
| 015 |
15044263 |
MOLDING, SUN RF PNL/WDO GARN (SHALE)
| CK157 (06) (CF5, 15I, 52I) |
2005-2006 |
01 |
|
| 015 |
15044263 |
MOLDING, SUN RF PNL/WDO GARN (SHALE)
| CK157 (06) (CF5, Y91, Z88, 92I) |
2005-2006 |
01 |
|
| 016 |
|
CLIP, SUN RF HSG FRT DRN HOSE (PART OF 17) |
|
2006-2006 |
|
| 017 |
15055866 |
HOSE, SUN RF HSG FRT DRN (INCLS 16) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 017 |
15055867 |
HOSE, SUN RF HSG FRT DRN (INCLS 16) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
| 018 |
11518826 |
SCREW, PAN W/WASH 6-LOBED, M5X0.8X16, 13.5 THD, 9.8 (PART OF 19) |
|
2005-2006 |
04 |
| 019 |
19120488 |
MODULE, SUN RF (3-7, 9, 10, 12-14, 18, 20, 22) (INCLS DEFLECTOR) (LESS GLASS, |
CK157 (06) (CF5) (EXC U42) |
2006-2006 |
01 |
| 019 |
19120490 |
MODULE, SUN RF (3-7, 9, 10, 12-14, 18, 20, 22) (INCLS DEFLECTOR) (LESS GLASS, |
CK157 (06) (CF5, U42) |
2005-2006 |
01 |
| 020 |
|
DEFLECTOR, SUN RF AIR (PART OF 19) |
|
2006-2006 |
|
| 021 |
15249494 |
|
CK1 (06) (CF5, Z75, 92I) |
2006-2006 |
01 |
| 021 |
15249495 |
|
CK1, 2 (06) (CF5, 15I) (EXC ULT) |
2006-2006 |
01 |
| 021 |
15249495 |
|
CK1, 2 (06) (CF5, 52I) |
2006-2006 |
01 |
| 022 |
88944296 |
GUTTER, SUN RF HSG DRN (PART OF 19) (16.585) |
CK1, 2 (06) (CF5) |
2005-2006 |
01 |
