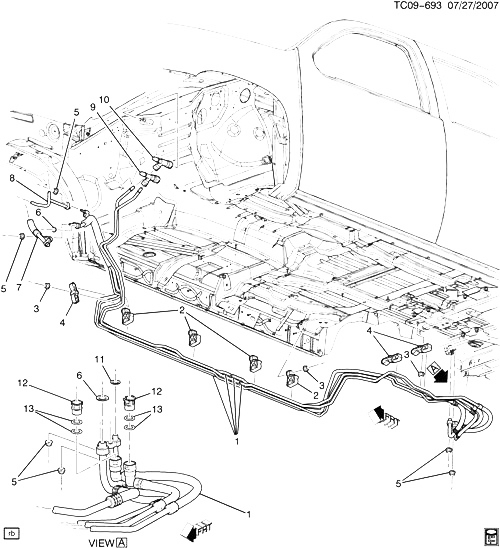

(TC09-693) - 2005-2006 CK1,2(06) ШЛАНГИ И ТРУБКИ /ВСПОМОГАТЕЛЬНЫЙ ОБОГРЕВАТЕЛЬ (C36) CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89024918 HOSE, AUX A/C EVPR AUX HTR (INCLS 2, 4, 9-13) (9.225) (ACDelco #15-33434) (W/TUBE DIA OF 17 MM AT THE ORIFICE, FOR 1ST DES SEE 89024927) CK157 (06) (CJ2, CJ3, C36, C69) (2ND DES) 2006-2006 01
001 89024927 HOSE, AUX A/C EVPR AUX HTR (INCLS 2, 4, 9-13) (ACDelco #15-33480) (W/TUBE DIA OF 13 MM AT THE ORIFICE, FOR 2ND DES SEE 89024918) CK157 (06) (CJ2, CJ3, C36, C69) (1ST DES) 2006-2006 01
002 15102168 CLIP, AUX A/C EVPR HOSE (PART OF 1) (2X2 PLASTIC) (SLOT ON SIDE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) CK1, 2 (06) 2005-2006 04
003 11609411 2005-2006 07
004 15102169 CLIP, AUX A/C EVPR HOSE (PART OF 1) (SLOT IN MIDDLE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) CK1, 2 (06) 2005-2006 03
005 11514596 2005-2006 04
006 02724966 SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID) (3/4 INCH DIA) (PART OF 1) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) CK1, 2, 3 2005-2006 AR
007 15134460 HOSE, A/C ACCUM (CODE 5473, 3766, 4460) ( CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3, C69) (1ST DES) 2006-2006 01
007 15200864 HOSE, A/C ACCUM (CODE 5473, 3766, 4460) ( CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3, C69) (2ND DES) 2006-2006 01
008 15785057 TUBE, A/C EVPR ( CK1 (06) (CJ2, CJ3, C69) 2006-2006 01
009 15055343 TEE, AUX HTR INL HOSE (PART OF 1) (NATURAL) (111MM LONG) CK1, 2 (06) (C36, C60, C68, C69) 2005-2006 01
010 15055342 TEE, AUX HTR INL HOSE (PART OF 1) (BLACK) (113MM LONG) CK1, 2 (06) (C36, C60, C68, C69) 2005-2006 01
011 52474373 SEAL, A/C EVPR TUBE (PART OF 1) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) CK1, 2 (06) (CJ2, CJ3, C36, C69) 2005-2006 01
012 19130031 RETAINER KIT, AUX HTR INL OTLT HOSE CONN (INCLS 13) (PART OF 1) (INCL RETAINER, SEAL, SPACER, INSTRUCTION) CK1, 2, 3 (C36, C69) 2005-2006 01
013 SEAL, HTR INL OTLT PIPE (O/RING) (PART OF 1, 12) 2005-2006
