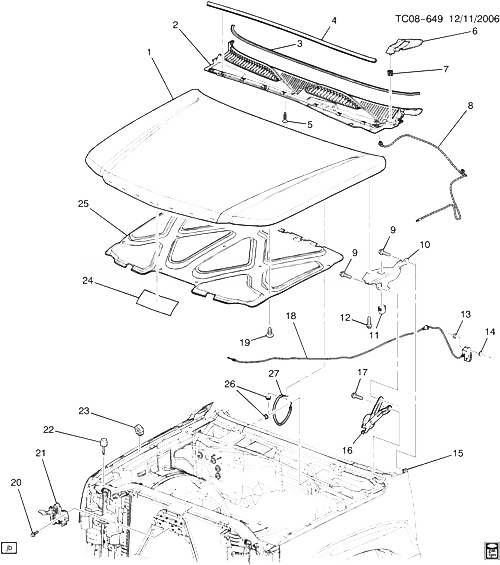

(TC08-649) - 2004-2006 CK1 КАПОТ (CADILLAC Z75) CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88948584 HOOD, (INCLS 24) (INCLS STRIKER) (W/O HINGES) CK157 (06) (Z75) 2003-2006 01
002 15829661 PANEL, AIR INL GRL (CENTER) (INCLS 3-5, 8) CK1, 2, 3 2003-2006 01
003 15706253 SEAL, CK1, 2, 3 2003-2006 01
004 15068269 SEAL, CK1, 2, 3 2003-2006 01
005 15048061 RETAINER, AIR INL GRL PNL (PART OF 2) (PUSH IN) CK1, 2, 3 2003-2006 01
006 15287177 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 2003-2006 01
006 15287178 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 (EXC U84) 2003-2006 01
006 15287179 PANEL, AIR INL GRL (END CAP) (INCLS 7) CK1 (U84) 2003-2006 01
007 15965094 CLIP, AIR INL GRL PNL (PART OF 6) (SILVER) (11 X 13) (16.041) CK1, 2, 3 2003-2006 06
008 12463086 HOSE, WSWA NOZ (PART OF 2) (INCLS TEE) (INCLS CLIP) CK1, 2, 3 2003-2006 01
009 15054178 2003-2006 02
010 12472769 HINGE, HOOD CK1, 2, 3 2003-2006 01
010 12472770 HINGE, HOOD CK1, 2, 3 2003-2006 01
011 15033232 BUMPER, CK1, 2, 3 2003-2006 AR
012 11570082 2003-2006 02
013 11516780 2003-2006 01
014 11500324 WASHER, M10X 2.5 THK PHOS (HOOD PRIM LAT REL CBL BRKT) (ACDelco #11500324) 2003-2006 01
015 11516780 2003-2006 02
016 15035591 CK1, 2, 3 2003-2006 01
016 15035592 CK1, 2, 3 2003-2006 01
017 15054178 2003-2006 02
018 15142953 CABLE, CK1, 2, 3 2003-2006 01
019 22718305 RETAINER, 25 DIA HEAD, 23 OVERALL LENGTH, FITS 7MM DIA HOLE, NYLON 6/6 (HOOD INSL) 2003-2006 09
020 11589039 2003-2006 03
021 15756432 LATCH, CK157, 2 (06) 2004-2006 01
022 11588868 SCREW, BUTTON HEAD, M6X1X46, 34 THD, 17 O.D., 9.8, GM6173M, BLACK (HOOD ADJ FRT) 2003-2006 02
023 15073544 BUMPER, CK1 (Z75) 2003-2006 02
024 15097890 REINFORCEMENT, CK1, 2, 3 (Z75) 2003-2006 01
025 15195194 INSULATOR, HOOD CK1 (06-36) (LQ9, Z75) 2006-2006 01
026 11609411 2003-2006 02
027 15179982 STRAP, BODY STATIC GND CK1 2004-2006 01
