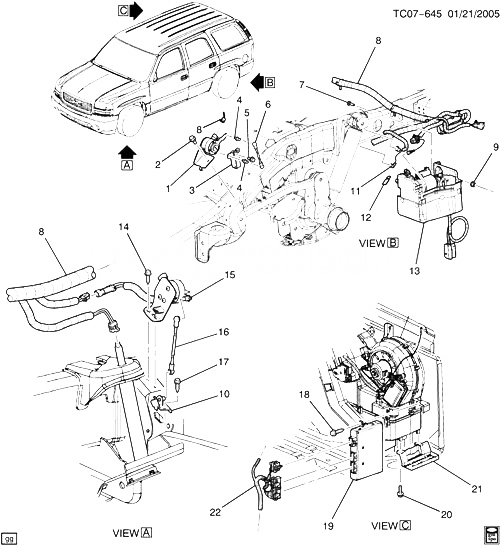

(TC07-645) - 2001-2006 CK1(06) ЭЛЕКТРОННОЕ УПРАВЛЕНИЕ ПОДВЕСКОЙ (Z55) CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15128648 SENSOR, ELEK SUSP RR POSN (INCLS 3, 4, 6) CK1 (06-36) (Z55) 2005-2006 01
001 15128649 SENSOR, ELEK SUSP RR POSN (INCLS 3, 4, 6) CK1 (06-36) (Z55) 2005-2006 01
002 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) 2001-2006 02
003 22189896 BRACKET, ELEK SUSP FRT POSN SEN (PART OF 1) (ELEK SUSP RR POSN) CK1 (06-36) (Z55) 2002-2006 01
003 22189897 BRACKET, ELEK SUSP RR POSN SEN (PART OF 1) (ELEK SUSP RR POSN) CK1 (06-36) (Z55) 2002-2006 01
004 STUD, ELEK SUSP RR POSN SEN LINK BALL (PART OF 1) 2001-2006
005 11515755 2001-2006 02
006 15815642 LINK, ELEK SUSP RR POSN SEN (PART OF 1) CK1 (06-36) (Z55) 2002-2006 02
007 SCREW, MODULE RETAINER (PART OF 13) 2001-2006
008 HARNESS, CHAS WRG ( 2001-2006
009 2001-2006
010 22189894 BRACKET, ELEK SUSP FRT POSN SEN (PART OF 15) (ELEK SUSP FRT POSN) CK1 (06-36) (Z55) 2002-2006 01
010 22189895 BRACKET, ELEK SUSP FRT POSN SEN (PART OF 15) (ELEK SUSP FRT POSN) CK1 (06-36) (Z55) 2002-2006 01
011 88987900 TUBE, RR S/ABS AIR (PART OF 8) (INCLS 12) CK1 (06) (Z55) 2001-2006 01
012 01627989 RETAINER, AUTO LVL CONT AIR CMPR TUBE (PART OF 11) (7.346) CK1 (06) (Z55) 2001-2006 06
013 15254590 CK1 (06-36) (G69, Z55) 2002-2006 01
014 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) 2001-2006 02
015 15128630 SENSOR, ELEK SUSP FRT POSN (INCLS 10, 16) CK1 (06-36) (Z55) 2005-2006 01
015 15128631 SENSOR, ELEK SUSP FRT POSN (INCLS 10, 16) CK1 (06-36) (Z55) 2005-2006 01
016 22189721 LINK, ELEK SUSP FRT POSN SEN (PART OF 15) CK1 (06-36) (Z55) 2002-2006 02
017 11517517 2001-2006 02
018 11589015 2001-2006 02
019 15189546 MODULE, ELEK SUSP CONT K1, 2 (06-36) (Z55) 2005-2006 01
020 11609461 2001-2006 02
021 15038410 BRACKET, ELEK SUSP CONT MDL CK157 (06) (Z55) 2001-2006 01
022 HARNESS, BODY WRG ( 2001-2006
