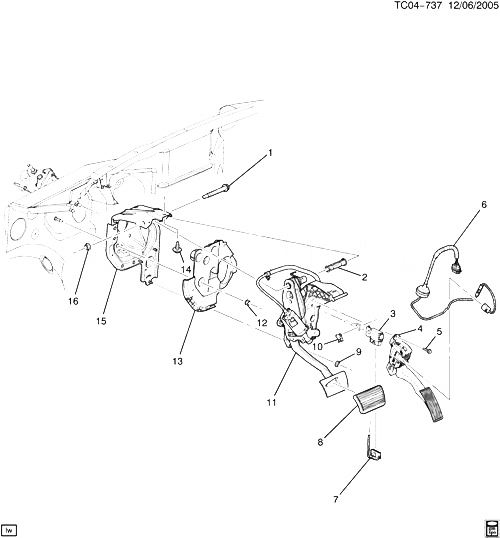

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15000145 |
|
CK1, 2, 3 |
2006-2006 |
01 |
| 002 |
15157907 |
BUSHING, BRK PED PIV (PART OF 11) |
CK1 |
2006-2006 |
01 |
| 003 |
15128592 |
SWITCH, S/LP (ACDelco #D1583G) |
CK1, 2 (JF4) |
2006-2006 |
01 |
| 004 |
15107594 |
PEDAL, ACCEL (PART OF 11) ( |
CK1, 2, 3 (LQ4, LQ9, L59, LM7, L33, LR4, L18) |
2006-2006 |
01 |
| 005 |
11516424 |
|
|
2006-2006 |
02 |
| 007 |
|
HARNESS, CLU PED POSN SW WRG ( |
|
2006-2006 |
|
| 008 |
88982976 |
PAD, BRK PED |
CK1, 2 (06) (AN3, JF4) |
2006-2006 |
02 |
| 009 |
11609411 |
|
CK1, 2, 3 |
2006-2006 |
02 |
| 010 |
15048329 |
RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) |
CK1, 2, 3 |
2006-2006 |
01 |
| 011 |
15861901 |
PEDAL, BRK ACCEL (W/BRKT) (INCLS 1, 2, 4, 5, 6, 9, 15, 16) (4.625) |
CK1, 2 (06-36) (AN3, JF4, JH2, JH6, JH7) |
2006-2006 |
01 |
| 011 |
15861901 |
PEDAL, BRK ACCEL (W/BRKT) (INCLS 1, 2, 4, 5, 6, 9, 15, 16) |
CK1, 2 (06-36) (AN3, JF4, JH2, JH6, JH7) |
2006-2006 |
01 |
| 012 |
11517996 |
|
CK1, 2, 3 |
2006-2006 |
04 |
| 013 |
|
INSULATOR, DA PNL (PART OF 15) |
|
2006-2006 |
|
| 014 |
11517182 |
|
CK1, 2, 3 |
2006-2006 |
01 |
| 016 |
11514598 |
|
|
2006-2006 |
AR |
