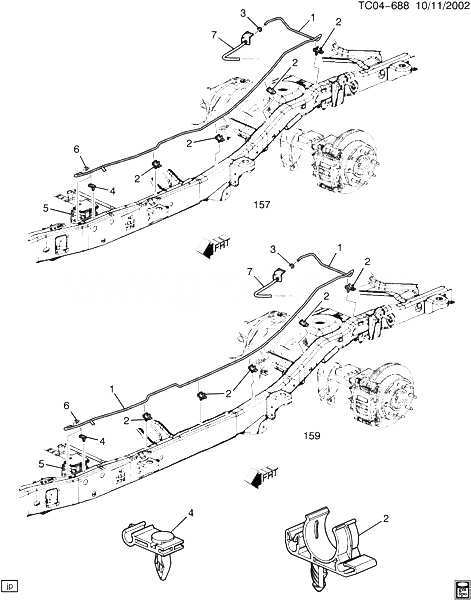

(TC04-688) - 2003-2006 CK1(06-36) ТОРМОНЫЕ МАГИСТРАЛИ/INTERMEDIATE (EXC ACTIVE BRAKE JL4) CADILLAC - ESCALADE (AWD) 2006
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 12548430 | TUBING, BRK, 1/4 X 16 FT ROLL, STL (RR BRK FRT) | 2003-2006 | 01 | |
| 002 | 15175038 | CLIP, RR BRK FRT PIPE | CK157 (06) (EXC JL4) | 2003-2006 | 04 |
| 003 | 11588804 | NUT-TUBE, 7/16-24X0.36, 0.30 THD, 0.56 LONG, 1/4 TUBE, SAE 1008 STL, GMW (RR BRK FRT PIPE) | 2006-2006 | 01 | |
| 004 | 15030049 | CLIP, RR BRK FRT PIPE (GRAY) (PUSH PIN 1 HOLE OPEN) | CK157 (06) (EXC JL4) | 2003-2006 | 01 |
| 005 | MODULE, ELEK BRK CONT ( | 2003-2006 | |||
| 006 | 11588803 | CK1, 2, 3 | 2003-2006 | 01 | |
| 007 | PIPE, RR BRK C/OVR ( | 2003-2006 |
