| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

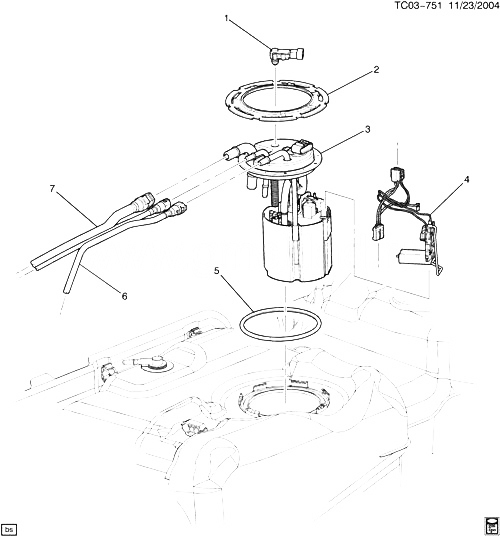

| 001 |
16238399 |
SENSOR, F/TNK PRESS (*KIT1) (ACDelco #16238399)
| CK157 (06) (LM7, LQ4, LQ9, LR4) |
2005-2006 |
01 |
|
| 002 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| CK1, 2, 3 |
2004-2006 |
01 |
|
| 003 |
|
MODULE KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (*KIT1) |
|
2004-2006 |
|
| 003 |
|
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (*KIT1) |
|
2004-2006 |
|
| 004 |
19168130 |
SENSOR KIT, FUEL LVL (IF MODULE RESERVOIR ASM HAS FUEL LEVEL SENSOR POSITIONED SIDE TO SIDE USE FUEL LEVEL SENSOR KIT 19207717.) (INCLS 5) (*KIT1) (ACDelco #19168130) |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 004 |
19207717 |
SENSOR KIT, FUEL LVL (INCLS 5) (CONTAINS 2 FUEL LEVEL SENSORS, BOTH STYLES) (*KIT1) (ACDelco #SK1265) |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 005 |
15034832 |
SEAL, FUEL SDR (O RING) (PART OF 4) (*KIT1) (ACDelco #G30)
| CK1, 2 |
2004-2006 |
01 |
|
| 005 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 4) (135.5 MM ID X 147.5MM OD X 6MMTALL) (*KIT1) (ACDelco #G41)
| CK1, 2, 3 (LLY, LM7, LQ4, LQ9, LR4, L18) |
2004-2006 |
01 |
|
| 006 |
|
HOSE, FUEL FEED (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
| 007 |
|
HOSE, EVAP EMIS (СМ. ГРУППУ 03.000 УГОЛЬНЫЙ ФИЛЬТР СОПРЯЖЕННЫЕ ДЕТАЛИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
| K01 |
19207716 |
MODULE KIT, F/TNK F/PMP (INCLS 1, 3-5) (INCLUDES FUEL LEVEL SENSOR) (ACDelco #MU1639)
| CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
|
| K01 |
19207716 |
MODULE KIT, F/TNK F/PMP (INCLS 1, 3-5) (INCLUDES FUEL LEVEL SENSOR) (3.107) (ACDelco #MU1639)
| CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
|
