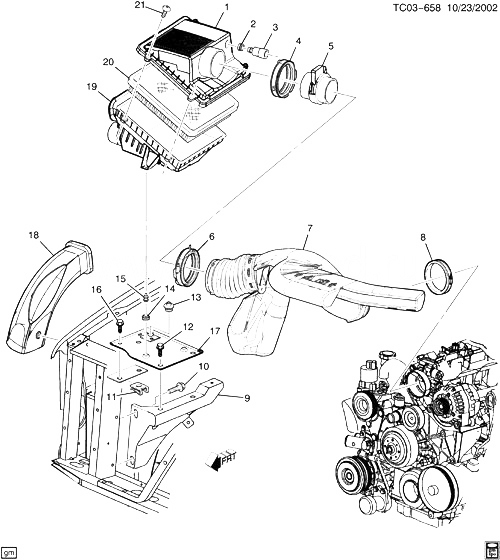

(TC03-658) - 2005-2007 CK СИСТЕМА ВПУСКА ВОЗДУХА (LR4/4.8V,LM7/5.3T,L33/5.3B,L59/5.3Z,LQ4/6.0U,LQ9/6.0N) CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25873812 CLEANER, AIR (INCLS 2, 3, 13, 15, 19-21) (REMOVAL OF RESTRICTION INDICATOR AND GROMMET.DOES NOT EFFECT FIT/FORM FUNCTION) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59, K47) 2005-2007 01
002 25178714 GROMMET, A/CL AIR RSTN IND (PART OF 1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, K47) 2001-2007 01
002 25178714 GROMMET, A/CL AIR RSTN IND (PART OF 1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L59, K47) 2001-2007 01
002 25178714 GROMMET, A/CL AIR RSTN IND (PART OF 1) CK1 (L33, K47) 2005-2007 01
003 15073765 INDICATOR, A/CL AIR RSTN (PART OF 1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59, K47) 2006-2007 01
004 25171042 ADAPTER, MASS AIRFLOW SEN INL CK1, 2, 3 2001-2007 01
005 15904068 SENSOR, MASS AIRFLOW (INCLS AIR TEMP SENSOR) (ACDelco #213-4160) CK1, 2, 3 (LM7, LQ4, LR4, L18, L31, L35, LU3, L59, LQ9, L33) 2005-2006 01
007 15060999 DUCT, A/CL OTLT RR (INCLS 6, 8) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) 2002-2006 01
009 15066121 SUPPORT, A/CL CK1, 2, 3 2001-2007 01
010 11516424 БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/CL ADAP SUPT) 2001-2007 02
011 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (A/CL BRKT) 2001-2007 02
012 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/CL ADAP) 2001-2007 02
013 25316546 FASTENER, A/CL (PART OF 1) CK1, 2, 3 (LM7, LQ4, LR4, L18, L59, LQ9) 2003-2007 01
014 25346092 INSULATOR, A/CL BRKT (PART OF 17) (3.270) CK1, 2, 3 2001-2007 02
015 25099299 RETAINER, A/CL (PART OF 1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L59, L33) 2005-2007 02
016 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (A/CL ADAP) 2001-2007 03
017 25872321 BRACKET, A/CL ADAP (INCLS TWO GROMMETS) (INCLS 14) (DIESEL NOT STAMPED ON PART) CK1, 2, 3 2001-2007 01
019 ШЛАНГИ, A/CL (PART OF 1) 2005-2007
020 25313349 ELEMENT, A/CL (PART OF 1) (ACDelco #25313349) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59, K47) 2005-2006 01
021 11508128 SCREW, M6X1X30, 11 THD, 12.5 OD, 4.8, 6047M, P-PT (PART OF 1) 2001-2007 04
021 11561933 БОЛТ, A/CL HSG CVR (PART OF 1) 2001-2007 04
