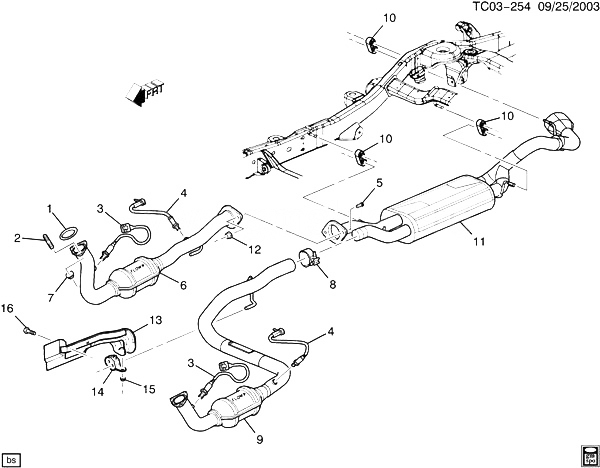

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15077362 |
SEAL, EXH MANIF PIPE
| K1, 2, 3 (LQ4, LQ9, L18, L31) |
2003-2006 |
02 |
|
| 002 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE)
|
2001-2006 |
06 |
|
| 003 |
12572705 |
SENSOR, HTD OXY (POSN 2) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-1161)
| K1, 2, 3 (LQ4, LQ9, L18) |
2003-2006 |
02 |
|
| 004 |
19210711 |
SENSOR, HTD OXY (POSN 3) (POST CONVERTER) |
CK1 (03-06-36-53) (LQ4, LQ9, LU3) |
2006-2006 |
02 |
| 005 |
15028620 |
STUD, EXH PIPE (PART OF 11) (M10X1.5X30MM) (BUTTON HEAD)
| K1 (06-36-53) (LQ4, LQ9) |
2003-2006 |
02 |
|
| 006 |
10395213 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) |
CK1 (06-36-53) (LQ4, LQ9) |
2005-2006 |
01 |
| 007 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2001-2006 |
06 |
|
| 008 |
15103174 |
CLAMP, EXH PIPE (PART OF 11) (STAMPED 2.5) (63.5MM)
| CK157 (LQ4, LQ9) |
2003-2006 |
01 |
|
| 009 |
10395214 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685)
| CK1 (06-36-53) (LQ4, LQ9) |
2005-2006 |
01 |
|
| 009 |
10395214 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE)
| CK1 (06-36-53) (LQ4, LQ9) |
2005-2006 |
01 |
|
| 010 |
15092802 |
INSULATOR, EXH MUFF HNGR
| K1, 2, 3 |
2001-2006 |
04 |
|
| 011 |
10398387 |
MUFFLER, EXH (W/EXH PIPE TAIL PIPE) (INCLS 5, 8)
| CK157 (06) (LQ4, LQ9, Y91) (EXC ANU, N12) |
2005-2006 |
01 |
|
| 012 |
15709703 |
ГАЙКА, EXH MUFF (HEX 10X1.5 THD) (NON-LUBRICATED) (8.915)
| K1, 2, 3 |
2001-2006 |
AR |
|
| 013 |
15860242 |
BRACKET, EXH PIPE HNGR (INCLS 14, 15) |
CK1 (LQ4, LQ9, M32, M70) |
2006-2006 |
01 |
| 014 |
15860245 |
INSULATOR, EXH PIPE HNGR (PART OF 13) |
CK1, 2, 3 (LQ4, LQ9, LLY, L18, L31) |
2006-2006 |
01 |
| 015 |
15709703 |
ГАЙКА, EXH PIPE HNGR INSL RET (PART OF 13) (HEX 10X1.5 THD) (NON-LUBRICATED) (8.915)
| K1, 2, 3 |
2001-2006 |
02 |
|
| 016 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (EXH PIPE HNGR BRKT) (T/W 12345493 REPLCS 25534835)
|
2001-2006 |
02 |
|
