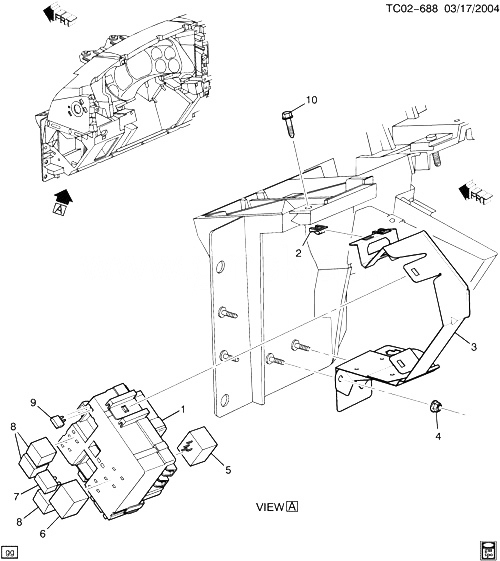

(TC02-688) - 2003-2006 CK1,2,3 BLOCK-I/P BEC CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15266954 BLOCK, FUSE CK1, 2, 3 (5B5) 2003-2006 01
001 15266954 BLOCK, FUSE CK1, 2, 3 (YE9) 2003-2006 01
002 11516993 ГАЙКА, M4.2X1.41 (I/P WRG HARN FUSE BLK BRKT) 2003-2006 02
003 15900326 BRACKET, FUSE BLK CK1, 2, 3 2005-2006 01
004 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (DA WRG HARN FUSE BLK BRKT) 2003-2006 02
005 10383320 FLASHER, HAZARD LP T/SIG LP CK1, 2, 3 (BAG, VR4) (EXPORT) 2003-2006 01
005 10383320 FLASHER, HAZARD LP T/SIG LP (2.575) CK1, 2, 3 (BAG, VR4) (EXPORT) 2003-2006 01
005 10383321 FLASHER, HAZARD LP T/SIG LP CK1, 2, 3 (EXC 8H9) 2004-2006 01
005 10383321 FLASHER, HAZARD LP T/SIG LP (2.575) CK1, 2, 3 (EXC 8H9) 2004-2006 01
005 11516051 FLASHER, HAZARD LP T/SIG LP (ACDelco #11516051) K1 (06) (T79) (EXPORT) 2003-2006 01
005 11516051 FLASHER, HAZARD LP T/SIG LP (2.575) (ACDelco #11516051) K1 (06) (T79) (EXPORT) 2003-2006 01
006 19115080 RELAY, RR FOG LP (CODE 8567) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2003-2006 01
007 12088575 BREAKER, CIRCUIT, 25AMP, WHITE (CIRC) 2003-2006 01
008 19115082 RELAY, DR LK (DOOR LOCK UNLOCK, 5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (STDT 280 MICRO) (1.055) (ACDelco #15-50448) CK1, 2 (06-43) (YE9, 5B5) 2004-2006 02
009 12092075 FUSE, MINI (30A) (GREEN) (MINI 25 A) (ACDelco #12092075) 2003-2006 01
009 12092079 FUSE, 10A, MINI, RED (MINI 10 A) 2003-2006 15
009 88909754 FUSE, 15A, MINI, BLUE (MINI 15 A) (ACDelco #ATM15-25) 2003-2006 07
009 88909755 FUSE, 20A, MINI, YELLOW (MINI 20 A) (ACDelco #ATM20-25) 2003-2006 02
009 88909756 FUSE, 25A, MINI, CLEAR (MINI 25 A) (ACDelco #ATM25-25) 2003-2006 02
010 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (FUSE BLK) (9.665) 2003-2006 02
