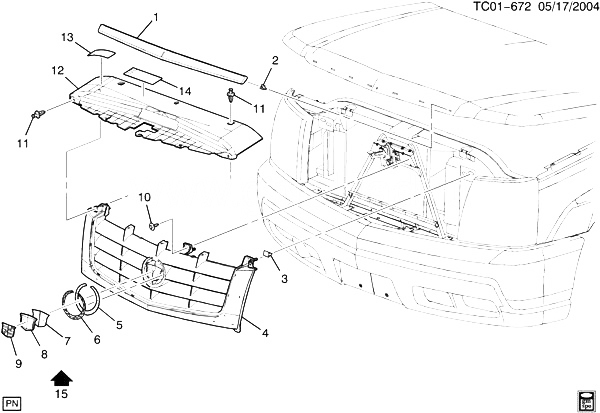

(TC01-672) - 2005-2006 K1(06) РЕШЕТКА РАДИАТОРА (CADILLAC Z75, PLATINUM/COLLECTOR EDITION ULT,WSD) CADILLAC - ESCALADE (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15136011 MOLDING, КАПОТ FRT (INCLS 2) K1 (06-36) (Y91, Z75) 2004-2006 01
002 11609549 CLIP, TRIM, 13X12X14.4, 0.63 ПРУЖИНА STL, GM6173 BLACKI (PART OF 1) 2004-2006 07
003 15078238 RETAINER, RAD GRL (PART OF 4) (BLACK) (25X15.5) (ALSO REPLACES SILVER) K1, 2, 3 2004-2006 04
004 12336039 GRILLE, RAD (INCLS 3, 15) (BLACK) (LESS EMBLEM) K1 (06) (TB3, ULT, Y91, Z75, 41U, WSD) 2005-2006 01
004 12336040 GRILLE, RAD (INCLS 3, 15) (WHITE) (LESS EMBLEM) K1 (06) (TB3, ULT, WSD, Y91, Z75, 98U) 2005-2006 01
004 12336041 GRILLE, RAD (INCLS 3, 15) (RED) (LESS EMBLEM) K1 (06) (TB3, ULT, WSD, Y91, Z75, 63U) 2005-2006 01
004 12336042 GRILLE, RAD (INCLS 3, 15) (SILVER) (LESS EMBLEM) K1 (06) (TB3, ULT, WSD, Y91, Z75, 59U) 2005-2006 01
004 12336043 GRILLE, RAD (INCLS 3, 15) (BLUE) (LESS EMBLEM) K1 (06) (TB3, ULT, Y91, Z75, 26U, WSD) 2005-2006 01
004 89026518 GRILLE, RAD (INCLS 3, 15) K1 (06) (TB3, WSD, Y91, Z75, 25U) 2005-2006 01
005 TAPE SECT, (PART OF 6) 2005-2006
006 88944248 EMBLEM, RAD GRL (INCLS 5) (CHROME) (WREATH) K1 (06) (TB3, TL1, Y91, Z75) 2004-2006 01
007 TAPE SECT, (PART OF 8) 2005-2006
008 88944263 EMBLEM, RAD GRL (INCLS 7, 9) (CHROME) (CREST) K1 (06-36) (TL1, Y91, Z75, TB3) 2004-2006 01
009 EMBLEM, RAD GRL (PART OF 8) 2005-2006
010 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (RAD GRL) 2004-2006 01
011 11561878 RETAINER, RAD AIR UPR BFL (PUSH IN) (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940) K1, 2, 3 2004-2006 07
012 15809934 BAFFLE, RAD AIR UPR (INCLS 13, 14) K1 (06-36) (Z75) 2004-2006 01
013 12575049 LABEL, ACSRY BELT ROUTING (PART OF 12) K1, 2, 3 2004-2006 01
014 10388864 LABEL, A/C REFRIG WRNG (PART OF 12) K1, 2, 3 2006-2006 01
015 12378521 SEALANT, RTV (150G) (PART OF 4) 2004-2006 01
