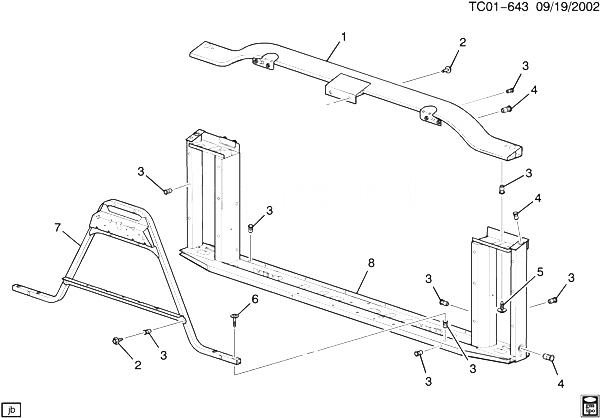

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15814090 |
SUPPORT, F/END UPR TIE BAR (PART OF 8) |
CK1, 2, 3 (EXC HP2, LBZ, LLY) |
2003-2007 |
01 |
| 001 |
15814090 |
SUPPORT, F/END UPR TIE BAR (PART OF 8) |
CK1, 2, 3 (EXC HP2, LLY) |
2003-2007 |
01 |
| 002 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 8)
|
1999-2007 |
04 |
|
| 003 |
11516763 |
ГАЙКА, RIVNUT, M6X1, 10MM HOLE, 20LG, 12.9 O.D., STL, ZP (PART OF 8) |
|
1999-2007 |
27 |
| 004 |
11561916 |
NUT-INSERT, M8X1.25, 13.5 HOLE, 0.7-3.8 GRIP, 24 LONG, 17.4 OD, 1008, GMW (PART OF 8) |
|
1999-2007 |
04 |
| 005 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 8)
|
1999-2007 |
06 |
|
| 006 |
15744933 |
БОЛТ, HEX HD, W/CON WA, M6X1X45 (PART OF 8) (1.267) |
|
1999-2007 |
04 |
| 007 |
15223722 |
BRACE, F/END SH MET RAD OPG (PART OF 8) |
CK1 (03-06-36-53) (EXC HP2, JJG) |
2005-2006 |
01 |
| 008 |
25815981 |
SUPPORT, RAD (INCLS 1-7) (MAY NEED TO ENLARGE THE DIAMETER OF AMBIENT TEMPERATURE SENSOR MOUNTING HOLE FROM 6.35MM TO 11.0MM)
| CK1 (03-06-36-53) (EXC HP2, JJG) |
2005-2006 |
01 |
|
