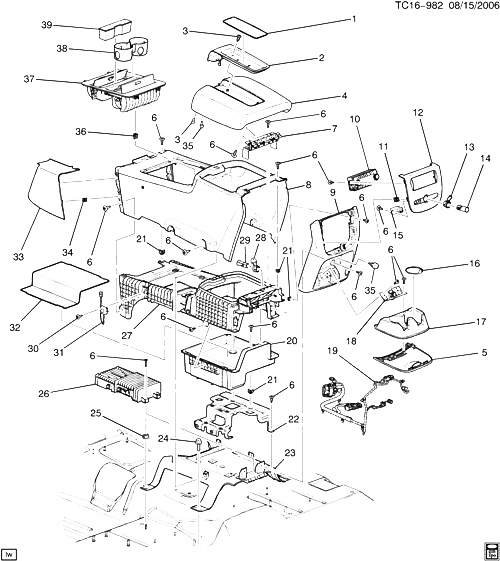

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15946301 |
LINER, F/FLR CNSL F/CMPT (PART OF 2, 4)
| C1, 2 (06-36) |
2007-2009 |
01 |
|
| 002 |
25902018 |
PUSHBUTTON, F/FLR CNSL COMPT DR LAT (INCLS 1) (PART OF 4) (MAPLE) |
CK1, 2 (Y91) |
2009-2009 |
01 |
| 003 |
|
БОЛТ, F/FLR CNSL COMPT (PART OF 4) |
|
2008-2009 |
|
| 004 |
15250347 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 35) (EBONY) |
C1 (06) (UK6, UQA, Y91, Z88, 19I) |
2007-2009 |
01 |
| 004 |
15250348 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 35) (CASHMERE) |
C1 (Y91, Z88, 39I) |
2007-2009 |
01 |
| 005 |
15217105 |
PANEL, F/FLR CNSL R/CMPT DR (EBONY) |
C1, 2, 3 (19I, 22I, 84I, 85I) |
2007-2009 |
01 |
| 005 |
15217106 |
PANEL, F/FLR CNSL R/CMPT DR (CASHMERE) |
C1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 006 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (F/FLR CNSL)
|
2007-2009 |
AR |
|
| 008 |
20817104 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (EBONY) |
CK1 (06) (UK6, UL8, UQA, UVB, U42, Y91, Z88, 19I) (EXPORT) |
2009-2009 |
01 |
| 008 |
20817105 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (CASHMERE) |
CK1 (06) (UK6, UL8, UQA, UVB, U42, Y91, Z88, 39I) (EXPORT) |
2009-2009 |
01 |
| 008 |
20817107 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (EBONY) |
CK1 (06) (UK6, UQA, Y91, Z88, 19I) (EXC U42) |
2009-2009 |
01 |
| 008 |
20817108 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (CASHMERE) |
CK1 (06) (UK6, UQA, Y91, Z88, 39I) (EXC U42) |
2009-2009 |
01 |
| 008 |
20817110 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (EBONY) |
CK1 (06) (UK6, UQA, U42, Y91, Z88, 19I) |
2009-2009 |
01 |
| 008 |
20817111 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (CASHMERE) |
CK1 (06) (UK6, UQA, U42, Y91, Z88, 39I) |
2009-2009 |
01 |
| 008 |
20817808 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (CASHMERE) |
CK1 (06) (UQA, Y91, Z88, 39I) (EXC U42) |
2009-2009 |
01 |
| 008 |
25979500 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (EBONY) |
CK1 (06) (UL8, Y91, Z88, 19I) (EXPORT) |
2009-2009 |
01 |
| 008 |
25979501 |
COMPARTMENT, F/FLR (INCLS 19, 22, 23) (CASHMERE) |
CK1 (06) (UL8, Y91, Z88, 39I) (EXPORT) |
2009-2009 |
01 |
| 009 |
15217101 |
PANEL, F/FLR FRT CNSL RR TR (EBONY) |
C1 (06-36) (19I, 22I, 84I) |
2007-2009 |
01 |
| 009 |
15217102 |
PANEL, F/FLR FRT CNSL RR TR (CASHMERE) |
C1 (06-36) (31I, 33I, 39I) |
2007-2009 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #15886277) |
CK1 (06) (D07, UK6, UL8, UQA, US8, US9, UVA, U3R, U42, Y91, Z88) |
2009-2009 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #15886277) |
CK1 (06) (D07, UK6, UQA, U42, Y91, Z88) (EXC UL8) |
2009-2009 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #15886277) |
CK1 (06) (D07, UK6, UQA, Y91, Z88) (EXC U42) |
2009-2009 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (2.560) (ACDelco #15886277) |
CK1 (06) (D07, UK6, UQA, U42, Y91, Z88) (EXC UL8) |
2009-2009 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12)
|
2007-2009 |
05 |
|
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
C1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
C1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
C1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
C1, 2 (06) (UQA) |
2007-2009 |
01 |
| 013 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 12) (EBONY) (INCLS COVER)
| CK1, 2, 3 (D07) |
2007-2009 |
01 |
|
| 015 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (PART OF 12) (ACDelco #10375379) |
CK1 (06) (D07, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U, Y91, Z88) |
2009-2009 |
01 |
| 015 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (PART OF 12) (ACDelco #10375379) |
CK1, 2 (06-43) (D07, SLT, UK6, UL8, UQA, UVA, U42, Y91, Z88) |
2009-2009 |
01 |
| 017 |
15134819 |
HOLDER, F/FLR RR CNSL CUP |
C1, 2, 3 (D07) |
2007-2009 |
01 |
| 018 |
15134821 |
HINGE, F/FLR CNSL COMPT DR (REAR CUPHOLDER DOOR HINGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1 (06) (D07, UK6, UQA, U42, Y91, Z88) (EXC UL8) |
2008-2009 |
01 |
| 019 |
25781989 |
HARNESS, F/FLR CNSL WRG (PART OF 8) |
CK1 (06) (D07, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U, U42, Y91, Z88) |
2009-2009 |
01 |
| 020 |
15134799 |
RETAINER, F/FLR CNSL (INCLS 32) |
CK1, 2 (06) (D07, UK6) |
2007-2009 |
01 |
| 021 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL) (10.701)
|
2007-2009 |
AR |
|
| 022 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2008-2009 |
|
| 023 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2008-2009 |
|
| 024 |
11562473 |
БОЛТ, F/SEAT (M12X1.75X45)
| CK1, 2, 3 (AE7, AN3, AZ3, A95) (EXC HP2) |
2007-2009 |
04 |
|
| 025 |
15035434 |
ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679)
| C1, 2, 3 |
2007-2009 |
04 |
|
| 026 |
20808897 |
УСИЛИТЕЛЬ, RDO SPKR (ACDelco #20808897) (LABELED 20808897) |
CK1 (D07, Y91, Z88) |
2009-2009 |
01 |
| 026 |
25939528 |
УСИЛИТЕЛЬ, RDO SPKR (ACDelco #25939528) (LABELED 25939528 OR 15937318) |
CK1 (06) (D07, Y91, Z88) |
2009-2009 |
01 |
| 027 |
15134797 |
RETAINER, F/FLR CNSL (INCLS 28, 29) |
CK1, 2 (06) (D07, UK6) |
2007-2009 |
01 |
| 028 |
25749635 |
RETAINER, ACSRY PWR RCPT (EBONY) (W/O CAP)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 030 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (RDO VOL COMP INTR NOISE MIC) |
|
2007-2009 |
02 |
| 031 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
CK1 (06) (D07, UK6, UL8, UQA, US8, US9, UVA, U3R, U3U, U42, Y91, Z88) |
2009-2009 |
02 |
| 031 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
CK1 (06) (D07, UK6, UL8, UQA, UVB, U42, Y91, Z88) |
2009-2009 |
02 |
| 031 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
CK1 (06) (D07, UK6, UQA, U42, Y91, Z88) (EXC UL8) |
2009-2009 |
02 |
| 031 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
CK1 (06) (D07, UK6, UQA, Y91, Z88) (EXC U42) |
2009-2009 |
02 |
| 032 |
15134801 |
MAT, F/FLR CNSL FRT COMPT (PART OF 20) (EBONY) |
C1, 2 (06) |
2007-2009 |
01 |
| 034 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 33)
|
2007-2009 |
04 |
|
| 036 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37)
|
2007-2009 |
04 |
|
| 037 |
20811675 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 36, 38, 39) (MAPLE) (W/HEAT STAKES) |
CK1, 2 (D07, Y91, Z88) (EXC STZ) |
2009-2009 |
01 |
| 037 |
25912890 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 36, 38, 39) (BRUSH) (W/O HEAT STAKES) |
CK1 (D07, GAT) |
2008-2009 |
01 |
