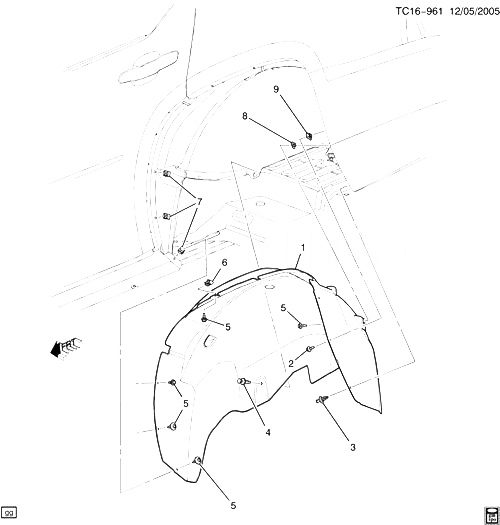

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
LINER, RR W/H PNL (INCLS 6) |
|
2007-2009 |
|
| 001 |
|
LINER, RR W/H PNL (INCLS 6) |
|
2007-2009 |
|
| 001 |
15938661 |
LINER, RR W/H PNL (INCLS 6) (W/NUT)
| CK107 (06) (STZ, X88, Y91, Z75, Z88) |
2009-2009 |
01 |
|
| 001 |
15938662 |
LINER, RR W/H PNL (INCLS 6) (W/NUT)
| CK107 (06) (STZ, X88, Y91, Z75, Z88) |
2009-2009 |
01 |
|
| 002 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (RR W/H PNL LNR)
|
2007-2009 |
04 |
|
| 003 |
11589292 |
PUSH PIN, FITS 8.5 DIA HOLE IN 2-4.5 THK PNL, NYLON 6/6 GMP.PA66.015 (RR W/H PNL LNR (PUSH IN))
|
2007-2009 |
02 |
|
| 004 |
01605396 |
RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (RR W/H PNL LNR (PUSH IN)) |
|
2007-2009 |
04 |
| 005 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR W/H PNL LNR) |
|
2007-2009 |
10 |
| 006 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 1) (ACDelco #11513599) |
|
2007-2009 |
02 |
| 007 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H PNL LNR) (ACDelco #11513599) |
|
2007-2009 |
06 |
| 008 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (RR W/H PNL) (10.512)
|
2007-2009 |
02 |
|
| 009 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (RR W/H PNL LNR) (10.512)
|
2007-2009 |
02 |
|
