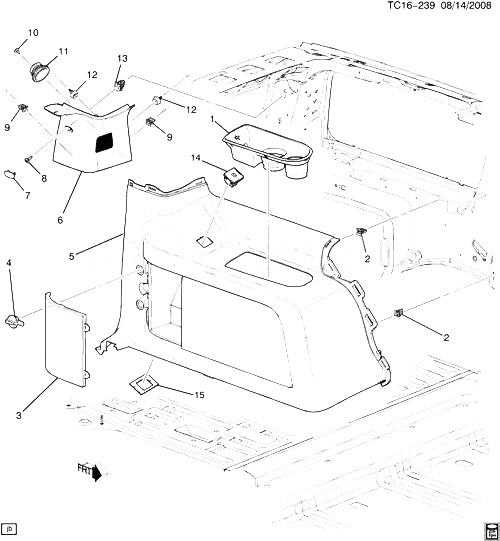

(TC16-239) - 2009 CK107(06) ОТДЕЛКА/INTERIOR-BODY SIDE-LH QUARTER DETAIL (HYBRID HP2, CADILLAC Z75) CADILLAC - ESCALADE (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15838268 HOLDER, R/SEAT CUP (PART OF 5) (EBONY) CK107 (06) (19I) 2009-2009 01
001 15838269 HOLDER, R/SEAT CUP (PART OF 5) (CASHMERE) CK107 (06) (33I, 39I) 2009-2009 01
001 15838270 HOLDER, R/SEAT CUP (PART OF 5) (TITANIUM) CK107 (06) (83I) 2009-2009 01
001 15936706 HOLDER, R/SEAT CUP (PART OF 5) (LINEN) CK107 (06) (41I) 2009-2009 01
002 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 5) 2009-2009 07
003 DOOR, BODY SI LWR T/PNL STOW COMPT (PART OF 5) 2009-2009
004 15838294 LATCH, BODY SI T/PNL OPG ACC CVR (PART OF 5) (EBONY) CK1, 2 (06) (19I) 2009-2009 02
004 15838295 LATCH, BODY SI T/PNL OPG ACC CVR (PART OF 5) (CASHMERE) CK1, 2 (06) (33I, 39I) 2009-2009 02
004 15838296 LATCH, BODY SI T/PNL OPG ACC CVR (PART OF 5) (TITANIUM) CK1, 2 (06) (83I) 2009-2009 02
004 15936704 LATCH, BODY SI T/PNL OPG ACC CVR (PART OF 5) (LINEN) CK1 (06) (E61, ULT, 41I) 2009-2009 02
005 15294093 PANEL, BODY SI TR (INCLS 1-4, 14, 15) (TITANIUM) CK107 (06) (HP2, 83I) 2009-2009 01
005 15885778 PANEL, BODY SI TR (INCLS 1-4, 14, 15) (TITANIUM) CK107 (06) (E61, 83I) 2009-2009 01
005 15904065 PANEL, BODY SI TR (INCLS 1-4, 14, 15) (EBONY) CK107 (06) (HP2, Y91, Z75, Z88, 19I) 2009-2009 01
005 20765250 PANEL, BODY SI TR (INCLS 1-4, 14, 15) (LINEN) CK107 (06) (HP2, ULT, Y91, Z75, 41I) 2009-2009 01
005 25902628 PANEL, BODY SI TR (INCLS 1-4, 14, 15) (CASHMERE) CK107 (06) (HP2, Y91, Z75, Z88, 39I) 2009-2009 01
006 15862681 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRAY) CK1, 2 (06) (19I, 83I) (EXC E61) 2009-2009 01
006 15863067 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRANITE) (W/SPKR) (BUILT PRIOR TO 5/19/08) (FOR 2ND DES SEE 25999668) CK1, 2 (06) (UQ3, 19I, 83I) (EXC E61) (1ST DES) 2009-2009 01
006 15877451 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (LINEN) CK1 (06) (ULT, 41I) 2009-2009 01
006 15901352 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (CASHMERE) (W/O SPEAKER) CK1 (06) (E61, Z75, 39I) 2009-2009 01
006 15901354 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRAY) CK1, 2 (06) (E61, Z75, 19I) (EXC UQA, UQS) 2009-2009 01
006 15901363 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRAY) CK1 (06) (E61, UQS, Y91, Z75, 19I) 2009-2009 01
006 25815096 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRAY) (W/SPKR) CK1 (06) (E61, STZ, UQA, 19I, 83I) 2009-2009 01
006 25818939 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRAY) CK1 (06) (STZ, UQA, UQS, 19I, 83I) (EXC E61) 2009-2009 01
006 25886908 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (CASHMERE) (W/SPKR) CK1 (06) (E61, UQS, Z75, 39I) 2009-2009 01
006 25999668 MOLDING, BODY RR COR UPR GARN (INCLS 7-13) (GRANITE) ( (W/O SPKR) (ORDER SPKR SEPARATE)) (BUILT 5/19/08 AFTER) (FOR 1ST DES SEE 15863067) CK1, 2 (06) (UQ3, 19I, 83I) (EXC E61) (2ND DES) 2009-2009 01
007 15278014 PLUG, BODY RR COR UPR GARN MLDG (PART OF 6) (GRAY) CK1, 2 (06) (UQ3, UQA, 19I, 83I) 2009-2009 02
007 15278015 PLUG, BODY RR COR UPR GARN MLDG (PART OF 6) (CASHMERE) CK1, 2 (06) (33I, 39I) 2009-2009 02
007 25827851 PLUG, BODY RR COR UPR GARN MLDG (PART OF 6) (LINEN) CK1 (06) (ULT, 41I) 2009-2009 02
008 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 6) 2009-2009 01
009 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 6) 2009-2009 02
010 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 6) 2009-2009 01
011 15186672 SPEAKER, RDO BODY RR COR UPR GARN MLDG (PART OF 6) (ACDelco #15186672) CK1 (06) (E61, UQA, UQS, Y91) 2009-2009 02
012 11561654 RETAINER, BODY RR COR G/MLDG (PART OF 6) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800) CK1, 2 (06) 2009-2009 06
013 11609651 RETAINER, BODY RR COR G/MLDG (PART OF 6) (M21.8X15.0X20.5) (14.731) CK1, 2 (06) 2009-2009 02
014 25858121 RECEPTACLE, ACSRY PWR (PART OF 5) (110 VOLT) (ACSRY PWR RECEPTACLE ASSEM LABELED 8121) CK107 (06) (HP2) 2009-2009 01
015 PLATE, C/PLR UPR T/PNL MT (PART OF 5) 2009-2009
