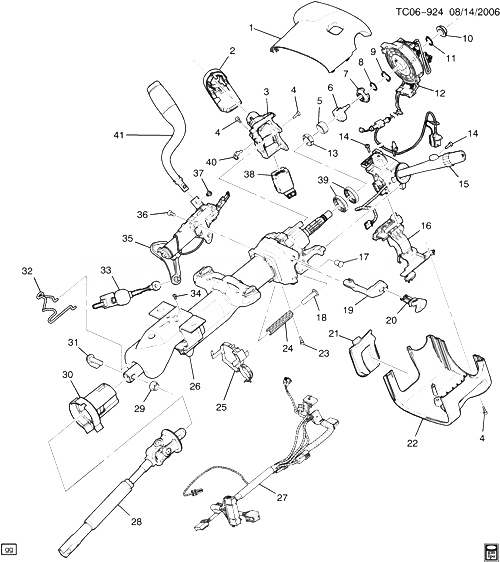

(TC06-924) - 2007-2009 C1(06) РУЛЕВАЯ КОЛОНКА (POLICE PACKAGE PPV) CADILLAC - ESCALADE (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15775830 SHROUD, STRG COL (INCLS 22) (EBONY) C107 (06) (PPV, 19I) 2009-2009 01
001 15775831 SHROUD, STRG COL (INCLS 22) (TITANIUM) C1, 2, 3 (83I) 2008-2009 01
001 25797755 SHROUD, STRG COL (INCLS 22) (EBONY) C1 (06) (MYC, M99, Y91) 2009-2009 01
001 25797756 SHROUD, STRG COL (INCLS 22) (COCOA) C1 (06) (M99, Y91, 39I, 41I) (EXC NP7) 2009-2009 01
001 25797756 SHROUD, STRG COL (INCLS 22) (COCOA) C107 (06) (MYC, NP7, Y91, 39I) (EXC KA9) 2009-2009 01
002 25861815 MODULE, THEFT DTRNT C1, 2, 3 2007-2009 01
003 26088811 CASE, IGN LK CYL (EXCEPT LK ACTUATOR PASS SENSOR) (PART OF 26) (PASS KEY) C1, 2, 3 2007-2009 01
004 26036497 БОЛТ, STRG COL LWR TR CVR (PART OF 26) (M5X.8X15) (6.760) C1, 2, 3 2007-2009 03
005 26055299 ПРУЖИНА, STRG SHF UPR BRG (PART OF 26) C1, 2, 3 2007-2009 01
006 15775848 CAM, T/SIG SW CANC (PART OF 26) C1, 2, 3 2007-2009 01
007 26049186 PLATE, T/SIG SW CANC CAM POSN (PART OF 26) (W/SHIELD) (6.521) C1, 2, 3 2007-2009 01
008 05694191 RING, STRG SHF LK PLT RET (PART OF 26) (6.524) C1, 2, 3 2007-2009 02
009 26011609 WASHER, STRG WHL INFL RST MDL COIL (14.865) C1, 2, 3 2007-2009 01
010 11609658 ГАЙКА, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518) C1, 2, 3 2007-2009 01
011 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL COIL RET) 2007-2009 01
012 15829094 COIL, STRG WHL INFL RST MDL (W/ACSRY CNCT) C1 (06-36) (MYC) (EXC KA9) 2007-2009 01
012 25966964 COIL, STRG WHL INFL RST MDL (W/ACSRY CNCT) C1 (06-36) (MYC, KA9, Y91) 2009-2009 01
013 15231641 SEAT, STRG SHF UPR BRG RACE (PART OF 26) C1, 2, 3 2007-2009 01
014 26036497 БОЛТ, HDLP DIMR T/SIG SW (M5X.8X15) (6.760) C1, 2, 3 2007-2009 02
014 26036497 БОЛТ, HDLP DIMR T/SIG SW (M5X.8X15) (6.760) C1, 2, 3 2007-2009 02
015 15849313 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (W/O RR WIPER) (2.895) (ACDelco #D6221E) C1, 2, 3 2007-2009 01
015 15849313 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (W/O RR WIPER) (ACDelco #D6221E) C1, 2, 3 2007-2009 01
015 15849314 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (INCLUDES HAZARD BUTTON) (W/RR WIPER) (2.895) (ACDelco #D6224E) C1, 2 (06) 2007-2009 01
015 15849314 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (INCLUDES HAZARD BUTTON) (W/RR WIPER) (2.895) (ACDelco #D6224E) C1, 2 (06) 2007-2009 01
015 15849314 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (INCLUDES HAZARD BUTTON) (W/RR WIPER) (ACDelco #D6224E) C1, 2 (06) 2007-2009 01
015 15849314 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (INCLUDES HAZARD BUTTON) (W/RR WIPER) (2.895) (ACDelco #D6224E) C1, 2 (06) 2007-2009 01
016 26075818 BRACKET, IGN LK CYL CASE (PART OF 26) C1, 2, 3 2007-2009 01
017 26036521 PIN, STRG COL PIV (PART OF 26) C1, 2, 3 2007-2009 02
018 26034561 GUIDE, STRG COL TILT (PART OF 26) (6.514) C1, 2, 3 2007-2009 01
019 26090202 LEVER, STRG COL TILT LK REL (PART OF 26) (INTERNAL) C1, 2, 3 2007-2009 01
020 26069514 LEVER, STRG COL TILT WHL REL (EXTERNAL) C1, 2, 3 2007-2009 01
021 15775835 SEAL, A/TRNS CONT LVR C1, 2, 3 2007-2009 01
022 SHROUD, STRG COL (PART OF 1) 2007-2009
023 26036317 PIN, STRG COL TILT LK REL LVR PIV (PART OF 26) (M5X0.8) (T-25 TORX) C1, 2, 3 2007-2009 01
024 26065450 ПРУЖИНА, STRG COL TILT (PART OF 26) C1, 2, 3 2007-2009 01
025 11561801 STRAP, WRG HARN (HOLDS TUBE DIA 60MM) CK1, 2 (06-36) 2007-2009 01
026 15775845 COLUMN, STRG (INCLS 3-8, 13, 16-19, 23, 24, 30, 32) C107 (06) (PPV) 2007-2009 01
026 25797804 COLUMN, STRG (INCLS 3-8, 13, 16-19, 23, 24, 30, 32) C1 (06) (M99, Y91) (EXC NP7) 2009-2009 01
027 25797751 HARNESS, STRG COL WRG C1 (06) (M99, Y91) (EXC NP7) 2009-2009 01
028 25809424 SHAFT, UPR INTER STRG C1, 2, 3 2007-2009 01
029 11514597 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) CK1, 2, 3 2007-2009 01
030 15775851 ADAPTER, STRG SHF LWR BRG (PART OF 26) (INCLS LOWER BEARING) C1, 2, 3 2007-2009 01
031 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) CK1, 2, 3 2008-2009 01
032 SUPPORT, A/TRNS RANGE SEL LVR CBL (PART OF 26) 2007-2009
033 15775841 SOLENOID, A/TRNS SHFT LK CONT (ACDelco #15775841) C1, 2, 3 2007-2009 01
034 11562309 SCREW, OVAL HEAD, 10-24X0.43, GM6010M STL, PHOSPHATEOIL, TAPPING, W/ADH (STRG COL BRKT) 2007-2009 03
035 15775840 CONTROL, A/TRNS (INCLS PARK LOCK CABLE) (4.004) C1 (MYC) 2007-2009 01
035 15860124 CONTROL, A/TRNS (INCLS PARK LOCK CABLE) C107 (06) (PPV) 2009-2009 01
035 15860124 CONTROL, A/TRNS (INCLS PARK LOCK CABLE) (4.004) C107 (06) (PPV) 2009-2009 01
036 26035516 БОЛТ, A/TRNS SHFT LK CONT SOL C1, 2, 3 2007-2009 03
037 26086318 БОЛТ, A/TRNS CONT LVR (M6X1X13) C1, 2, 3 2007-2009 01
038 25733005 SWITCH, IGN START (ACDelco #D1485F) C1, 2, 3 2007-2009 01
039 26001827 BEARING KIT, STRG SHF UPR (STRG COL INR W/RACE) C1, 2, 3 2007-2009 01
040 26082804 RETAINER, A/TRNS PARK LK CBL C1, 2, 3 2007-2009 01
041 15870744 LEVER, A/TRNS CONT (1/8 PINS) C107 (06) (PPV) 2007-2009 01
041 25807853 LEVER, A/TRNS CONT (1/16 CONNECTOR PINS) C1 (06-36-43) (MYC, 19I, Y91) 2007-2009 01
041 25807855 LEVER, A/TRNS CONT (1/16 PINS) C1 (06-36-43) (MYC, 39I, 41I) 2009-2009 01
041 25872090 LEVER, A/TRNS CONT C1 (06) (M99, Y91, 39I, 41I) 2009-2009 01
041 25872091 LEVER, A/TRNS CONT C1 (M99, Y91, 19I) 2009-2009 01
