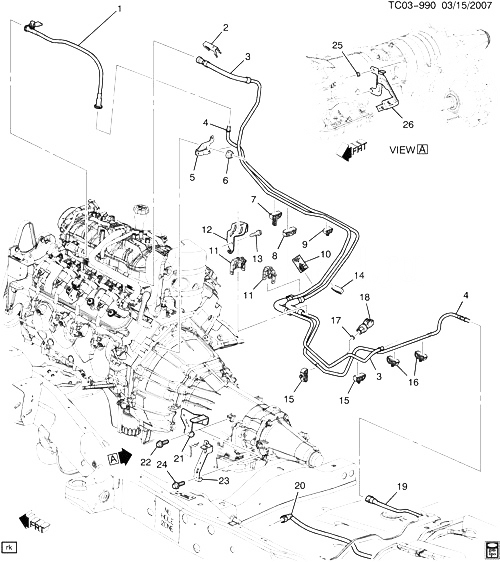

(TC03-990) - 2009 CK1(06-36) СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT (LC9/5.3-3,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L9H/6.2-2) CADILLAC - ESCALADE (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12617169 TUBE, EVAP EMIS CNSTR PURGE CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L9H, LS2) 2009-2009 01
002 22695614 RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE) CK1, 2, 3 (LC9, LFA, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) 2009-2009 01
003 15946243 HOSE, FUEL FEED (INCLS 15) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
004 15946264 HOSE, EVAP EMIS (INCLS 16) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
005 15085402 BRACKET, FUEL FEED EVAP EMIS RTN HOSE CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
006 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) 2008-2009 01
007 15168648 CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) CK1, 2 (06-36) 2008-2009 01
009 15085405 CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
010 LABEL, FUEL FEED PIPE WRNG 2008-2009
011 15085404 CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 02
012 15126012 BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP CK1 (06-36) 2008-2009 01
013 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) (ACDelco #11570082) 2008-2009 01
014 15168649 CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) CK1, 2 (06-36) 2008-2009 03
015 15168646 CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 3) (2 TUBE) CK1, 2, 3 2008-2009 02
016 15168646 CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 4) (2 TUBE) CK1, 2, 3 2008-2009 02
017 15778699 SEAL, FUEL PRESS SEN (O RING) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
018 15239857 SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (3.682) (ACDelco #213-3837) (PART OF HOSE ASSEMBLY 25949801 LABELED 9801) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
018 15239857 SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (ACDelco #213-3837) (PART OF HOSE ASSEMBLY 25949801 LABELED 9801) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) 2009-2009 01
019 HOSE, EVAP EMIS CNSTR PURGE (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
020 HOSE, FUEL FEED (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
022 11516703 БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) 2008-2009 01
023 15124945 BRACKET, FUEL FEED RTN FRT HOSE CK1 (MYC) 2008-2009 01
024 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUEL FEED RTN FRT HOSE BRKT) 2008-2009 01
025 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) 2008-2009 06
