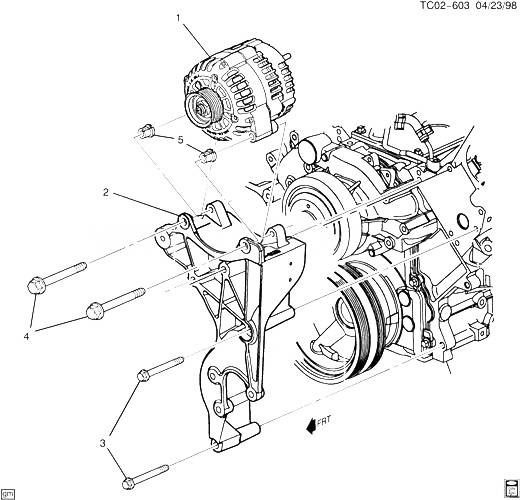

(TC02-603) - 2009 CK1 КРЕПЛЕНИЕ ГЕНЕРАТОРА (LC9/5.3-3,LH6/5.3M,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L9H/6.2-2) CADILLAC - ESCALADE (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25869451 GENERATOR, (STAMPED FJ OR FB OR JD) (ACDelco #25869451) CK1, 2 (KG3) 2007-2009 01
001 25877026 GENERATOR, (ACDelco #25877026) CK1, 2, 3 (KW1) 2007-2009 01
002 12554030 BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) CK1 (L9H) 2009-2009 01
003 11516744 BOLT-HFH, M10X1.5X110, 26 THD, 22.3 OD, 9.8, 7114M (GEN P/S PUMP BRKT) 2007-2009 04
004 11516360 БОЛТ, HFH M10X1.2X90, 9.8, 7114M, 22.3 OD HDR PT (GEN) 2007-2009 02
005 12550090 SPACER, GEN P/S PUMP BRKT (PART OF 2) CK1 (L9H) 2009-2009 02
