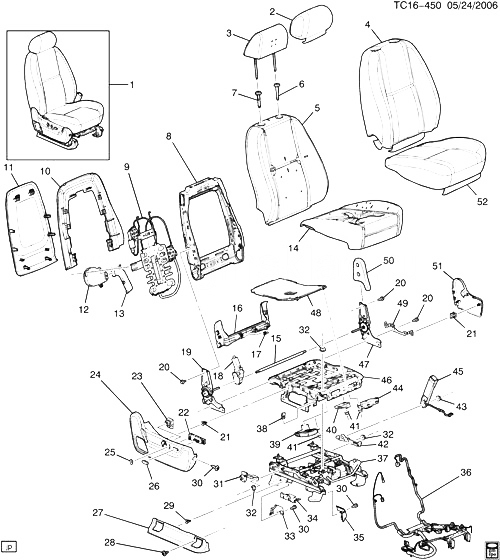

(TC16-450) - 2008 CK1(06-36) ПАССАЖИРСКОЕ СИДЕНЬЕ/BUCKET (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15827056 SEAT, PASS (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2007-2008 01
001 15827057 SEAT, PASS (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 304) 2007-2008 01
001 15934158 SEAT, PASS (EBONY) CK1, 2 (06-36) (AL0, AN3, 193) 2008-2008 01
001 15934161 SEAT, PASS (EBONY/MOROCCO) CK1, 2 (06-36) (AL0, AN3, 223) 2008-2008 01
001 15934162 SEAT, PASS (EBONY/TITANIUM) CK1, 2 (06-36) (AL0, AN3, 843) 2008-2008 01
001 25851685 SEAT, PASS (LINEN/COCOA) CK1 (06-36) (AN3, HNE, ULT, Z75, 415) 2008-2008 01
001 25969426 SEAT, PASS (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AYE) 2008-2008 01
002 COVER, P/SEAT H/RST (PART OF 3) 2008-2008
003 15865481 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 196, 843, 846) 2007-2008 01
003 15865481 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 193, 223, 843) 2008-2008 01
003 25798348 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) (LEATHER) (W/ BUTTON) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2007-2008 01
003 25798350 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) (INCLS BUTTON) CK1, 2 (06-36) (AN3, KB6, 304) (EXC XA1) 2007-2008 01
003 25948864 RESTRAINT, P/SEAT HD (INCLS 2) (COCOA) CK1 (06) (AN3, Z75, 415) 2008-2008 01
004 15827097 COVER, P/SEAT BK CUSH (EBONY) CK1 (06-36-43) (AN3, KB6, Z75, 194) 2007-2008 01
004 15865828 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 193) 2007-2008 01
004 15923997 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 223) 2008-2008 01
004 15923998 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 843) 2007-2008 01
004 25851673 COVER, P/SEAT BK CUSH (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AX4) 2008-2008 01
004 25899521 COVER, P/SEAT BK CUSH (CASHMERE) CK1 (06-36) (AN3, KB6, Z75, 304) 2007-2008 01
005 25789846 PAD, P/SEAT BK CUSH CK1, 2 (06-36) (KB6) 2007-2008 01
006 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2, 3 (19I, 84I) 2007-2008 02
006 15279440 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1 (06-36) (30I) 2007-2008 02
007 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2, 3 (19I, 84I) 2007-2008 02
007 15279441 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1 (06) (30I) 2007-2008 02
008 25808721 FRAME, P/SEAT BK CUSH (INCLS 9, 15, 18, 19, 47) (INCLS RECLINER, MOTOR LUMBAR SUPPORT) CK1 (06-36) (AN3, HNE, KB6) 2007-2008 01
009 20763141 LUMBAR SUB, P/SEAT (PART OF 8) (POWER) (HEAT COOL) CK1, 2 (06-36) (AN3, HNE) 2007-2008 01
009 20763141 LUMBAR SUB, P/SEAT (PART OF 8) (POWER) (HEAT COOL) CK1, 2 (06-36) (AN3, KB6) 2007-2008 01
010 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2007-2008 02
011 15232700 PANEL, P/SEAT BK CUSH FIN (EBONY) CK1 (06-36) (AN3, KB6, Z75, 194) 2007-2008 01
011 15232701 PANEL, P/SEAT BK CUSH FIN (CASHMERE) CK1 (06-36) (AN3, KB6, Z75, 304) 2007-2008 01
011 15933726 PANEL, P/SEAT BK CUSH FIN (INCLS MAP POCKET) (EBONY) (WHEN REPL TRIM WRAP PANELS, REPLACE BOTH DRVR PASS PANELS) CK1, 2 (06-36) (AN3, 193, 223, 843) 2008-2008 01
011 25969424 PANEL, P/SEAT BK CUSH FIN (COCOA) CK1 (06) (AN3, HNE, Z75, 415) (EXC AX4) 2008-2008 01
012 15232557 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06-36) (AN3, KB6) 2007-2008 01
012 15232557 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06-36) (AN3, HNE, Z75) 2008-2008 01
013 15232558 DUCT, P/SEAT BACK VENTILATION CK1 (06-36) (AN3, KB6) 2007-2008 01
013 15232558 DUCT, P/SEAT BACK VENTILATION CK1 (06-36) (AN3, HNE, Z75) 2008-2008 01
014 PAD, P/SEAT CUSH (PART OF 48) 2008-2008
015 RECLINER, P/SEAT (PART OF 8) 2008-2008
016 15827129 COVER, F/SEAT RSR FIN (INCLS 17) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
016 15827132 COVER, F/SEAT RSR FIN (INCLS 17) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (30I) 2007-2008 02
016 25851756 COVER, F/SEAT RSR FIN (INCLS 17) (COCOA) CK1 (06) (AN3, 41I) 2008-2008 02
017 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 16) 2008-2008
018 MOTOR, P/SEAT RECL ACTR (PART OF 8) 2008-2008
019 RECLINER, P/SEAT OTR (PART OF 8) 2008-2008
020 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2007-2008 08
021 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 24, 51) 2008-2008
022 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) (P SEAT ADJ SWITCH LABELED 12451498) (11.558) CK1, 2, 3 (AN3) 2007-2008 01
023 25802503 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) (USED WITH 4-WAY POWER LUMBAR) CK1, 2 (06-36) (30I) 2007-2008 01
023 25909573 SWITCH, P/SEAT LUMBAR CONT CK1 (06) (41I) 2008-2008 01
024 15232567 COVER, P/SEAT ADJR FIN (INCLS 21) (EBONY) (POWER) CK1, 2 (06-36) (AN3, 19I, 22I, 84I) 2007-2008 01
024 15232570 COVER, P/SEAT ADJR FIN (INCLS 21) (CASHMERE) (POWER) CK1, 2 (06-36) (AN3, 30I) 2007-2008 01
024 25851773 COVER, P/SEAT ADJR FIN (INCLS 21) (COCOA) CK1 (06) (AN3, 41I) 2008-2008 01
025 10340136 KNOB, F/SEAT RECL (EBONY) (11.377) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
025 15786548 KNOB, F/SEAT RECL (CASHMERE) CK1, 2 (06-36) (30I) 2007-2008 02
025 15889098 KNOB, F/SEAT RECL (COCOA) (11.377) CK1, 2, 3 (41I) 2008-2008 02
026 10325879 KNOB, P/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
026 15786549 KNOB, P/SEAT ADJR SW (CASHMERE) CK1, 2 (06-36) (30I) 2007-2008 01
026 15889097 KNOB, P/SEAT ADJR SW (COCOA) (11.558) CK1, 2, 3 (41I) 2008-2008 01
027 15232592 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 29) (CASHMERE) (OUTBOARD) CK1 (06-36) (30I) 2008-2008 01
027 15243872 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 29) (CASHMERE) (INBOARD) CK1 (06-36) (30I) 2008-2008 01
028 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR FIN CVR) (ACDelco #11517996) 2007-2008 01
029 RETAINER, F/SEAT ADJR FIN CVR (PART OF 27) 2008-2008
030 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (P/SEAT CUSH OTR FIN PNL) 2007-2008 03
031 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2007-2008 01
032 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) (ACDelco #11517996) 2007-2008 08
033 COVER, P/SEAT OTR ADJR TRK RR FIN 2007-2008
034 15827135 BRACKET, P/SEAT FRT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2007-2008 01
035 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
035 15243861 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1 (06-36) (30I) 2008-2008 01
035 25851776 COVER, P/SEAT INR ADJR TRK FRT FIN (COCOA) CK1 (06) (AN3, 41I) (EXC AX4) 2008-2008 01
036 25902020 HARNESS, P/SEAT ADJR WRG CK1 (06-36) (AL0, AN3, 194, 304, KB6, Z75) 2007-2008 01
036 25902020 HARNESS, P/SEAT ADJR WRG CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2008-2008 01
037 25966545 ADJUSTER, P/SEAT (POWER 6-WAY) (INCLS MOTORS) CK1, 2, 3 (AN3) 2007-2008 01
037 25966553 ADJUSTER, P/SEAT (POWER) CK1 (06-36-43) (AN3) 2008-2008 01
038 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2007-2008 02
039 15232556 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, KB6) 2007-2008 01
039 15232556 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, HNE, Z75) 2008-2008 01
040 MODULE, INFL RST P/SEAT SUPPRESSION (PART OF 48) 2008-2008
041 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (INFL RST P/SEAT SUPPRESSION) 2007-2008 AR
042 BRACKET, P/SEAT BELT (BKL SI) 2008-2008
043 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT BELT (BKL SI)) (ACDelco #11517996) 2007-2008 01
044 15232555 MODULE, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, KB6) 2007-2008 01
044 15232555 MODULE, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, HNE) 2008-2008 01
045 19121544 BELT KIT, P/SEAT (BKL SI) (CASHMERE) (W/РОЛИК НАТЯЖИТЕЛЬ) CK1 (06-36) (AN3, AL0, 30I) 2007-2008 01
045 19180588 BELT KIT, P/SEAT (BKL SI) (COCOA) CK1 (06) (AN3, Z75, 415) 2008-2008 01
046 15827059 FRAME, P/SEAT CUSH CK1, 2, 3 2007-2008 01
047 RECLINER, P/SEAT INR (PART OF 8) 2008-2008
048 19209353 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 14, 40) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2008-2008 01
048 25789848 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 14, 40) CK1, 2 (AL0, KB6) (EXC ULT) 2008-2008 01
049 15827137 BRACKET, P/SEAT RECL (I/B) CK1, 2, 3 2007-2008 01
050 15855909 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
050 15855911 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
051 15243828 COVER, P/SEAT INR RECL FIN (INCLS 21) (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
051 15243831 COVER, P/SEAT INR RECL FIN (INCLS 21) (CASHMERE) CK1, 2, 3 (30I) 2007-2008 01
051 25851775 COVER, P/SEAT INR RECL FIN (INCLS 21) (COCOA) CK1, 2, 3 (AN3, 41I) 2008-2008 01
052 15865832 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 193) 2007-2008 01
052 15923999 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 223) 2008-2008 01
052 15924000 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 843) 2007-2008 01
052 25851690 COVER, P/SEAT CUSH (COCOA) CK1 (06-36) (AN3, 415) 2008-2008 01
052 25899514 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AN3, KB6, Z75, 194) 2007-2008 01
052 25899515 COVER, P/SEAT CUSH (CASHMERE) CK1 (06-36) (AN3, KB6, Z75, 304) 2007-2008 01
