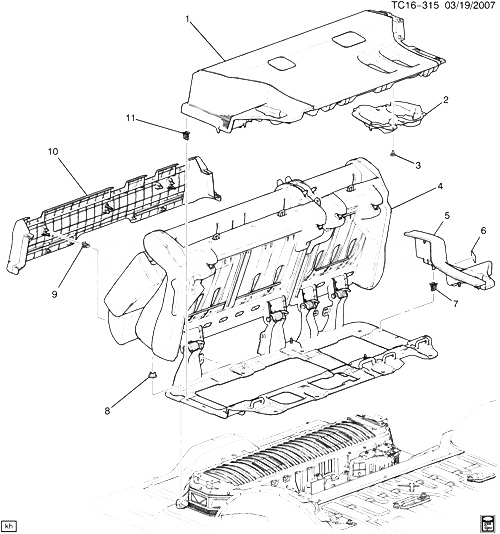

(TC16-315) - 2008-2009 CK107(06) КРЕПЛЕНИЕ ЗАДНЕГО СИДЕНЬЯ (60/40 BENCH AM8, HYBRID HP2) CADILLAC - ESCALADE (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25947243 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2009 01
001 25947244 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (CASHMERE) CK1 (06) (AM8, HP2, 31I, 33I) 2008-2008 01
001 25947245 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2008-2009 01
002 25813593 COVER, R/SEAT RSR INR FIN (PART OF 1) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2009 01
002 25813594 COVER, R/SEAT RSR INR FIN (PART OF 1) (CASHMERE) CK1 (06) (AM8, HP2, 31I, 33I, 39I) 2008-2009 01
002 25813595 COVER, R/SEAT RSR INR FIN (PART OF 1) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2008-2009 01
003 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 1) 2008-2009 05
004 SEAT, RR (СМ. ГРУППУ 16.000 ЗАДНЕЕ СИДЕНЬЕ/BENCH ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (EBONY) 2008-2009
005 25947239 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2009 01
005 25947240 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (CASHMERE) CK1 (06) (AM8, HP2, 31I, 33I) 2008-2008 01
005 25947241 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2008-2009 01
006 15894130 LABEL, BAT (PART OF 5) CK1 (06) (AM8, HP2) 2008-2009 01
007 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) 2008-2009 11
008 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2008-2009 08
009 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10) 2008-2009 08
010 25898239 COVER, R/SEAT FRM FRT FIN (INCLS 9) (CASHMERE) CK1 (06) (AM8, HP2, 31I, 33I) 2008-2009 01
010 25898240 COVER, R/SEAT FRM FRT FIN (INCLS 9) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2008-2009 01
010 25924173 COVER, R/SEAT FRM FRT FIN (INCLS 9) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2009 01
011 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) 2008-2009 09
