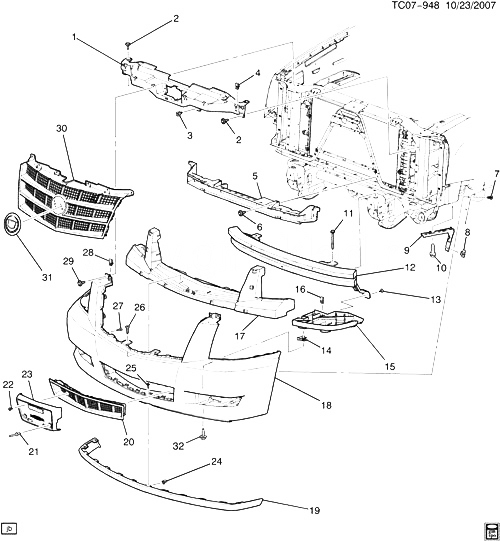

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15904442 |
BRACKET, RAD GRL UPR (INCLS 3, 4)
| CK1 (Z75) |
2008-2009 |
01 |
|
| 002 |
11610055 |
БОЛТ, HWASH, M6X1X23 (RAD GRL SUPT REINF) |
|
2008-2009 |
06 |
| 003 |
22581725 |
CLIP, КАПОТ PRIM LAT REL CBL (PART OF 1) (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145)
| CK1, 2 |
2008-2009 |
03 |
|
| 004 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) |
|
2008-2009 |
01 |
| 005 |
25901978 |
BRACKET, FRT BPR FASCIA
| CK1, 2 (06-36) (X88, Z75) |
2008-2009 |
01 |
|
| 006 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR FASCIA) |
|
2008-2009 |
06 |
| 007 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT)
|
2008-2009 |
04 |
|
| 008 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 9) (10.512)
|
2008-2009 |
01 |
|
| 009 |
25948814 |
BRACKET, FRT BPR FASCIA SI
| CK1, 2 (06-36) (Z75) |
2008-2009 |
01 |
|
| 009 |
25948815 |
BRACKET, FRT BPR FASCIA SI
| CK1, 2 (06-36) (Z75) |
2008-2009 |
01 |
|
| 010 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR FASCIA SI BRKT)
|
2008-2009 |
04 |
|
| 011 |
11519154 |
БОЛТ, FRT BPR IMP BAR (M14X2X140)
| CK1, 2, 3 |
2008-2009 |
02 |
|
| 012 |
25947497 |
BAR, FRT BPR IMP
| CK1 (06-36) (EXC HP2) |
2008-2008 |
01 |
|
| 013 |
11589398 |
БОЛТ, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (FRT BPR LWR FASCIA) |
|
2008-2009 |
02 |
| 014 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 15)
|
2008-2009 |
01 |
|
| 015 |
15907625 |
FILLER, FRT BPR OTR FRT (INCLS 14, 16) |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 015 |
15907626 |
FILLER, FRT BPR OTR FRT (INCLS 14, 16) |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 016 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (PART OF 15)
|
2008-2009 |
01 |
|
| 017 |
15907623 |
SUPPORT, FRT BPR FASCIA |
CK1 (06) (ULT, VGD, Z75) |
2008-2009 |
01 |
| 018 |
25975452 |
FASCIA, FRT BPR (PAINT TO MATCH)
| CK1 (06) (ULT, VGD, Z75) |
2008-2009 |
01 |
|
| 019 |
15907627 |
DEFLECTOR, FRT AIR |
CK1 (06) (ULT, VGD, Z75) |
2008-2008 |
01 |
| 020 |
25957702 |
GRILLE, RAD LWR (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (SILVER) |
CK1 (06) (ULT, VGD, Z75) |
2008-2008 |
01 |
| 021 |
22579423 |
RIVET, FRT LIC PLT BRKT (5 X 25) (10.710)
| CK1 (06-36) (VK3, Z75) |
2008-2009 |
04 |
|
| 022 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) |
|
2008-2009 |
04 |
| 023 |
15941065 |
BRACKET, FRT LIC PLT (PAINT TO MATCH) |
CK1, 2 (06) (VK3, Z75) |
2008-2009 |
01 |
| 023 |
25782363 |
BRACKET, FRT LIC PLT (PAINT TO MATCH) |
CK1 (06) (ULT, VK3, Z75) |
2008-2009 |
01 |
| 024 |
11515637 |
SCREW, FLT CSK, M4.2X1.41X13, 9.2 OD, 6172M, CC, TAP-BSSD, C/R (FRT OTR A/DFL) (**VPI 1-877-846-8243) |
|
2008-2009 |
06 |
| 025 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT OTR A/DFL)
|
2008-2009 |
06 |
|
| 026 |
25705182 |
БОЛТ, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249)
| CK1, 2 (06-36) |
2008-2009 |
AR |
|
| 027 |
22549046 |
SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (RAD GRL CTR PNL) |
|
2008-2009 |
26 |
| 028 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RAD UPR GRL)
|
2008-2009 |
02 |
|
| 029 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (PART OF 30)
|
2008-2009 |
06 |
|
| 030 |
25957701 |
GRILLE, RAD UPR (INCLS 29, 31) (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (SILVER)
| CK1 (06) (ULT, VGD, Z75) |
2008-2008 |
01 |
|
| 031 |
15126354 |
EMBLEM, RAD GRL (PART OF 30) (MEDALLION)
| CK1 (06) (ULT, VGD, Z75) |
2008-2008 |
01 |
|
| 032 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT BPR OTR FRT FIL) (8.977)
|
2008-2009 |
08 |
|
