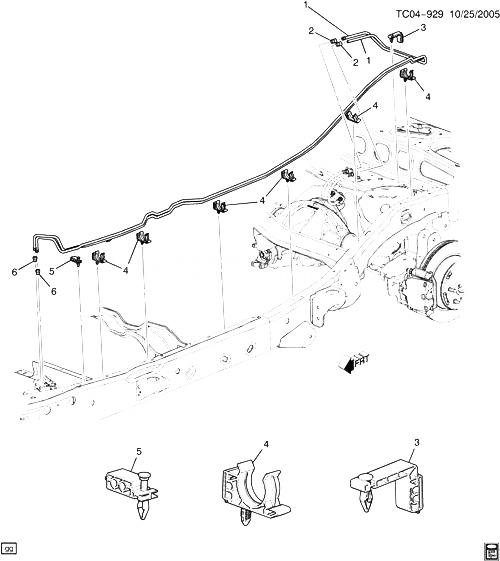

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) |
|
2007-2009 |
AR |
| 002 |
11518522 |
ГАЙКА, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (RR BRK FRT PIPE) |
|
2007-2009 |
02 |
| 003 |
11610034 |
CLIP, RR BRK FRT PIPE (CLIP HOLDS TWO 6.75 TUBE, FIT 8 DIA HOLE IN 3.2 THK PNL) |
CK107 (06) (JD9) |
2007-2009 |
01 |
| 004 |
11610035 |
CLIP, RR BRK FRT PIPE (6.9 X 20.4/77.4 X 15) (HOLD DIA 4.8, (2)6.75, 32MM TUBE, FIT 7.2 HOLE 1-5 THK PNL) |
CK107 (06) (JD9) |
2007-2009 |
05 |
| 005 |
11561578 |
CLIP, RR BRK FRT PIPE (31.72X17.07X15.0) (HOLDS (2) 6.75 TUBES, ROUTING CLIP) |
CK1 (06-36) (JD9) |
2007-2008 |
02 |
| 005 |
11610034 |
CLIP, RR BRK FRT PIPE (CLIP HOLDS TWO 6.75 TUBE, FIT 8 DIA HOLE IN 3.2 THK PNL) |
CK107 (06) (JD9) |
2007-2009 |
01 |
| 005 |
11610035 |
CLIP, RR BRK FRT PIPE (6.9 X 20.4/77.4 X 15) (HOLD DIA 4.8, (2)6.75, 32MM TUBE, FIT 7.2 HOLE 1-5 THK PNL) |
CK107 (06) (JD9) |
2007-2009 |
05 |
| 006 |
11562075 |
ГАЙКА, RR BRK FRT PIPE (M12X1.5X17) (INV FLARE) |
CK1, 2, 3 (JD9, JF3, JF7, JH6, JH7, J92) |
2008-2009 |
01 |
