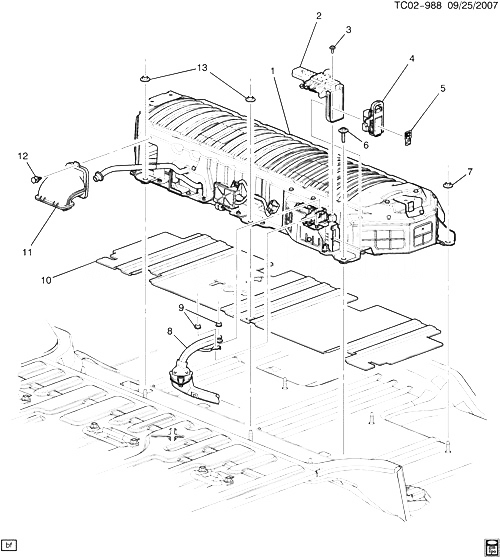

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
АККУМУЛЯТОР, DRV MOT GEN (СМ. ГРУППУ 02.000 АККУМУЛЯТОР/DRIVE MOTOR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2009 |
|
| 002 |
25905443 |
COVER, BAT NEG CBL TERM (HIGH VOLTAGE TERMINAL COVER LABELED 5443) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 003 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BAT NEG CBL TERM)
|
2008-2009 |
04 |
|
| 004 |
15293650 |
LEVER, DRV MOT BAT HIGH VOLTAGE MAN DISCONNECT (INCLS 5) |
CK1 (HP2) |
2008-2009 |
01 |
| 005 |
|
LABEL, HIGH VOLTAGE DISCONNECT (PART OF 4) |
|
2008-2009 |
|
| 006 |
11569660 |
BOLT-HEX W/CON WA, M8X1.25X40, 27 THD, 28 OD, GM6202M, GMW3200, TAPPIN (DRV MOT BAT TRAY) |
|
2008-2009 |
01 |
| 007 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) |
|
2008-2009 |
08 |
| 008 |
|
CABLE, BAT POS NEG (300 V) (СМ. ГРУППУ 02.000 АККУМУЛЯТОР ПРОВОДА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2009 |
|
| 009 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (DRV MOT BAT PWR CONT MDL HARN CONN) |
|
2008-2009 |
03 |
| 010 |
15294099 |
INSULATOR, BAT (LABELED 15294099) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 010 |
25961362 |
INSULATOR, BAT (LABELED 2591362) |
CK107 (06) (HP2) |
2008-2009 |
01 |
| 011 |
15293030 |
DUCT, BAT CLG AIR OTLT |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 011 |
25925258 |
DUCT, BAT CLG AIR OTLT (FAN CONNECTOR) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 011 |
25925287 |
DUCT, BAT CLG AIR OTLT |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 012 |
11589290 |
RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (BAT CLG AIR OTLT DUCT)
|
2008-2009 |
01 |
|
| 013 |
11609558 |
NUT-HEX W/CON WA, M8X1.25X7.5, 24 OD, 9 STL, GMW3200 SN-ZN (DRV MOT BAT TRAY) |
|
2008-2009 |
02 |
