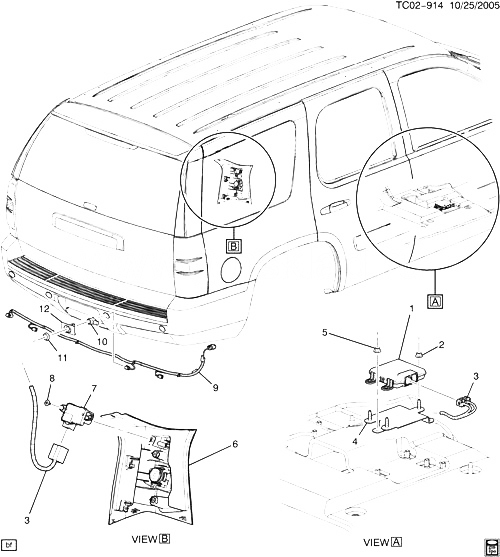

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25857380 |
MODULE, RR OBJECT ALARM (INCLS 4) (INCLUDES INTEGRAL PLASTIC BRKT--DISCARD PREVIOUS METAL BRKT 7 FASTNERS AS NEEDED) |
CK1, 2, 3 (UD7) |
2007-2009 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR OBJECT ALARM MDL)
|
2007-2009 |
03 |
|
| 003 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 004 |
|
BRACKET, RR OBJECT ALARM MDL (PART OF 1) |
|
2008-2009 |
|
| 005 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR OBJECT ALARM MDL)
|
2007-2009 |
03 |
|
| 006 |
|
MOLDING, BODY RR COR UPR GARN (INCLS 7, 8) (СМ. ГРУППУ 16.000 BODY INTERIOR/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 007 |
21997869 |
INDICATOR, RR OBJECT ALARM (PART OF 6) |
CK1, 2 (06) |
2007-2009 |
01 |
| 008 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 6) |
|
2007-2009 |
02 |
| 009 |
15950574 |
HARNESS, RR OBJECT SEN WRG
| CK107 (06) (T89, UD7, VGE) |
2007-2009 |
01 |
|
| 009 |
15950574 |
HARNESS, RR OBJECT SEN WRG
| CK107 (06) (VGE, Y91, Z75, Z88) (EXC T89) |
2007-2009 |
01 |
|
| 010 |
15239247 |
SENSOR KIT, RR OBJECT (INCLS 11) (PRIMED) (W/O ШЛАНГИ) (7.831)
| CK1, 2 (06-36) (VGE) |
2007-2009 |
04 |
|
| 010 |
19115805 |
SENSOR KIT, RR OBJECT (INCLS 11) (MOUNTED IN THE STEP PAD) (7.831) |
CK1, 2, 3 |
2007-2009 |
02 |
| 010 |
19115805 |
SENSOR KIT, RR OBJECT (INCLS 11) (MOUNTED IN THE STEP PAD) |
CK1, 2, 3 |
2007-2009 |
02 |
| 010 |
19115806 |
SENSOR KIT, RR OBJECT (INCLS 11) (PRIMER) (MOUNTED IN THE BUMPER) (7.831) |
CK1, 2, 3 |
2007-2009 |
02 |
| 010 |
19115806 |
SENSOR KIT, RR OBJECT (INCLS 11) (PRIMER) (MOUNTED IN THE BUMPER) |
CK1, 2, 3 |
2007-2009 |
02 |
| 011 |
|
RETAINER, RR OBJECT SEN (PART OF 10) |
|
2007-2009 |
|
| 012 |
|
ШЛАНГИ, RR OBJECT SEN (СМ. ГРУППУ 07.000 БАМПЕР ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (OUTBOARD) |
|
2007-2009 |
|
