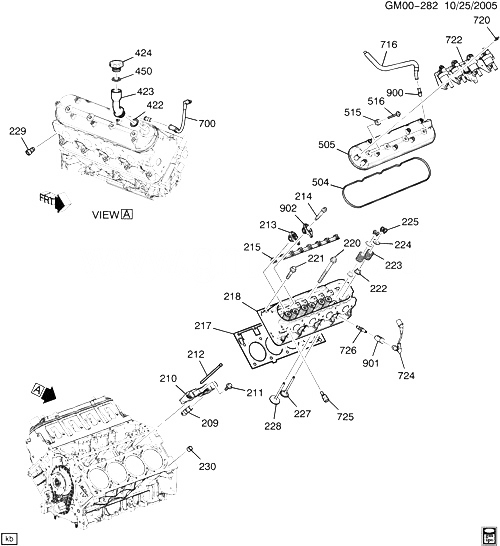

(GM00-282) - 2008 CK1 ДВИГАТЕЛЬ В СБОРЕ-6.2L V8 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ СОПРЯЖЕННЫЕ ДЕТАЛИ (L92/6.2-8) CADILLAC - ESCALADE (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
209 17122490 LIFTER, VLV (RLR) (NON-ACTIVE FUEL MANAGEMENT LIFTER) (ACDelco #HL124) CK1 (L92) 2007-2008 16
210 12595365 GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES) CK1 (L92) 2007-2008 04
211 12551163 БОЛТ, VLV LFTR GDE (SIDE) (SHORT) (M6X1.0X19) CK1 (L92) 2007-2008 04
212 10238852 ROD, VLV PUSH CK1 (L92) 2007-2008 16
213 10214664 ARM, VLV RKR (ARM, VLV RKR EXH. FOR INTKE VLV RKR ARM SEE PN 12569167, QTY 8) CK1 (L92) 2007-2008 08
214 12560961 БОЛТ, VLV RKR ARM PIV SUPT (M8X1.25X52.5) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
215 12600936 SUPPORT, VLV RKR ARM PIV CK1 (L92) 2007-2008 02
217 12610046 GASKET, CYL HD CK1 (L92) 2007-2008 02
218 12615361 HEAD, CYL (PARTIAL) CK1 (L92) 2007-2008 02
220 11571134 БОЛТ, CYL HD (M11X2X100) CK1 (L92) 2007-2008 20
221 12558840 БОЛТ, CYL HD (SHORT) (M8X1.25X45) CK1 (L92) 2007-2008 10
222 12482062 SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS) CK1 (L92) 2007-2008 01
222 12482063 SEAL KIT, INT VLV STEM OIL (W/ПРУЖИНА SHIM) (14.4MM) (INCLS 8 SEALS) CK1 (L92) 2007-2008 01
223 12589774 ПРУЖИНА, VLV CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
224 10166344 CAP, VLV SPR CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
225 10166345 KEY, VLV STEM CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 16
227 12582719 VALVE, EXH (STD) CK1 (L92) 2007-2008 08
228 VALVE, INT 2007-2008
228 12617533 VALVE, INT CK1 (L92) 2007-2008 08
228 12627970 VALVE, INT (SILCHROMME 1) CK1 (L92) 2007-2008 04
229 12553191 PLUG, CYL HD CORE HOLE (M12X1.5X21) (HEX, SOC) CK1 (L92) 2007-2008 01
230 12570326 PIN, CYL HD LOC CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 04
422 24100002 SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320) CK1 (L92) 2007-2008 01
423 12574386 TUBE, OIL FIL CK1 (L92, MYC, KC4) 2008-2008 01
423 12609624 TUBE, OIL FIL CK1 (L92, MYC, Z75) 2008-2008 01
424 12573337 CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 450) (ACDelco #FC208) CK1 (L92, MYC, KC4) 2008-2008 01
424 12577268 CAP, OIL FIL (MOBIL 1, SAE 5W30, NON-VENTED, W/SEAL) (INCLS 450) (ACDelco #FC209) CK1 (L92, MYC, Z75) 2008-2008 01
450 24100002 SEAL, OIL FIL CAP (O RING) (PART OF 424) (27.94MM I.D.) (SIZE #320) (1.745) CK1 (L92) 2007-2008 01
504 12612045 GASKET, VLV RKR ARM CVR (PART OF 505) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 02
505 12570427 COVER, VLV RKR ARM (INCLS 504, 515, 516, 900) (INCLSCOVER, GASKET, BOLT, DEFLECTOR, FITTING) CK1 (L92) 2007-2008 01
505 12582224 COVER, VLV RKR ARM (INCLS 504, 515, 516) (INCLSCOVER, GASKET, BOLT, DEFLECTOR, FITTING) CK1 (L92) 2007-2008 01
515 GROMMET, BOLT VLV RKR ARM CVR (PART OF 505, 516) 2008-2008
516 12577215 БОЛТ, VLV RKR ARM CVR (INCLS 515) (PART OF 505) (M6.0X1.0) (W/GROMMET, SLEEVE) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 08
700 12607406 TUBE, PCV (FRESH AIR) CK1 (L92) 2007-2008 01
716 12611592 TUBE, PCV (DIRTY AIR) CK1 (L92) 2007-2008 01
720 12554211 STUD, IGN COIL BRKT (HFH, M6X1X18) (3.330) (ACDelco #12554211) CK1 (L92) 2007-2008 10
722 COIL, IGN (СМ. ГРУППУ 02.000 COIL MODULE/IGNITION ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2008
724 89018057 WIRE, SPLG (INCLS 901) (*KIT1) (ACDelco #356F) CK1 (L92) 2007-2008 08
725 12608814 SENSOR, ENG COOL TEMP (ACDelco #213-4333) CK1 (L92, LY2, LY5, LY6, L76, LMG, LC9, LH6, LFA) 2008-2008 01
725 12608814 SENSOR, ENG COOL TEMP (1.150) (ACDelco #213-4333) CK1 (L92, LY2, LY5, LY6, L76, LMG, LC9, LH6, LFA) 2008-2008 01
726 12609877 СВЕЧА, (GAP 0.040) (ACDelco #41-985) (IRIDIUM) CK1 (L92) 2007-2008 08
900 12567915 FITTING, PCV (PART OF 505) CK1 (L92) 2007-2008 01
901 15336959 SHIELD, SPLG WIRE (PART OF 724) (ACDelco #8006) CK1 (L92) 2007-2008 08
902 12569167 ARM, INT VLV RKR (USE WITH QTY 08 OF 10214664) (ARM, VLV RKR INT. FOR EXHST VLV RKR ARM SEE PN 10214664, QTY=8) CK1 (43-06-36) (L92) 2007-2008 08
K01 89018058 WIRE KIT, SPLG (INCLS 724) (INCLS SET OF 8 LEADS) (ACDelco #748RR) CK1 (L92) 2007-2008 01
