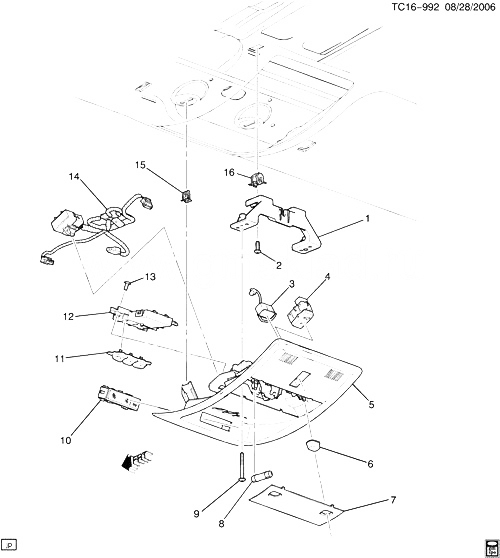

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15911047 |
BRACKET, RF RR CNSL (PART OF 5) |
CK1, 2, 3 |
2007-2009 |
01 |
| 002 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 5) |
|
2007-2009 |
02 |
| 003 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 5) (2-WAY CAVITY) |
CK1, 2, 3 (DK8) |
2007-2009 |
01 |
| 005 |
15836908 |
КОНСОЛЬ, RF (INCLS 1-4, 6-9, 11-16) (CASHMERE) (W/JCI TRANSMITTER 15145260) |
CK1 (06) (Z75, 30I) (EXC ARS, CF5) |
2007-2007 |
01 |
| 005 |
15889653 |
КОНСОЛЬ, RF (INCLS 1-4, 6-9, 11-16) (GRAY) (W/JCI TRANSMITTER 15145260) |
CK1 (06) (UG1, Z75, 19I) (EXC ARS, CF5) |
2007-2007 |
01 |
| 005 |
15913181 |
КОНСОЛЬ, RF (INCLS 1-4, 6-9, 11-16) (LT CASHMERE) (W/LEAR TRANSMITTER KIT 25807341) |
CK1 (06) (DK8, UG1, Z75, 30I) (EXC ARS, CF5) |
2007-2008 |
01 |
| 006 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 5) |
CK1, 2, 3 |
2007-2009 |
02 |
| 007 |
15911049 |
LENS, DM LP (PART OF 5) (1ST ROW)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 008 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 5) (ACDelco #L212-2) |
|
2007-2009 |
02 |
| 009 |
|
БОЛТ, RF CNSL (PART OF 5) |
|
2007-2009 |
|
| 010 |
22625546 |
INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) |
CK1, 2, 3 (EXC UC2, U19) |
2007-2008 |
01 |
| 010 |
22627868 |
INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) |
CK1, 2, 3 (U19) (EXPORT) |
2007-2009 |
01 |
| 011 |
|
PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 5) |
|
2007-2009 |
|
| 012 |
15145260 |
TRANSMITTER, GARAGE DR OPENER (PART OF 5) (W/O OWNERS INFO MANUAL) |
CK1 (06) (DK8, UG1, Z75) |
2007-2007 |
01 |
| 013 |
|
БОЛТ, RF CNSL (PART OF 5) |
|
2007-2009 |
|
| 014 |
|
HARNESS, КОНСОЛЬ JUMPER (PART OF 5) |
|
2007-2009 |
|
| 015 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 5)
|
2007-2009 |
02 |
|
| 016 |
11609345 |
ГАЙКА, PUSH-IN, 4.2, SAE 1050 STL, GMW3179 (PART OF 5) |
|
2007-2009 |
02 |
