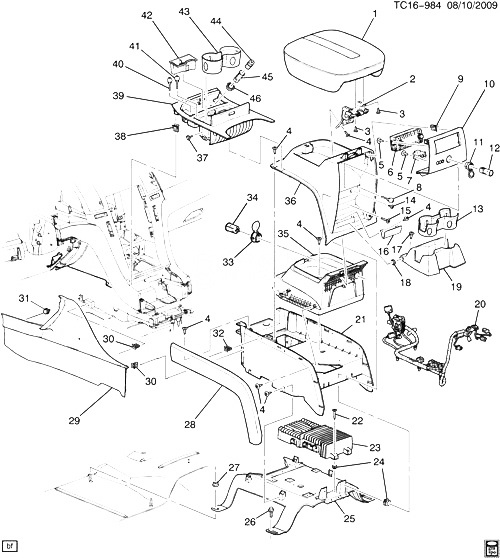

(TC16-984) - 2007 CK1(06) КОНСОЛЬ/ПОЛ ЧАСТЬ 1-LOWER (CADILLAC Z75) CADILLAC - ESCALADE (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 LID, F/TOP STOW COMPT (PART OF 36) (INCLS 2, 3) (СМ. ГРУППУ 16.000 КОНСОЛЬ FLOOR/UPPER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
002 HINGE, F/FLR CNSL COMPT DR (PART OF 1, 36) 2007-2007
003 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 1, 36) 2007-2009 04
004 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 36) 2007-2009 14
005 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (HTR A/C CONT OPG CVR) 2007-2009 06
006 15886900 MODULE, HTR A/C RDO CONT CK1 (06) (UK6, Y91, Z75, D07) 2007-2009 01
006 15886900 MODULE, HTR A/C RDO CONT (2.560) CK1 (06) (UK6, Y91, Z75, D07) 2007-2009 01
007 10375379 ADAPTER, AUDIO/VIDEO DISC PLYR (ACDelco #10375379) CK1, 2 (06) 2007-2009 01
008 22596346 BUMPER, F/FLR RR CNSL A/RST (10.242) CK1 (06-36) (Z75) 2007-2009 06
009 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (F/FLR CNSL SI T/PNL) 2007-2009 02
010 15833953 COVER, HTR A/C CONT OPG CK1 (06) (D07, UK6, U42, Y91, Z75) 2007-2009 01
011 25749635 RETAINER, ACSRY PWR RCPT (EBONY) (W/O CAP) CK1, 2, 3 2007-2009 01
012 25774623 RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2007-2009 01
013 15133100 LINER, F/FLR CNSL RR CUP HLDR (PART OF 19) CK1 (06-36) (Z75) 2007-2009 01
014 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 36) 2007-2009 02
015 11589106 SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 36) (10.774) 2007-2009 02
016 DETENT, R/CMPT ACC DR HDL (PART OF 36) 2007-2007
017 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 19) 2007-2009 02
018 15133101 BUSHING, F/FLR CNSL CUP HLDR DR HGE (PART OF 19) CK1 (06) (D07, Z75) 2007-2009 01
019 15133093 HOLDER, F/FLR CNSL RR CUP (INCLS 13, 17, 18) CK1 (06-36) (Z75) 2007-2009 01
020 15929132 HARNESS, F/FLR CNSL WRG CK1 (06) (U42, Z75) 2007-2007 01
021 PANEL, F/FLR CNSL TR (PART OF 36) 2007-2007
022 11589106 SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 36) (10.774) 2007-2009 04
023 20808898 УСИЛИТЕЛЬ, RDO SPKR (ACDelco #20808898) (LABELED 20808898, 25939529 OR 15937320) CK1 (06-36) (D07, UK6, Z75) 2007-2008 01
024 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 36) (10.701) 2007-2009 02
025 BRACKET, F/FLR CNSL (PART OF 36) 2007-2007
026 11562473 БОЛТ, F/SEAT (M12X1.75X45) CK1, 2, 3 2007-2009 04
027 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 2007-2009 04
029 15238666 PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА.) (EBONY) (16.081) CK1 (Z75, 19I) 2007-2009 01
029 15238667 PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА.) (CASHMERE) (16.081) CK1 (Z75, 30I) 2007-2008 01
029 15923060 PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА.) (EBONY) (16.081) CK1 (Z75, 19I) 2007-2009 01
029 15923061 PANEL, F/FLR CNSL SI TR FRT (INCLS 30, 31) (СМ. ГРУППУ 16.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА.) (CASHMERE) (16.081) CK1 (Z75, 30I) 2007-2008 01
030 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 29) 2007-2009 04
031 11562257 RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 29) (19.5 X 30.4 X 1.8) (14.683) CK1 (Z75) 2007-2009 03
032 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 28, 36) 2007-2009 10
033 15187371 RETAINER, ACSRY PWR RCPT (PART OF 36) (EBONY) (INCLS COVER) CK1, 2, 3 (D07) 2007-2008 01
034 25774623 RECEPTACLE, ACSRY PWR (PART OF 36) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2007-2009 01
035 TRAY, F/FLR CNSL STOR (PART OF 36) 2007-2007
036 25775479 COMPARTMENT, F/FLR (INCLS 1-4, 14-17, 21, 22, 24, 25, 28, 32-35) (EBONY) CK1 (06) (U42, Y91, Z75, 19I) 2007-2008 01
036 25775480 COMPARTMENT, F/FLR (INCLS 1-4, 14-17, 21, 22, 24, 25, 28, 32-35) (LT CASHMERE) CK1 (06) (U42, Z75, 30I) 2007-2009 01
036 25775485 COMPARTMENT, F/FLR (INCLS 1-4, 14-17, 21, 22, 24, 25, 28, 32-35) (EBONY) CK1 (06) (Y91, Z75, 19I) (EXC U42) 2007-2008 01
036 25775486 COMPARTMENT, F/FLR (INCLS 1-4, 14-17, 21, 22, 24, 25, 28, 32-35) (LT CASHMERE) CK1 (06) (Z75, 30I) (EXC U42) 2007-2008 01
037 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 39) 2007-2009 04
038 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 39) 2007-2009 04
039 15909298 BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 37, 38, 40-43, 45, 46) (CHOCOLATE BURL) CK1 (D07, Y91, Z75, 30I) 2007-2009 01
039 20820047 BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 37, 38, 40-43, 45, 46) (CHOCOLATE) CK1 (D07, Y91, Z75, 30I) 2007-2009 01
039 25775309 BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 37, 38, 40-43, 45, 46) (RUBY) CK1 (D07, Y91, Z75, 19I) 2007-2009 01
040 BUMPER, F/FLR CNSL ПЕПЕЛЬНИЦА DR (PART OF 39) 2007-2009
040 15683368 BUMPER, F/FLR CNSL ПЕПЕЛЬНИЦА DR (PART OF 39) (8.80 DIA) (CLOSED-STOP) (FRAME) (16.650) CK1 2007-2008 02
041 22596346 BUMPER, F/FLR RR CNSL A/RST (PART OF 39) (10.242) CK1 (06-36) (D07, Y91, Z75) 2007-2009 02
042 15132973 ПЕПЕЛЬНИЦА, F/FLR CNSL (PART OF 39) CK1 (Z75) 2007-2009 01
043 15132964 HOLDER, F/FLR CNSL CUP (PART OF 39) CK1 (D07, Y91, Z75) (EXC ULT) 2007-2009 01
044 11516140 LIGHTER, CIG (MAY NEED TO CHANGE RECEPTACLE IF LIGHTER DOESNT WORK OR USE ПЕПЕЛЬНИЦА PKG 17800493.) (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) CK1, 2, 3 2007-2008 01
044 11516140 LIGHTER, CIG (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) (9.709) (SERV CMP OF ПЕПЕЛЬНИЦА PKG) CK1, 2, 3 2007-2009 01
045 25776667 RECEPTACLE, ACSRY PWR (PART OF 39) (2 TERMINALS) CK1 (D07, Y91, Z75) 2007-2009 01
046 25749635 RETAINER, ACSRY PWR RCPT (PART OF 39) (EBONY) (W/O CAP) CK1, 2, 3 2007-2009 01
