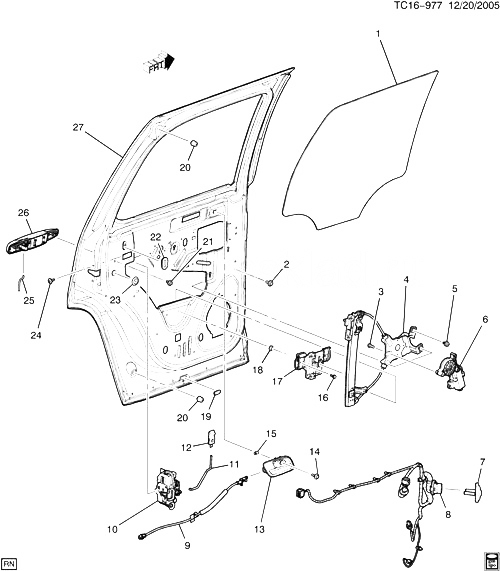

(TC16-977) - 2007-2009 CK107(06) АРМАТУРА ДВЕРИ/SIDE REAR ЧАСТЬ 2 CADILLAC - ESCALADE (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15140723 WINDOW, RR S/D CK107 (06) (Z75) (EXC AJ1) 2007-2009 01
001 15140724 WINDOW, RR S/D CK107 (06) (Z75) (EXC AJ1) 2007-2009 01
001 15140725 WINDOW, RR S/D CK107 (06) (AJ1, Z75) 2007-2009 01
001 15140726 WINDOW, RR S/D CK107 (06) (AJ1, Z75) 2007-2009 01
002 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO REG) 2007-2009 04
003 БОЛТ, RR S/D WDO REG (PART OF 4) 2007-2009
004 25885882 REGULATOR, RR S/D WDO (INCLS 3, 5, 6, 16, 17) (INCLS MOTOR) (ACDelco #25885882) CK107 (06) (A31) 2007-2009 01
004 25885883 REGULATOR, RR S/D WDO (INCLS 3, 5, 6, 16, 17) (INCLS MOTOR) (ACDelco #25885883) CK107 (06) (A31) 2007-2009 01
005 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (PART OF 4) 2007-2009 02
006 15844874 MOTOR, RR S/D WDO REG (PART OF 4) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (5B5) 2007-2009 01
006 15844874 MOTOR, RR S/D WDO REG (PART OF 4) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (A31) 2007-2009 01
006 15844877 MOTOR, RR S/D WDO REG (PART OF 4) (ACDelco #15844877) CK107 (06) (A31) 2007-2009 01
007 GROMMET, RR S/D DR LK DR WRG HARN (PART OF 8) 2007-2009
008 15924057 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (ASF, UQA, UQS) 2007-2007 01
008 15924057 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (UQA) (EXC ASF) 2007-2007 01
008 15924058 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (ASF, UQA, UQS) 2007-2007 01
008 15924058 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (UQA) (EXC ASF) 2007-2007 01
008 15924059 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (UQ3) 2007-2007 01
008 15924060 HARNESS, RR S/D DR WRG (INCLS 7) CK107 (06) (UQ3) (EXC ASF) 2007-2007 01
009 CABLE, RR S/D LKG (PART OF 10) 2007-2009
010 25876389 LATCH, RR S/D (INCLS 9) (W/ACTUATOR) CK107 (06) (AU3) 2007-2008 01
010 25876390 LATCH, RR S/D (INCLS 9) (INCLS ACTAUTOR) CK107 (06) (AU3) 2007-2008 01
011 15175416 ROD, RR S/D LAT CK107 (06) 2007-2009 01
011 15175417 ROD, RR S/D LAT CK107 (06) 2007-2009 01
012 15844616 KNOB, RR S/D LKG ROD (EBONY) CK1, 2 (06-36) (19I, 22I, 31I, 84I) 2007-2007 02
012 15844616 KNOB, RR S/D LKG ROD (EBONY) CK1, 2 (06-36) (WJ5, 88I) 2007-2009 02
012 15844617 KNOB, RR S/D LKG ROD (CASHMERE) CK1, 2 (06-36) (33I) 2007-2009 02
012 15844618 KNOB, RR S/D LKG ROD (TITANIUM) CK1, 2 (06-36) (83I, 88I) (EXC WJ5) 2007-2009 02
012 15844619 KNOB, RR S/D LKG ROD (CASHMERE) CK1 (30I) 2007-2008 02
012 15844620 KNOB, RR S/D LKG ROD (COCOA) CK1 (39I) 2007-2008 02
013 15920683 HANDLE, RR S/D I/S (EBONY) CK1 (06-36) (Z75, 19I) 2007-2009 01
013 15920684 HANDLE, RR S/D I/S (CASHMERE) (W/CHROME HANDLES) CK1 (06-36) (30I) 2007-2008 01
013 15920704 HANDLE, RR S/D I/S (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) 2007-2009 01
013 15920705 HANDLE, RR S/D I/S (CASHMERE) (W/CHROME HANDLES) CK1 (06-36) (30I) 2007-2008 01
013 15939073 HANDLE, RR S/D I/S (EBONY) (W/CHROME REL HDL) CK1, 2 (06-36) (19I, 22I, 31I, 84I) 2007-2009 01
014 11570136 БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (RR S/D T/PNL) 2007-2009 04
015 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (RR S/D T/PNL) 2007-2009 04
016 PIN, RR S/D WDO REG GDE (PART OF 4) 2007-2009
017 BRACKET, RR S/D WDO REG GDE (PART OF 4) 2007-2009
018 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR S/D WDO REG) 2007-2009 04
019 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM) (ROUND) (12.179) CK1, 2, 3 2007-2009 02
020 15039965 BUMPER, RR S/D CK1, 2 (06) 2007-2009 04
021 11517515 BOLT-HFH, M6X1X10, THD 8.5, OD 14.2, 9.8, GM6280, HDR PT. (RR S/D O/S HDL) 2007-2009 04
022 25887975 GROMMET, RR S/D LKG ROD CK1, 2, 3 2007-2009 02
023 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM) (ROUND) (12.179) CK1, 2, 3 2007-2009 02
024 11609341 SCREW, RD WA HD 6-LOBE M6X1X19 (RR S/D LAT) 2007-2009 06
025 15831547 ROD, RR S/D O/S HDL CK107 (06) 2007-2009 01
025 15831548 ROD, RR S/D O/S HDL CK107 (06) 2007-2009 01
026 15930553 HANDLE, RR S/D O/S (BLACK NON-TEXTURED BASE, PAINT TO MATCH, PLATINUM CHROME HDL) (T/W 15832413) CK1 (06-36) (BPH) 2007-2008 01
026 15930554 HANDLE, RR S/D O/S (BLACK NON-TEXTURED BASE, PAINT TO MATCH, PLATINUM CHROME HDL) (T/W 15832413) CK1 (06-36) (BPH) 2007-2008 01
026 25960521 HANDLE, RR S/D O/S (CHROME) CK1, 2, 3 2007-2009 01
026 25960522 HANDLE, RR S/D O/S (CHROME) CK1, 2, 3 2007-2009 01
027 DOOR, RR SI (СМ. ГРУППУ 16.000 КУЗОВНЫЕ ДЕТАЛИSIDE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (16.160) 2007-2009
