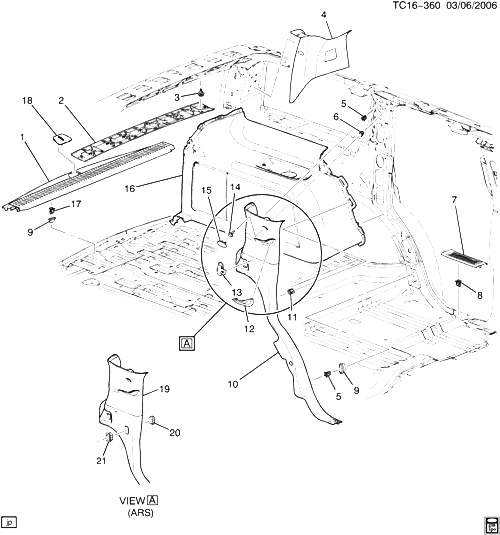

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931763 |
PLATE, R/FLR RR TR (INCLS 17, 18) (EBONY) (W/ CADILLAC INSERT)
| CK1 (06) (Y91, Z75, 19I) |
2007-2009 |
01 |
|
| 001 |
15931764 |
PLATE, R/FLR RR TR (INCLS 17, 18) (CASHMERE) (INCLS CADILLAC INSERT) |
CK1 (06) (Y91, Z75, 30I) |
2007-2008 |
01 |
| 002 |
15905682 |
MOLDING, BK BODY OPG GARN (INCLS 3) (CASHMERE) |
CK1, 2 (06) (30I) |
2007-2008 |
01 |
| 002 |
15905683 |
MOLDING, BK BODY OPG GARN (INCLS 3) (GRAY) |
CK1, 2 (06) (Z75, 19I) |
2007-2009 |
01 |
| 003 |
11561654 |
RETAINER, BODY RR COR G/MLDG (PART OF 2) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800)
| CK1, 2 (06) |
2007-2009 |
06 |
|
| 004 |
|
MOLDING, BODY RR COR UPR GARN (СМ. ГРУППУ 16.000 ОТДЕЛКА/INTERIOR-BODY SIDE-QUARTER DETAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10, 19)
|
2007-2009 |
10 |
|
| 006 |
11609651 |
CLIP, BODY L/PLR G/MLDG (PART OF 10, 19) (M21.8X15.0X20.5) (14.731)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 007 |
15873284 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (Y91, Z75, 30I) |
2007-2008 |
02 |
| 007 |
15873285 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) (W/CADILLAC INSERT)
| CK107 (Y91, Z75, 19I) |
2007-2009 |
02 |
|
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7)
|
2007-2009 |
04 |
|
| 009 |
15043000 |
PLUG, R/CMPT SILL TR PLT HOLE (38.0 X 17.0 X 18.0MM) (OBLONG) (16.600) |
CK1, 2 (06) |
2007-2009 |
10 |
| 010 |
25797296 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (CASHMERE) |
CK107 (06) (Z75, 30I) (EXC ARS) |
2007-2008 |
01 |
| 010 |
25797297 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (EBONY) (CLOTH WRAPPED) |
CK107 (06) (Z75, 19I) (EXC ARS) |
2007-2009 |
01 |
| 010 |
25797299 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (CASHMERE) |
CK107 (06) (Z75, 30I) (EXC ARS) |
2007-2008 |
01 |
| 010 |
25797300 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (EBONY) (MOLDED IN PLASTIC) |
CK107 (06) (Z75, 19I) (EXC ARS) |
2007-2009 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10, 19)
|
2007-2009 |
08 |
|
| 012 |
15295389 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 30I) |
2007-2008 |
01 |
| 012 |
15295390 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2009 |
01 |
| 012 |
15295393 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 30I) |
2007-2008 |
01 |
| 012 |
15295394 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2009 |
01 |
| 013 |
15214081 |
GUIDE, R/SEAT SHLDR BELT (PART OF 10, 19) (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2008 |
02 |
| 013 |
15220494 |
GUIDE, R/SEAT SHLDR BELT (PART OF 10, 19) (CASHMERE) |
CK1 (06) (Z75, 30I) |
2007-2008 |
02 |
| 014 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 10, 19) (8.977)
|
2007-2009 |
02 |
|
| 015 |
15278075 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (GRAY)
| CK107 (06) (19I, 83I, 84I) |
2007-2008 |
01 |
|
| 015 |
15278076 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (GRAY)
| CK107 (06) (19I, 83I, 84I) |
2007-2008 |
01 |
|
| 015 |
15278079 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2007 |
01 |
| 015 |
15278080 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2007 |
01 |
| 015 |
15278081 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 30I) |
2007-2008 |
01 |
| 015 |
15278082 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 30I) |
2007-2008 |
01 |
| 016 |
|
PANEL, BODY SI TR (СМ. ГРУППУ 16.000 ОТДЕЛКА/INTERIOR-BODY SIDE-QUARTER DETAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 017 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1)
|
2007-2009 |
10 |
|
| 018 |
15274516 |
COVER, L/GATE LK STKR (PART OF 1) (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
01 |
| 018 |
15274517 |
COVER, L/GATE LK STKR (PART OF 1) (LT CASHMERE) |
CK1, 2 (06) (Z75, 30I) |
2007-2008 |
01 |
| 019 |
25797293 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (CASHMERE) |
CK107 (06) (ARS, Z75, 30I) |
2007-2008 |
01 |
| 019 |
25797294 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (EBONY) |
CK107 (06) (ARS, Z75, 19I) |
2007-2009 |
01 |
| 019 |
25797302 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (CASHMERE)
| CK107 (06) (ARS, Z75, 30I) |
2007-2008 |
01 |
|
| 019 |
25797303 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (EBONY) |
CK107 (06) (ARS, Z75, 19I) |
2007-2009 |
01 |
| 020 |
15113408 |
SWITCH, R/SEAT ADJR (PART OF 19) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2009 |
01 |
| 021 |
15214084 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (EBONY) |
CK1, 2 (06) (ARS, 19I, 84I) |
2007-2008 |
02 |
| 021 |
15810644 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (CASHMERE) |
CK1 (06) (ARS, Z75, 30I) |
2007-2008 |
02 |
