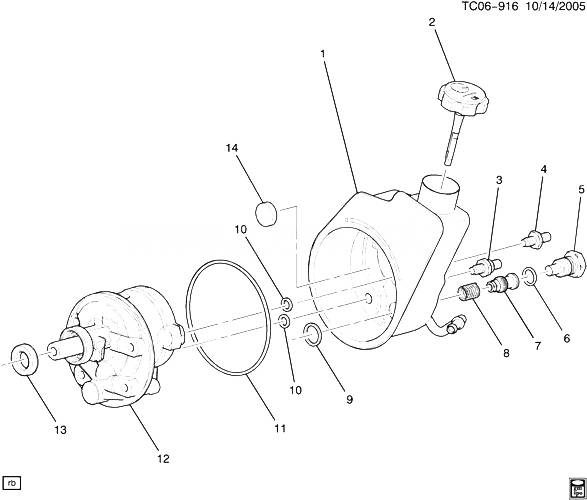

(TC06-916) - 2007-2008 CK1 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASM (LC9/5.3-3,LH6/5.3M,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26045594 RESERVOIR KIT, P/S FLUID (INCLS 6, 9-11) (PART OF 12) CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) 2007-2008 01
002 26095194 CAP, P/S FLUID RSVR (PART OF 12) CK1, 2, 3 2007-2009 01
003 26009574 STUD, P/S FLUID RSVR (PART OF 12) (M10X1.5X16) (SHORT) (6.606) CK1, 2, 3 2007-2009 01
004 15241681 STUD, P/S FLUID RSVR (PART OF 12) (LONG) CK1, 2, 3 2007-2009 01
005 26025709 FITTING, P/S PUMP (PART OF 12) (*KIT2) CK1, 2, 3 2007-2009 01
006 26020642 SEAL, P/S PUMP FTG (O RING) (PART OF 1, 12) (14.5MM I.D.) (*KIT1) (6.635) CK1, 2, 3 2007-2009 01
007 26065843 VALVE, P/S PUMP FLOW CONT (PART OF 12) (VALVE ONLY) (*KIT2) CK1, 2, 3 2007-2009 01
008 ПРУЖИНА, P/S PUMP FLOW C/VLV (PART OF 12) (*KIT2) 2007-2008
008 ПРУЖИНА, P/S PUMP FLOW C/VLV (PART OF 12) (*KIT2) 2007-2009
009 SEAL, P/S PUMP MOT HSG (O RING) (PART OF 1, 12) (*KIT1) 2007-2008
009 SEAL, P/S PUMP MOT HSG (O RING) (PART OF 1, 12) (*KIT1) 2007-2009
010 SEAL, P/S PUMP MOT HSG (O RING) (PART OF 1, 12) (*KIT1) 2007-2008
010 SEAL, P/S PUMP MOT HSG (O RING) (PART OF 1, 12) (*KIT1) 2007-2009
011 SEAL, P/S PUMP RSVR (O RING) (PART OF 1, 12) (*KIT1) 2007-2008
011 SEAL, P/S PUMP RSVR (O RING) (PART OF 1, 12) (*KIT1) 2007-2009
012 15909824 PUMP, P/S (INCLS 1-11, 13, 14) CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) 2007-2008 01
013 15277770 SEAL, P/S PUMP SHF (PART OF 12) (I.D.22.78MM) (USED W/19MM SHAFT) CK1, 2, 3 2007-2009 01
014 MAGNET, P/S FLUID RSVR (PART OF 12) 2007-2008
014 MAGNET, P/S FLUID RSVR (PART OF 12) 2007-2009
K01 15825938 SEAL KIT, P/S PUMP (INCLS 6, 9-11) (FRT SEAL NOT INCL) CK1, 2, 3 2007-2009 01
K02 15246463 VALVE KIT, P/S PUMP FLOW CONT (INCLS 5, 7, 8) CK1, 2, 3 2007-2009 01
