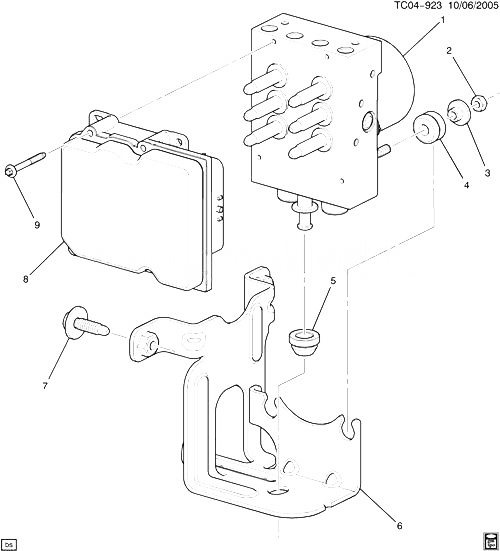

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15905736 |
VALVE KIT, BRK PRESS MOD (INCLS 8, 9) |
CK1 (06-36) (JD9) (EXC JL0) |
2007-2007 |
01 |
| 001 |
15942062 |
VALVE KIT, BRK PRESS MOD (INCLS 8, 9) (ACDelco #15942062) |
C1 (06) (JD9, JL0) |
2007-2007 |
01 |
| 002 |
|
ГАЙКА, BRK PRESS MOD VLV (PART OF 5) |
|
2007-2009 |
|
| 003 |
|
WASHER, BRK PRESS MOD VLV (PART OF 5) |
|
2007-2009 |
|
| 004 |
|
INSULATOR, BRK PRESS MOD VLV BRKT (PART OF 5) |
|
2007-2009 |
|
| 005 |
15297115 |
INSULATOR KIT, BRK PRESS MOD VLV (INCLS 2-4) |
CK1 (06-36) (EXC J92) |
2007-2007 |
01 |
| 006 |
15125563 |
BRACKET, BRK PRESS MOD VLV |
CK1 (06-36) (JD9) |
2007-2009 |
01 |
| 007 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (BRK PRESS MOD VLV BRKT) (ACDelco #11570082)
|
2007-2009 |
03 |
|
| 008 |
15905737 |
MODULE KIT, ELEK BRK CONT (PART OF 1) (INCLS 9) (ACDelco #15905737) |
CK1 (06-36) (JD9) (EXC JL0) |
2007-2007 |
01 |
| 008 |
15942060 |
MODULE KIT, ELEK BRK CONT (PART OF 1) (INCLS 9) (ACDelco #15942060) |
C1 (06) (JD9, JL0) |
2007-2007 |
01 |
| 009 |
22688153 |
БОЛТ, ELEK BRK CONT MDL (ECU TO HCU ATTACH) (PART OF 1, 8) |
CK1 (JD9, JF3, JF7) |
2007-2009 |
04 |
