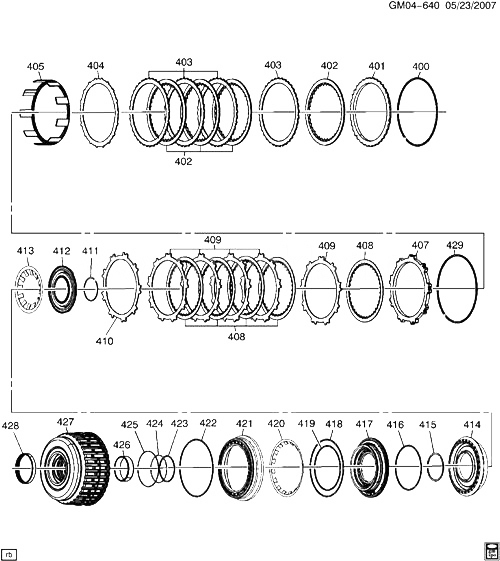

(GM04-640) - 2007-2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYC) (6L80) 1-2-3-4 3-5 REVERSE ДЕТАЛИ СЦЕПЛЕНИЯ CADILLAC - ESCALADE (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
400 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) CK1 (MYC) 2007-2009 01
400 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) CK1 (MYC) 2007-2009 01
400 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) CK1 (MYC) 2007-2009 01
400 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) CK1 (MYC) 2007-2009 01
401 24224149 PLATE, 3-5 REV CLU BKG CK1 (MYC) 2007-2009 01
402 24224148 PLATE, 3-5/REV CLU (PKG OF 5) (FIBER) (*KIT4) CK1 (06-36) (L92, MYC) 2007-2007 01
403 24232498 PLATE, 3-5 REV CLU (PKG OF 5) (STEEL) CK1 (MYC) 2007-2009 01
404 24239828 PLATE, 3-5 REV CLU (WAVED) CK1 (MYC) 2007-2009 01
405 24224633 RING, 3-5-REV CLU APPLY (ACDelco #24224633) CK1 (MYC) 2007-2009 01
407 24222632 PLATE, 1-2-3-4 CLU BKG CK1 (MYC) 2007-2009 01
408 24224147 PLATE, 1-2-3-4 CLU (PKG OF 6) (FIBER) (*KIT4) CK1 (MYC) 2007-2009 01
409 24238701 PLATE, 1-2-3-4 CLU CK1 (MYC) 2007-2007 01
410 24239615 PLATE, 1-2-3-4 CLU (WAVED) CK1 (MYC) 2007-2009 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (INCLS 415) (*KIT1, KIT2) 2007-2009
412 24224708 DAM, 1-2-3-4 CLU PSTN CK1 (MYC) 2007-2009 01
413 24224707 ПРУЖИНА, 1-2-3-4 CLU CK1 (MYC) 2007-2009 01
414 24224146 PISTON, 1-2-3-4 CLU CK1 (MYC) 2007-2007 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (PART OF 411) (*KIT1, KIT2) 2007-2009
416 SEAL, 1-2-3-4 CLU PSTN (*KIT1, KIT3) 2007-2009
418 SEAL, 3-5/REV CLU PSTN DAM (O RING) (*KIT3) 2007-2009
419 SEAL, 3-5-REV CLU PSTN INR (*KIT1, KIT3) 2007-2009
420 24224878 ПРУЖИНА, 3-5-REV CLU CK1 (06-36) (MYC) 2007-2007 01
421 24234213 PISTON, 3-5/REV CLU (INCLS 422) CK1 (MYC) 2007-2007 01
422 SEAL, 3-5-REV CLU PSTN OTR (PART OF 421) (*KIT3) 2007-2009
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2007-2009
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2009
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2009
426 BUSHING, 1-2-3-4 3-5/REV CLU HSG RR (PART OF 427) 2007-2009
427 24237185 ШЛАНГИ, 1-2-3-4 3-5 REV CLU (INCLS 426) (ORDER T/W 24226393) CK1 (MYC) 2007-2009 01
428 24226393 BEARING, 1-2-3-4 3-5-REV CLU CK1 (MYC) 2007-2009 01
429 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) CK1 (MYC) 2007-2009 01
429 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) CK1 (MYC) 2007-2009 01
429 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) CK1 (MYC) 2007-2009 01
429 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) CK1 (MYC) 2007-2009 01
K01 24248578 SEAL KIT, A/TRNS SERV (INLCS 411, 415, 416, 419, 423-425) (FULL TRANS) (ACDelco #24248578) CK1 (L92, MYC) 2007-2009 01
K02 24237851 RING KIT, RET (INCLS 411, 415) (1234 DAM, 1234 HSG, 456 DAM) (4.224) CK1 (MYC) 2007-2009 01
K03 24243894 SEAL KIT, A/TRNS SERV (INCLS 416, 418, 419, 422-425) (CLUTCHES) (ACDelco #24243894) CK1 (06-36) (MYC) 2007-2007 01
K04 24236940 PLATE KIT, CLU (INCLS 402, 408) (ACDelco #24236940) CK1 (06-36) (MYC) 2007-2007 01
