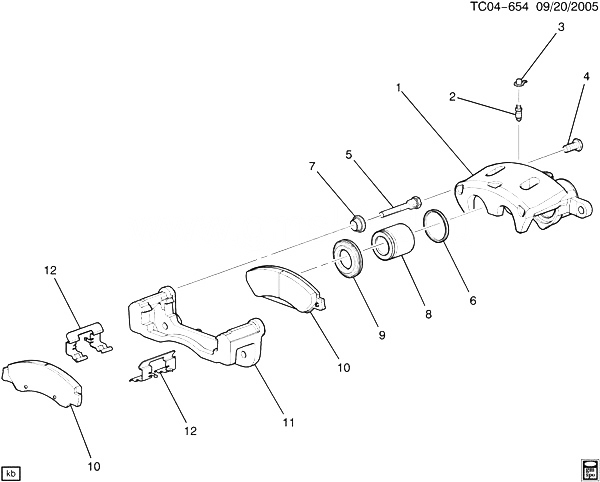

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15904194 |
CALIPER, FRT BRK (INCLS 2, 3, 6-9) (ACDelco #172-2402)
| CK1 (JD9, JF3, JF7) |
2007-2007 |
02 |
|
| 001 |
15904195 |
CALIPER, FRT BRK (INCLS 2, 3, 6-9) (ACDelco #172-2408)
| CK1 (JD9, JF3, JF7) |
2007-2007 |
01 |
|
| 002 |
25846360 |
VALVE, FRT BRK CLPR BLEDR (DELPHI CHASSIS, M10 X 1.5) (PART OF 1) (M10X1.5) (ACDelco #25846360) |
CK1, 2, 3 |
2007-2008 |
02 |
| 003 |
18009891 |
COVER, FRT BRK BLEDR SCREW (PART OF 1) (M10X1.5 THD) (4.665) |
CK1 (JD9, JF3, JF7) |
2007-2007 |
02 |
| 003 |
18009891 |
COVER, FRT BRK BLEDR SCREW (PART OF 1) (M10X1.5 THD) (4.665) |
CK1, 2, 3 (JH6) |
2007-2007 |
02 |
| 004 |
15125961 |
БОЛТ, FRT BRK CLPR BRKT (*KIT1, KIT3) |
CK1 |
2007-2009 |
08 |
| 005 |
|
PIN, FRT BRK CLPR GDE (*KIT1) |
|
2007-2009 |
|
| 006 |
25951292 |
SEAL KIT, FRT BRK CLPR PSTN (INCLS 9) (PART OF 1)
| CK1 |
2007-2009 |
02 |
|
| 007 |
|
BUSHING, FRT BRK CLPR BOLT INR (PART OF 1) (*KIT1, KIT2) |
|
2007-2009 |
|
| 008 |
15125962 |
PISTON, FRT BRK CLPR (PART OF 1) |
CK1 |
2007-2009 |
04 |
| 009 |
|
BOOT, FRT BRK CLPR PSTN (PART OF 1, 6) |
|
2007-2009 |
|
| 010 |
|
PAD, FRT DISC BRK INR (*KIT3) |
|
2007-2009 |
|
| 010 |
|
PAD, FRT DISC BRK OTR (*KIT3) |
|
2007-2009 |
|
| 012 |
|
SHIM, FRT DISC BRK PAD VIB (*KIT1, KIT3) |
|
2007-2009 |
|
| K01 |
88963550 |
PIN KIT, FRT BRK CLPR GDE (INCLS 4, 5, 7, 12) |
C1 (JD9) |
2007-2007 |
02 |
| K01 |
88963550 |
PIN KIT, FRT BRK CLPR GDE (INCLS 4, 5, 7, 12) |
C1 (JF3, JF7) (EXC PPV) |
2007-2007 |
02 |
| K02 |
15299068 |
BUSHING KIT, FRT BRK CLPR GDE PIN (INCLS 7)
| CK1 |
2007-2009 |
01 |
|
| K03 |
25910429 |
PAD KIT, FRT DISC BRK (INCLS 4, 10, 12) (ACDelco #171-0988) |
C107 (06) (PPV) |
2007-2007 |
01 |
| K03 |
25910431 |
PAD KIT, FRT DISC BRK (INCLS 4, 10, 12) (ACDelco #171-0974)
| CK1 (EXC JL4, PPV) |
2007-2007 |
01 |
|
| K03 |
25918341 |
PAD KIT, FRT DISC BRK (INCLS 4, 10, 12) (ACDelco #171-0975)
| CK1 (JL4) (EXC PPV) |
2007-2007 |
01 |
|
