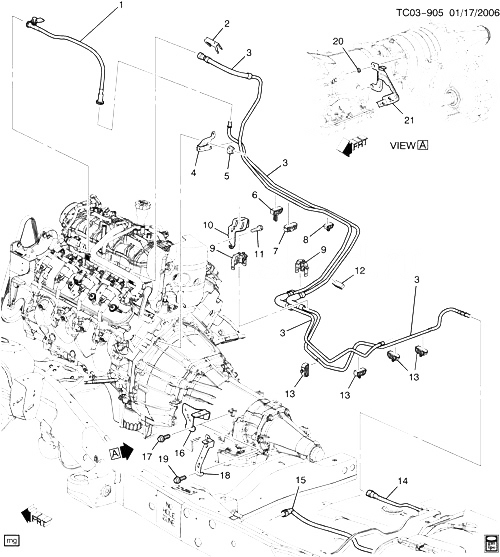

(TC03-905) - 2007 CK1(06-36) СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT (LC9/5.3-3,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE (2WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12617169 TUBE, EVAP EMIS CNSTR PURGE CK1, 2, 3 (L76, L92) 2007-2007 01
002 22695614 RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE) CK1, 2, 3 (LC9, LH6, LMG, LMM, LY2, LY5, LY6, L76, L92, LU3) 2007-2007 01
003 15836676 HOSE, FUEL FEED EVAP EMIS RTN CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L92) 2007-2007 01
004 15085402 BRACKET, FUEL FEED EVAP EMIS RTN HOSE CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L92) 2007-2007 01
004 15085402 BRACKET, FUEL FEED EVAP EMIS RTN HOSE CK1 (06-36) (LY2, LY5, L76, L92, LC9, LMG) 2007-2007 01
005 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) 2007-2007 01
006 15168648 CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) CK1, 2 (06-36) 2007-2007 01
007 15168645 CLIP, FUEL FEED EVAP EMIS RTN HOSE (RETAINER) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L92) 2007-2007 01
008 15085405 CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L92) 2007-2007 01
009 15085404 CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L92) 2007-2007 02
010 15126012 BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP CK1 (06-36) 2007-2007 01
011 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) (ACDelco #11570082) 2007-2007 01
012 15168649 CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) CK1, 2 (06-36) 2007-2007 01
013 15168646 CLIP, FUEL FEED EVAP EMIS RTN HOSE (2 TUBE) CK1 (06-36) 2007-2007 04
014 HOSE, EVAP EMIS CNSTR PURGE (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2007
015 HOSE, FUEL FEED (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2007
017 11516703 БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) 2007-2007 01
018 15124945 BRACKET, FUEL FEED RTN FRT HOSE CK1 (MYC) 2007-2007 01
019 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUEL FEED RTN FRT HOSE BRKT) 2007-2007 01
020 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (TRFER CASE) 2007-2007 06
