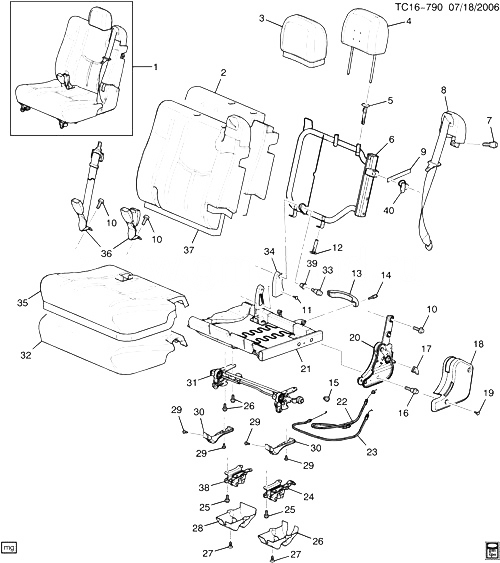

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, RR #2 (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) |
|
2003-2006 |
|
| 002 |
88941621 |
PAD, R/SEAT #2 BK CUSH |
CK157 (06) (AS3) |
2003-2006 |
01 |
| 003 |
88976643 |
COVER, R/SEAT H/RST (PEWTER) |
CK1, 2 (06) (AS3, 5T5, 92D) |
2003-2006 |
02 |
| 004 |
12477360 |
PAD, R/SEAT H/RST |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 005 |
12473301 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) |
CK1, 2 (AS3, 92D, 922) |
2003-2006 |
04 |
| 005 |
12478541 |
SUPPORT, R/SEAT H/RST (SHALE) (W/O BUTTON) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
04 |
| 006 |
12478371 |
FRAME, R/SEAT #2 BK CUSH |
CK157 (06) (AS3) |
2003-2006 |
01 |
| 007 |
12478381 |
БОЛТ, R/SEAT #2 BELT (RETR SI) (M12X1.75X50) (SHLDR) |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 008 |
89022629 |
BELT KIT, R/SEAT #2 (RETR SI) (SHALE) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 009 |
88937575 |
STRAP, R/SEAT #2 PULL (PEWTER) |
CK157 (06) (AS3, Y91, Z75, 922) |
2003-2006 |
01 |
| 009 |
88983947 |
STRAP, R/SEAT #2 PULL (SHALE) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 010 |
12478383 |
БОЛТ, R/SEAT #2 BELT (M12X1.75X36.5) |
CK1, 2 (06) |
2003-2006 |
06 |
| 011 |
20538173 |
RETAINER, D/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) |
CK1, 2, 3 |
2003-2006 |
AR |
| 013 |
15056573 |
HANDLE, ASST (PEWTER) |
CK1 (06) (92I) |
2003-2006 |
02 |
| 013 |
15056576 |
HANDLE, ASST (NEUTRAL) |
CK157 (06) (52I) |
2003-2006 |
02 |
| 013 |
15069441 |
HANDLE, ASST (SHALE) (СИДЕНЬЕ В СБОРЕ-RR #2) |
CK157 (06) (AS3, Y91, Z75, 152) |
2004-2006 |
02 |
| 013 |
15070536 |
HANDLE, ASST (NEUTRAL) |
CK157 (06) (AS3, Y91, Z75, 152) |
2005-2006 |
01 |
| 014 |
88943739 |
БОЛТ, ASST HDL (СИДЕНЬЕ В СБОРЕ-RR #2) (M6X1X22, 12 O.D.) |
CK157 (06) |
2003-2006 |
02 |
| 015 |
12478309 |
BUSHING, R/SEAT (CABLE) |
CK1, 2 (06) (AS3) |
2003-2006 |
03 |
| 016 |
19127809 |
БОЛТ, R/SEAT #2 BK CUSH LAT (M12X1.75X63.9) (16.679) |
CK1, 2 (06) (AS3) |
2003-2006 |
04 |
| 017 |
12479674 |
KNOB, R/SEAT #2 BK CUSH LAT REL (STAMPED #1) |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 018 |
88936913 |
COVER, R/SEAT #2 BK CUSH LAT (NEUTRAL) (INCLS I/B O/B) |
CK157 (06) (AS3, 52D, 522) |
2003-2006 |
01 |
| 018 |
88938644 |
COVER, R/SEAT #2 BK CUSH LAT (SHALE) (INCLS I/B O/B) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 019 |
12478375 |
БОЛТ, R/SEAT #2 RSR LAT FIN CVR (M5X12) |
CK1 (06) |
2003-2006 |
02 |
| 020 |
88939134 |
LATCH, R/SEAT #2 BK CUSH (W/HANDLE) |
CK1, 2 (06) (AS3) |
2003-2006 |
01 |
| 021 |
88977735 |
FRAME, R/SEAT #2 CUSH
| CK157 (06) (AS3) |
2003-2006 |
01 |
|
| 022 |
12478354 |
CABLE, R/SEAT #2 BK CUSH LAT REL |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 023 |
12478355 |
CABLE, R/SEAT #2 BK CUSH LAT (INTERLOCK) |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 024 |
19127807 |
LATCH, R/SEAT #2 LOAD FLR |
CK157 (06) (AS3) |
2003-2006 |
01 |
| 025 |
12478382 |
БОЛТ, R/SEAT #2 (LATCH MTG) (M10X1.50X28.0)
| CK1, 2 (06) (AS3) |
2003-2006 |
12 |
|
| 027 |
12473307 |
RETAINER, R/SEAT #2 BK CUSH CVR (SCREW IN) (16.720) |
CK157 (06) |
2003-2006 |
06 |
| 029 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (SCREW-ROUND WASHER) (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
AR |
| 030 |
12479937 |
COVER, R/SEAT LAT FIN (NEUTRAL) |
CK157 (06) (AS3, 52D) |
2003-2006 |
01 |
| 030 |
12479942 |
COVER, R/SEAT LAT FIN (NEUTRAL) |
CK157 (06) (AS3, 52D) |
2003-2006 |
01 |
| 030 |
88937902 |
COVER, R/SEAT LAT FIN (NEUTRAL) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 030 |
88937904 |
COVER, R/SEAT LAT FIN (NEUTRAL) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 030 |
88937910 |
COVER, R/SEAT LAT FIN (PEWTER) |
CK157 (06) (AS3, Y91, Z75, 922) |
2003-2006 |
01 |
| 030 |
88937912 |
COVER, R/SEAT LAT FIN (PEWTER) (16.682) |
CK157 (06) (AS3, Y91, Z75, 922) |
2003-2006 |
01 |
| 031 |
12478359 |
LATCH, R/SEAT #2 LOAD FLR (FRT) (INCLS ANTI RATTLE BUMPERS) |
CK1 (06) (AS3) |
2003-2006 |
01 |
| 032 |
88941623 |
PAD, R/SEAT #2 CUSH |
CK157 (06) (AS3) |
2003-2006 |
01 |
| 033 |
12476887 |
БОЛТ, R/SEAT #2 (M10X1.5) (W/BUSHING) |
CK157 (06) (AS3) |
2003-2006 |
01 |
| 034 |
88936919 |
COVER, R/SEAT #2 BK CUSH HGE FIN (NEUTRAL) |
CK157 (06) (AS3, 522) |
2003-2006 |
01 |
| 034 |
88936919 |
COVER, R/SEAT #2 BK CUSH HGE FIN (NEUTRAL) |
CK157 (06) (AS3, 52D) |
2003-2006 |
01 |
| 034 |
88936926 |
COVER, R/SEAT #2 BK CUSH HGE FIN (PEWTER) |
CK157 (06) (AS3, 92I) |
2003-2006 |
01 |
| 034 |
88937903 |
COVER, R/SEAT #2 BK CUSH HGE FIN (NEUTRAL) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 035 |
89040878 |
COVER, R/SEAT #2 CUSH (PEWTER) |
CK157 (06) (AS3, Y91, Z75, 922) |
2003-2006 |
01 |
| 035 |
89040879 |
COVER, R/SEAT #2 CUSH (SHALE) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 036 |
88940135 |
BELT KIT, R/SEAT #2 (CTR) (PEWTER) (INCLS BKL/BKL BKL/LAT) |
CK1, 2 (06) (AS3, 92I) |
2003-2006 |
01 |
| 036 |
88940137 |
BELT KIT, R/SEAT #2 (CTR) (NEUTRAL) (INCLS BKL/BKL BKL/LAT) |
CK1, 2 (06) (AS3, 52I) |
2003-2006 |
01 |
| 036 |
88940138 |
BELT KIT, R/SEAT #2 (CTR) (SHALE) (INCLS BKL/BKL BKL/LAT) |
CK1 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
01 |
| 037 |
89040872 |
COVER, R/SEAT #2 BK CUSH (PEWTER) |
CK157 (06) (AS3, Y91, Z75, 922) |
2004-2006 |
01 |
| 037 |
89040873 |
COVER, R/SEAT #2 BK CUSH (SHALE) |
CK157 (06) (AS3, Y91, Z75, 152) |
2004-2006 |
01 |
| 038 |
19127806 |
LATCH, R/SEAT #2 LOAD FLR |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 039 |
88936872 |
BUSHING, R/SEAT BK CUSH LAT (LATCH) |
CK1, 2 (06) (AS3) |
2003-2006 |
02 |
| 040 |
15069120 |
GUIDE, R/SEAT #2 SHLDR BELT (LOWER COMFORT GUIDE) (SHALE) |
CK157 (06) (AS3, Y91, Z75, 152) |
2003-2006 |
02 |
| 040 |
15755985 |
GUIDE, R/SEAT #2 SHLDR BELT (PEWTER) (LOWER COMFORT GUIDE) |
CK1, 2 (06) (92I) |
2003-2006 |
02 |
| 040 |
15755986 |
GUIDE, R/SEAT #2 SHLDR BELT (NEUTRAL) (LOWER COMFORT GUIDE) |
CK1, 2 (06) (52I) |
2003-2006 |
02 |
