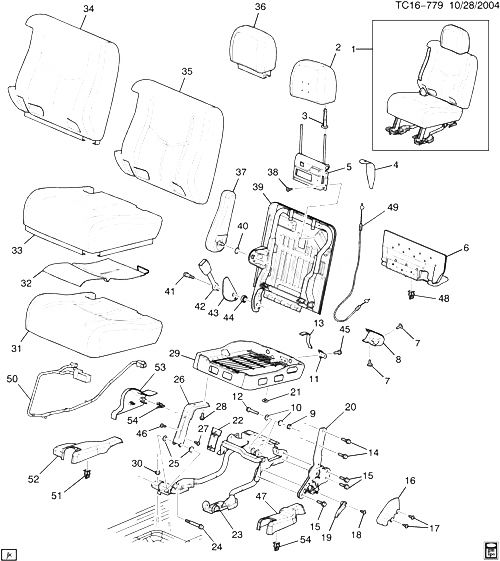

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) |
|
2003-2006 |
|
| 002 |
88940648 |
PAD, R/SEAT H/RST |
CK157 (06) (AL4) (EXC AX4) |
2003-2006 |
02 |
| 003 |
12473301 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) |
CK157 (06) (AL4, 922) |
2003-2006 |
04 |
| 003 |
12478541 |
SUPPORT, R/SEAT H/RST (SHALE) (W/O BUTTON) |
CK157 (06) (AL4, Y91, Z75, 152) |
2003-2006 |
04 |
| 004 |
88977044 |
COVER, R/SEAT H/RST SUPT (PEWTER) |
CK157 (06) (AL4) |
2003-2006 |
04 |
| 005 |
|
GUIDE, R/SEAT H/RST ADJ ROD (PART OF 39) |
|
2003-2006 |
|
| 006 |
88940841 |
PANEL, R/SEAT BK CUSH FIL (INCLS 48) (PEWTER) (INCLS CARPET) |
CK157 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 006 |
88940845 |
PANEL, R/SEAT BK CUSH FIL (INCLS 48) (PEWTER) |
CK157 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 006 |
88940849 |
PANEL, R/SEAT BK CUSH FIL (INCLS 48) (NEUTRAL) (INCLS CARPET) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 006 |
88940869 |
PANEL, R/SEAT BK CUSH FIL (INCLS 48) (NEUTRAL) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 007 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (ROUND WASHER, M4.2X1.41X13, FULL THD, 11 OD, 6010M, 4345M, C/R, AB PT) (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
02 |
| 008 |
88939098 |
COVER, R/SEAT LAT FIN (PEWTER) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1 (06) (AL4, Y91, Z75, 922) |
2003-2006 |
02 |
| 008 |
88939098 |
COVER, R/SEAT LAT FIN (PEWTER) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1 (06) (AL4, Y91, Z88, 922) |
2003-2006 |
02 |
| 008 |
88939099 |
COVER, R/SEAT LAT FIN (NEUTRAL) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1 (06) (AL4, Z75, 152) |
2003-2006 |
02 |
| 009 |
88934535 |
ГАЙКА, R/SEAT BK CUSH LAT STKR |
CK1, 2 (06) (AL4) |
2003-2006 |
04 |
| 010 |
12479648 |
BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) |
CK1, 2 (06) (AL4) |
2003-2006 |
06 |
| 011 |
12477379 |
LATCH, R/SEAT (CUSHION) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 012 |
12479655 |
БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 013 |
12479651 |
STRAP, R/SEAT BK CUSH LAT (SHALE) |
CK1 (06) (AL4, 152) |
2003-2006 |
02 |
| 013 |
12479651 |
STRAP, R/SEAT BK CUSH LAT (SHALE) |
CK1, 2 (06) (AL4, 522) |
2003-2006 |
02 |
| 013 |
88938335 |
STRAP, R/SEAT BK CUSH LAT (PEWTER) (16.720) |
CK157 (06) (AL4, Y91, Z75, 922) |
2003-2006 |
02 |
| 014 |
11562386 |
БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) |
|
2003-2006 |
04 |
| 015 |
12478382 |
БОЛТ, R/SEAT (M10X1.50X28.0) (16.679)
| CK1, 2 (06) (AL4, AT5) |
2003-2006 |
04 |
|
| 016 |
88941455 |
COVER, R/SEAT OTR RECL RR FIN (NEUTRAL) |
CK157 (06) (AL4, 522) |
2003-2006 |
01 |
| 016 |
88941456 |
COVER, R/SEAT OTR RECL RR FIN (PEWTER) |
CK157 (06) (AL4, 922) |
2003-2006 |
01 |
| 016 |
88941457 |
COVER, R/SEAT OTR RECL RR FIN (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 016 |
88941459 |
COVER, R/SEAT OTR RECL RR FIN (NEUTRAL) |
CK157 (06) (AL4, 522) |
2003-2006 |
01 |
| 016 |
88941460 |
COVER, R/SEAT OTR RECL RR FIN (PEWTER) |
CK157 (06) (AL4, 922) |
2003-2006 |
01 |
| 016 |
88941461 |
COVER, R/SEAT OTR RECL RR FIN (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 017 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (ROUND WASHER, M4.2X1.41X13, FULL THD, 11 OD, 6010M, 4345M, C/R, AB PT) (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
02 |
| 018 |
12473322 |
БОЛТ, R/SEAT RECL HDL (M4.8X1.59X20) |
CK1, 2 |
2003-2006 |
01 |
| 019 |
88976491 |
HANDLE, R/SEAT RECL (NEUTRAL) |
CK157 (06) (AL4, 522) |
2003-2006 |
01 |
| 019 |
88976492 |
HANDLE, R/SEAT RECL (NEUTRAL) |
CK157 (06) (AL4, 522) |
2003-2006 |
01 |
| 019 |
88976493 |
HANDLE, R/SEAT RECL (PEWTER) |
CK157 (06) (AL4, 922) |
2003-2006 |
01 |
| 019 |
88976494 |
HANDLE, R/SEAT RECL (PEWTER) |
CK157 (06) (AL4, 922) |
2003-2006 |
01 |
| 019 |
88976495 |
HANDLE, R/SEAT RECL (SHALE) |
CK157 (06) (AL4, Y91, Z75, 152) |
2003-2006 |
01 |
| 019 |
88976496 |
HANDLE, R/SEAT RECL (SHALE) |
CK157 (06) (AL4, Y91, Z75, 152) |
2003-2006 |
01 |
| 020 |
88978722 |
RECLINER, R/SEAT |
CK157 (06) (AL4) |
2003-2006 |
01 |
| 020 |
88978723 |
RECLINER, R/SEAT |
CK157 (06) (AL4) |
2003-2006 |
01 |
| 021 |
88936538 |
BUMPER, R/SEAT CUSH |
CK1, 2 (06) (AL4) |
2003-2006 |
04 |
| 022 |
12479652 |
COVER, R/SEAT HGE FIN (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 023 |
88941232 |
RISER, R/SEAT (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 023 |
88941242 |
RISER, R/SEAT (PEWTER) |
CK157 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 023 |
88941243 |
RISER, R/SEAT (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 024 |
12479655 |
БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 025 |
12477365 |
BUSHING, R/SEAT HGE BRKT |
CK1, 2, 3 |
2003-2006 |
08 |
| 026 |
12477386 |
BRACKET, R/SEAT HGE (LH OR RH) (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 027 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (SCREW-ROUND WASHER, M4.2X1.41X13, FULL THD, 11 OD, 6010M, 4345M, C/R, AB PT) (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
02 |
| 028 |
12477366 |
БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 029 |
12477374 |
FRAME, R/SEAT CUSH (LH OR RH) |
CK157 (06) (AL4) |
2003-2006 |
02 |
| 030 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) |
|
2003-2006 |
02 |
| 031 |
88941590 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AL4) (EXC ULT) |
2003-2006 |
01 |
| 031 |
88941591 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AL4) (EXC ULT) |
2003-2006 |
01 |
| 032 |
88976458 |
HEATER, R/SEAT CUSH |
CK1 (06-36) |
2003-2006 |
02 |
| 033 |
88976342 |
COVER, R/SEAT CUSH (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 033 |
88976343 |
COVER, R/SEAT CUSH (SHALE) |
CK1 (06) (AL4, AN3, Y91, Z75, 152) (EXC ULT) |
2004-2006 |
01 |
| 033 |
88976345 |
COVER, R/SEAT CUSH (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 033 |
88976346 |
COVER, R/SEAT CUSH (SHALE) |
CK1 (06) (AL4, AN3, Y91, Z75, 152) (EXC ULT) |
2004-2006 |
01 |
| 033 |
88976390 |
COVER, R/SEAT CUSH (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z88, 922) |
2003-2006 |
01 |
| 033 |
88976391 |
COVER, R/SEAT CUSH (NEUTRAL) |
CK1 (06) (AL4, AN3, Y91, Z88, 522) |
2003-2006 |
01 |
| 033 |
88976393 |
COVER, R/SEAT CUSH (PEWTER) (16.724) |
CK1 (06) (AL4, AN3, Y91, Z88, 922) |
2003-2006 |
01 |
| 033 |
88976394 |
COVER, R/SEAT CUSH (NEUTRAL) |
CK1 (06) (AL4, AN3, Y91, Z88, 522) |
2003-2006 |
01 |
| 034 |
88976336 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 034 |
88976337 |
COVER, R/SEAT BK CUSH (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 034 |
88976339 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK157 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 034 |
88976340 |
COVER, R/SEAT BK CUSH (SHALE) |
CK157 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 035 |
88941588 |
PAD, R/SEAT BK CUSH |
CK157 (06) (AL4) |
2003-2006 |
01 |
| 035 |
88941589 |
PAD, R/SEAT BK CUSH |
CK157 (06) (AL4, AN3) |
2003-2006 |
01 |
| 036 |
88976634 |
COVER, R/SEAT H/RST (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
02 |
| 036 |
88976635 |
COVER, R/SEAT H/RST (SHALE) |
CK1 (06) (AL4, Z75, 152) |
2003-2006 |
02 |
| 036 |
88976889 |
COVER, R/SEAT H/RST (PEWTER) |
CK1 (06) (AL4, Y91, Z88, 922) |
2003-2006 |
02 |
| 036 |
88976890 |
COVER, R/SEAT H/RST (NEUTRAL) |
CK1 (06) (AL4, AN3, Y91, Z88, 522) |
2003-2006 |
02 |
| 037 |
88976684 |
ARMREST, R/SEAT (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 037 |
88976685 |
ARMREST, R/SEAT (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 037 |
88976686 |
ARMREST, R/SEAT (SHALE) |
CK1 (06) (AL4, Z75, 152) |
2003-2006 |
01 |
| 037 |
88976687 |
ARMREST, R/SEAT (SHALE) |
CK1 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 038 |
|
RIVET, R/SEAT H/RST CUSH RET (PART OF 39) |
|
2003-2006 |
|
| 039 |
89046498 |
FRAME, R/SEAT BK CUSH (INCLS 5, 38, 49) |
CK157 (06) (AL4) |
2003-2006 |
01 |
| 039 |
89046499 |
FRAME, R/SEAT BK CUSH (INCLS 5, 38, 49) |
CK157 (06) (AL4) |
2003-2006 |
01 |
| 040 |
|
CLIP, R/SEAT A/RST |
|
2003-2006 |
|
| 041 |
88941786 |
БОЛТ, R/SEAT (M10X1.5X40) |
CK1, 2 (06) (AL4, AT5) |
2003-2006 |
01 |
| 042 |
88955198 |
BELT KIT, R/SEAT (BKL SI) (PEWTER) (SINGLE BKL) (USED FOR RH LH SIDES)
| CK1, 2 (06) (AL4, 922) |
2003-2006 |
01 |
|
| 042 |
88955201 |
BELT KIT, R/SEAT (BKL SI) (SHALE) (SINGLE BKL) (USED FOR RH LH SIDES) |
CK1 (06) (AL4, Y91, Z75, 15I) |
2003-2006 |
01 |
| 043 |
88978733 |
COVER, R/SEAT BELT BOLT (BKL SI) (WHEAT) |
CK1, 2 (06) |
2003-2006 |
01 |
| 044 |
88976887 |
BUSHING, R/SEAT HGE |
CK1, 2, 3 |
2003-2006 |
01 |
| 045 |
88941786 |
БОЛТ, R/SEAT (M10X1.5X40) |
CK1, 2 (06) (AL4, AT5) |
2003-2006 |
02 |
| 046 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (ROUND WASHER, M4.2X1.41X13, FULL THD, 11 OD, 6010M, 4345M, C/R, AB PT) (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
02 |
| 047 |
15181158 |
COVER, R/SEAT HGE FIN (INCLS 54) (SHALE) (O/B) |
CK157 (06) (15I) |
2003-2006 |
01 |
| 047 |
15181159 |
COVER, R/SEAT HGE FIN (INCLS 54) (NEUTRAL) (O/B) |
CK157 (06) (52I) |
2003-2006 |
01 |
| 047 |
15181160 |
COVER, R/SEAT HGE FIN (INCLS 54) (PEWTER) (O/B) |
CK157 (06) (92I) |
2003-2006 |
01 |
| 047 |
15769527 |
COVER, R/SEAT HGE FIN (INCLS 54) (NEUTRAL) |
CK157 (06) (52I) |
2003-2006 |
01 |
| 047 |
15769529 |
COVER, R/SEAT HGE FIN (INCLS 54) (PEWTER) (O/B) |
CK157 (06) (92I) |
2003-2006 |
01 |
| 047 |
15769535 |
COVER, R/SEAT HGE FIN (INCLS 54) (SHALE) (O/B) |
CK157 (06) (15I) |
2003-2006 |
01 |
| 048 |
15043750 |
RETAINER, R/SEAT BK CUSH FIL PNL (PART OF 6) (16.081) |
CK157 (06) (AL4) |
2003-2006 |
02 |
| 049 |
88978646 |
CABLE, R/SEAT H/RST ADJR ACTR (PART OF 39)
| CK157 (06) (AL4) |
2003-2006 |
02 |
|
| 050 |
88938333 |
HARNESS, R/SEAT HTR (INCLS HEATER CONT MDL) |
CK157 (06) (AL4, Y91, Z75) |
2003-2006 |
02 |
| 051 |
|
RETAINER, R/SEAT RSR FIN CVR (PART OF 52) |
|
2003-2006 |
|
| 052 |
15181096 |
COVER, R/SEAT RSR FIN (INCLS 51) (SHALE) (I/B FRT) |
CK157 (06) (AL4, 15I) |
2003-2006 |
01 |
| 052 |
15181097 |
COVER, R/SEAT RSR FIN (INCLS 51) (NEUTRAL) (I/B FRT) |
CK157 (06) (AL4, 52I) |
2003-2006 |
01 |
| 052 |
15181098 |
COVER, R/SEAT RSR FIN (INCLS 51) (PEWTER) (I/B FRT) |
CK157 (06) (AL4, 92I) |
2003-2006 |
01 |
| 052 |
15181102 |
COVER, R/SEAT RSR FIN (INCLS 51) (SHALE) (I/B FRT) |
CK157 (06) (AL4, 15I) |
2003-2006 |
01 |
| 052 |
15181103 |
COVER, R/SEAT RSR FIN (INCLS 51) (NEUTRAL) (I/B FRT) |
CK157 (06) (AL4, 52I) |
2003-2006 |
01 |
| 052 |
15181104 |
COVER, R/SEAT RSR FIN (INCLS 51) (PEWTER) (I/B FRT) |
CK157 (06) (AL4, 92I) |
2003-2006 |
01 |
| 053 |
15181080 |
COVER, R/SEAT RSR FIN (INCLS 54) (SHALE) (I/B RR) |
CK157 (06) (AL4, 15I) |
2003-2006 |
01 |
| 053 |
15181081 |
COVER, R/SEAT RSR FIN (INCLS 54) (NEUTRAL) (I/B RR) |
CK157 (06) (AL4, 52I) |
2003-2006 |
01 |
| 053 |
15181082 |
COVER, R/SEAT RSR FIN (INCLS 54) (PEWTER) (I/B RR) |
CK157 (06) (AL4, 92I) |
2003-2006 |
01 |
| 053 |
15181135 |
COVER, R/SEAT RSR FIN (INCLS 54) (SHALE) (I/B RR) |
CK157 (06) (AL4, 15I) |
2003-2006 |
01 |
| 053 |
15181136 |
COVER, R/SEAT RSR FIN (INCLS 54) (NEUTRAL) (I/B RR) |
CK157 (06) (AL4, 52I) |
2003-2006 |
01 |
| 053 |
15181137 |
COVER, R/SEAT RSR FIN (INCLS 54) (PEWTER) (I/B RR) |
CK157 (06) (AL4, 92I) |
2003-2006 |
01 |
| 054 |
10290472 |
RETAINER, R/SEAT HGE FIN CVR (PART OF 47, 53) (10 X 19.2) (12.811) |
CK1, 2, 3 |
2003-2006 |
08 |
