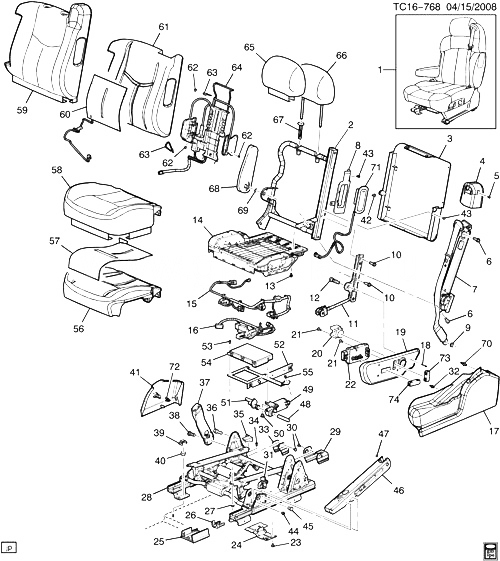

(TC16-768) - 2004-2006 CK(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET (AN3, EXC PLATINUM EDITION ULT) CADILLAC - ESCALADE (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19126903 SEAT, DRVR (W/BELT) (PEWTER) CK1 (06) (AG2, AJ7, AL0, AN3, Y91, Z88, 922) 2006-2006 01
001 19126904 SEAT, DRVR (W/BELT) (NEUTRAL) CK1 (06) (AG2, AJ7, AL0, AN3, Y91, Z88, 522) 2006-2006 01
001 19126909 SEAT, DRVR (W/BELT) (PEWTER) CK157 (06) (AG2, AJ7, AL0, AN3, Y91, Z75, 922) 2006-2006 01
001 19126910 SEAT, DRVR (W/BELT) (SHALE) CK157 (06) (AG2, AJ7, AL0, AN3, Y91, Z75, 152) (EXC ULT) 2006-2006 01
002 88978379 FRAME, D/SEAT BK CUSH (USE W/ARMREST W/AIRBAG) CK1, 2 (06-36) (AG1, AL0, AN3) 2004-2006 01
003 88941749 PANEL, D/SEAT BK CUSH FIN CK1, 2, 3 (EXC ULT) 2003-2006 01
004 12473303 COVER, D/SEAT SHLDR BELT OPG TR CK1, 2, 3 2003-2006 01
005 12476324 БОЛТ, D/SEAT SHLDR BELT OPG TR CVR (M4X0.7X12) (HEX HD) (16.679) CK1, 2, 3 2003-2006 02
006 12473319 БОЛТ, D/SEAT SHLDR BELT GDE BRKT (M12X1.75X37) (HEX) (OUTER) (16.682) CK1, 2, 3 2003-2006 02
007 88956018 BELT KIT, D/SEAT (RETR SI) (PEWTER) CK1, 2 (06) (AN3, 92I) 2003-2006 01
007 88956020 BELT KIT, D/SEAT (RETR SI) (NEUTRAL) CK1, 2 (06) (AN3, 52I) 2003-2006 01
007 88956021 BELT KIT, D/SEAT (RETR SI) (SHALE) CK1 (06-36) (AN3, AG2, AL0, Z75, 152) 2003-2006 01
008 12478515 RETAINER, D/SEAT SI INFL RST MDL CK1, 2 (06) 2003-2006 01
009 11516078 ГАЙКА, D/SEAT BELT (RETR SI) (M12X1.75X18) (8.917) CK1, 2, 3 2003-2006 01
010 12473319 БОЛТ, D/SEAT RECL (TO BACK FRAME) (M12X1.75X37) (HEX) (OUTER) CK1, 2, 3 2003-2006 02
011 88940876 RECLINER, D/SEAT CK1, 2, 3 (AN3) 2003-2006 01
012 89045964 БОЛТ, D/SEAT BK CUSH LAT (M14X76) (W/BUSHING) CK1, 2, 3 2004-2006 01
013 12473290 RETAINER, D/SEAT CUSH (NATURAL) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 02
014 88943143 FRAME, D/SEAT CUSH (POWER) CK1, 2, 3 (AG2, AN3) 2003-2006 01
014 88943143 FRAME, D/SEAT CUSH (POWER) CK1, 2, 3 (AG1, AE7, AN3, A95) (EXC ULT) 2004-2006 01
015 19126819 HARNESS, D/SEAT ADJR WRG CK1 (06) (AG2, AJ7, AL0, AN3, Y91, Z88, 522, 922) 2006-2006 01
015 19126819 HARNESS, D/SEAT ADJR WRG CK157, 159 (06-36) (AG2, AJ7, AL0, AN3, Y91, Z75, 152, 922) (EXC ULT) 2006-2006 01
016 88940258 HARNESS, D/SEAT ADJR WRG (JUMPER) CK1 (06) (AG2, AJ7, AL0, AN3, Y91, Z88, 522, 922) 2003-2006 01
016 88940258 HARNESS, D/SEAT ADJR WRG (JUMPER) CK157, 159 (06-36) (AG2, AJ7, AL0, AN3, Y91, Z75, 152, 922) (EXC ULT) 2003-2006 01
017 88941719 COVER, D/SEAT RSR FIN (INCLS 32, 70) (PEWTER) CK1, 2, 3 (AG2, AN3, 922) 2003-2006 01
017 88941720 COVER, D/SEAT RSR FIN (INCLS 32, 70) (NEUTRAL) CK1, 2, 3 (AG2, AN3, 522) 2003-2006 01
017 88941721 COVER, D/SEAT RSR FIN (INCLS 32, 70) (SHALE) CK157, 159 (06) (AG2, AL0, AN3, Y91, Z75, 152) 2003-2006 01
018 88941745 БОЛТ, D/SEAT ADJR SW BZL (M3.5X1.3X45MM) (PAN HEAD PHILLIPS) CK1, 2, 3 (AN3) 2003-2006 05
019 88941680 BEZEL, D/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG2, AN3, 692) 2003-2006 01
019 88941682 BEZEL, D/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG2, AN3, 922) 2003-2006 01
019 88941684 BEZEL, D/SEAT ADJR SW (NEUTRAL) CK1, 2, 3 (AG2, AN3, 522) 2003-2006 01
019 88941686 BEZEL, D/SEAT ADJR SW (SHALE) CK157, 159 (06) (AG2, AN3, Y91, Z75, 152) 2003-2006 01
020 12473558 SWITCH, D/SEAT LUMBAR CONT (INCLS KNOB) (4 WAY SWITCH) CK1, 2, 3 (AN3) 2003-2006 01
020 19127155 SWITCH, D/SEAT LUMBAR CONT (2-WAY SWITCH) CK1, 2, 3 (AN3) 2006-2006 01
021 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (D/SEAT ADJR SW) 2003-2006 05
022 12450166 SWITCH, D/SEAT ADJR (INCLS 73, 74) (INCLS RECLINER SW.) (8-WAY) CK1, 2, 3 (AN3) 2003-2006 01
023 88936767 БОЛТ, D/SEAT ADJR (M6X1X10) CK1, 2, 3 2003-2006 04
024 88940328 BRACKET, D/SEAT ADJR WRG HARN CK1, 2, 3 2003-2006 01
025 12473317 COVER, D/SEAT OTR ADJR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
026 12478516 COVER, D/SEAT OTR ADJR LWR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
027 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (F/SEAT CUSH FRM) 2003-2006 04
028 88940274 ADJUSTER, D/SEAT (INCLS 31) (INCLS ADJUSTER MOTOR SENSOR) (LESS RECLINER MOTOR) CK1, 2 (06) (AN3) (EXC ULT) 2004-2006 01
029 88935557 COVER, D/SEAT OTR ADJR UPR RR FIN (BLACK) CK1, 2, 3 2003-2006 01
030 20538173 RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 10
031 19180158 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 28) CK1, 2 2003-2006 01
031 88982093 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 28) (INCLS RIVETS) CK1, 2 2003-2006 01
032 CLIP, D/SEAT RSR FIN (PART OF 17) 2004-2006
033 12478511 COVER, D/SEAT INR ADJR UPR FIN (BLACK) CK1, 2, 3 2003-2006 01
034 11562473 БОЛТ, F/SEAT (M12X1.75X45) (16.670) CK1, 2, 3 2006-2006 04
034 11562473 БОЛТ, F/SEAT (M12X1.75X45) CK1, 2, 3 2006-2006 04
035 15040025 COVER, F/SEAT ADJR FIN (PEWTER) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (92I) 2003-2006 01
035 15051616 COVER, F/SEAT ADJR FIN (NEUTRAL) (DRIVER SIDE) (I/B TRACK) CK1, 2 (06-36) (52I) 2003-2006 01
035 15768515 COVER, F/SEAT ADJR FIN (SHALE) (DRIVER SIDE) (I/B TRACK) CK1 (06-36) (15I) 2003-2006 01
036 88976917 БОЛТ, F/SEAT BK CUSH PIV (M10X1.5X28.5) CK1, 2, 3 2003-2006 01
037 88957873 BELT KIT, D/SEAT (BKL SI) (SHALE) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1 (06-36) (AN3, Y91, Z75, 152) 2003-2006 01
037 88957874 BELT KIT, D/SEAT (BKL SI) (NEUTRAL) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AN3, 52I) 2003-2006 01
037 88957876 BELT KIT, D/SEAT (BKL SI) (PEWTER) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06) (AN3, 92I) 2003-2006 01
038 88981775 БОЛТ, D/SEAT BELT (BKL SI) (M12X1.75X35) (PAN HD) CK1, 2, 3 2003-2006 01
039 15763293 COVER, F/SEAT ADJR FIN (BLACK) (DRIVER SIDE) (I/B TRACK) (FRT) CK1, 2 (06-36) 2003-2006 01
040 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 04
041 88941700 COVER, D/SEAT INR ADJR RR FIN (INCLS 72) (PEWTER) CK1, 2, 3 (69I) 2003-2006 01
041 88941702 COVER, D/SEAT INR ADJR RR FIN (INCLS 72) (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
041 88941704 COVER, D/SEAT INR ADJR RR FIN (INCLS 72) (NEUTRAL) CK1, 2, 3 (52I) 2003-2006 01
041 88941706 COVER, D/SEAT INR ADJR RR FIN (INCLS 72) (SHALE) CK1, 2 (152, 522) 2003-2006 01
042 11514623 БОЛТ, INFL RST CONT MDL (M6X1X20) (8.900) CK1, 2 (06) 2003-2006 04
043 20538173 RETAINER, D/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 AR
044 88936767 БОЛТ, D/SEAT RECL (M6X1X10) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 01
045 88936522 БОЛТ, D/SEAT RECL (M10X1.5X12.56) (SHLDR) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 02
046 88941830 BRACKET, D/SEAT OTR ADJR CK1, 2, 3 2003-2006 01
047 12476880 RETAINER, D/SEAT ADJR LAT ROD (10.0MM OD, 5.9MM LG) (PUSH-IN) CK1, 2, 3 2003-2006 01
048 12473994 CABLE, D/SEAT RECL ACTR (DRIVE) CK1, 2, 3 (AG2, AN3) 2003-2006 01
049 89026367 MOTOR KIT, F/SEAT RECL ACTR (DRVR PASS) (ACDelco #89026367) CK1, 2, 3 (AN3) 2003-2006 02
050 12475950 RETAINER, F/SEAT ADJR MEMORY MDL (LOWER, MOUNTS TO MOTOR) CK1, 2, 3 (AG2, AN3) 2003-2006 01
051 88938614 MODULE, D/SEAT RECL (POTENTIOMETER) (DRVR RECLINER HEATER, PASS HEATER) CK1, 2, 3 (AG2, AN3) 2003-2006 01
052 88940257 BRACKET, D/SEAT ADJR MEMORY MDL CK1, 2, 3 (AG2, AN3) (EXC ULT) 2004-2006 01
053 12473323 БОЛТ, D/SEAT RSR FIN CVR (M4X0.7X13) (ROUND WASHER HEAD, #2 POZ1 TAPTITE) CK1, 2, 3 2003-2006 04
054 15837361 MODULE, D/SEAT ADJR MEMORY (ALSO НАГРЕВАТЕЛЬ) CK1 (06-36) (AG2, AJ7, AN3, Z75, Y91) 2006-2006 01
055 12476324 БОЛТ, D/SEAT (M4X0.7X12) (HEX HD) CK1, 2, 3 2003-2006 02
056 88941606 PAD, D/SEAT CUSH CK1, 2, 3 (AN3) 2003-2006 01
057 88940288 HEATER, D/SEAT CUSH (PEEL STICK) CK1, 2, 3 (AN3) 2003-2006 01
058 19127429 COVER, D/SEAT CUSH (SHALE) CK1, 2 (06) (AG2, AL0, AN3, 522) 2003-2006 01
058 88976130 COVER, D/SEAT CUSH (PEWTER) (16.720) CK1 (06) (AG2, AL0, AN3, Y91, Z88, 922) 2003-2006 01
058 88976131 COVER, D/SEAT CUSH (NEUTRAL) (16.720) CK1 (06) (AG2, AJ7, AL0, AN3, Y91, Z88, 522) 2003-2006 01
058 88976142 COVER, D/SEAT CUSH (PEWTER) (16.720) CK1 (06-36) (AG2, AL0, AN3, Y91, Z75, 922) 2003-2006 01
058 88976143 COVER, D/SEAT CUSH (SHALE) (16.720) CK1 (06-36) (AG2, AL0, AN3, Y91, Z75, 152) (EXC ULT) 2004-2006 01
059 88976124 COVER, D/SEAT BK CUSH (PEWTER) CK1 (06) (AG2, AJ7, AN3, Y91, Z88, 922) 2003-2006 01
059 88976125 COVER, D/SEAT BK CUSH (NEUTRAL) CK1 (06) (AG2, AJ7, AN3, Y91, Z88, 522) 2003-2006 01
059 88976136 COVER, D/SEAT BK CUSH (PEWTER) CK1 (06) (AG2, AJ7, AN3, Y91, Z75, 922) 2004-2006 01
059 88976137 COVER, D/SEAT BK CUSH (SHALE) CK1 (06-36) (AG2, AJ7, AN3, Y91, Z75, 152) (EXC ULT) 2004-2006 01
059 89043852 COVER, D/SEAT BK CUSH (PEWTER) CK1 (06) (AG2, AN3, 522) (EXC LTJ) 2006-2006 01
060 88940289 HEATER, D/SEAT BK CUSH (PEEL AND STICK) CK1, 2, 3 (AN3) 2003-2006 01
061 88941596 PAD, D/SEAT BK CUSH CK1, 2, 3 (AN3) (EXC AJ7) 2003-2006 01
061 88941602 PAD, D/SEAT BK CUSH (USED W/TRIM CODES ENDING IN 2) CK1, 2, 3 (06-36) (AJ7, AN3) (EXC ULT) 2004-2006 01
062 12473564 RIVET, F/SEAT (CUPHOLDER) (16.674) CK1, 2, 3 (AE7, AN3) 2003-2006 04
063 TIESTRAP, D/SEAT BK 2004-2006
064 88978360 LUMBAR, D/SEAT BK (INCLS MOTORS) CK1 (06-36) (AN3, Y91) (EXC ULT) 2006-2006 01
065 COVER, D/SEAT H/RST (PART OF 66) (Y91) 2004-2006
066 88940263 PAD, D/SEAT H/RST (NON-PIVOTING) CK1, 2, 3 2004-2006 01
066 88977070 RESTRAINT, D/SEAT HD (INCLS 65) (PEWTER) CK1 (06) (AN3, Y91, Z88, 922) 2003-2006 01
066 88977071 RESTRAINT, D/SEAT HD (INCLS 65) (NEUTRAL) CK1 (06) (AN3, Y91, Z88, 522) 2003-2006 01
066 88977073 RESTRAINT, D/SEAT HD (INCLS 65) (PEWTER) CK1 (06-36) (AN3, Y91, Z75, 922) 2003-2006 01
066 88977074 RESTRAINT, D/SEAT HD (INCLS 65) (SHALE) CK1 (06-36) (AN3, Y91, Z75, 152) 2003-2006 01
067 12478541 SUPPORT, D/SEAT H/RST (SHALE) (W/O BUTTON) CK1 (06-36) (AN3, Z75, 152) 2003-2006 02
067 12478541 SUPPORT, D/SEAT H/RST (SHALE) (W/O BUTTON) CK1, 2 (522) 2003-2006 02
067 88935568 SUPPORT, D/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2, 3 (52V, 52C, 52D) 2005-2006 02
067 88936899 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2 (06) (AN3, Y91, Z88, 922) 2003-2006 02
067 88936899 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1 (06) (AN3, Y91, Z88, 922) 2005-2006 02
067 88941190 SUPPORT, D/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2, 3 (69I) 2003-2006 02
068 88940777 ARMREST, D/SEAT (NEUTRAL) CK1 (06) (AG2, AN3, Y91, Z88, 522) 2003-2006 01
068 88940781 ARMREST, D/SEAT (PEWTER) CK1 (06-36) (AG2, AN3, Y91, Z75, 922) 2003-2006 01
068 88940783 ARMREST, D/SEAT (SHALE) CK1 (06-36) (AG2, AN3, Y91, Z75, 152) 2003-2006 01
068 88941765 ARMREST, D/SEAT (PEWTER) CK1 (06) (AG2, AN3, Y91, Z88, 922) 2003-2006 01
069 12387540 CLIP, D/SEAT A/RST (11.374) CK1, 2, 3 (AN3, A95) 2003-2006 01
070 RETAINER, D/SEAT ADJR FIN CVR (PART OF 17) 2004-2006
071 15831644 MODULE, D/SEAT SI INFL RST (PEWTER) (W/HARNESS) CK1, 2 (06) (92I) 2003-2006 01
072 CLIP, D/SEAT INR ADJR RR FIN (PART OF 41) 2004-2006
073 19122219 KNOB, F/SEAT RECL (PART OF 22) (EBONY) (DRIVER) CK1, 2, 3 (AN3) 2003-2006 01
074 19122217 KNOB, F/SEAT ADJR SW (PART OF 22) (EBONY) CK1, 2, 3 (AN3) 2003-2006 01
