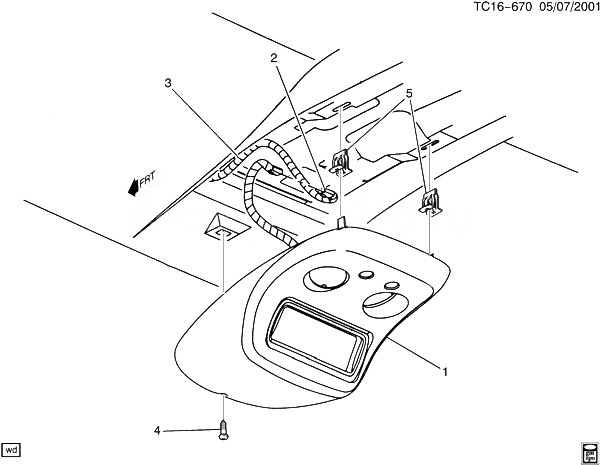

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15090147 |
КОНСОЛЬ, RF (PEWTER) |
CK1 (06) (DK7, UG1, Z75, 92I) (EXC UE1) |
2003-2006 |
01 |
| 001 |
15090150 |
КОНСОЛЬ, RF (PEWTER) |
CK1 (06) (DK7, UE1, UG1, Z75, 92I) |
2003-2006 |
01 |
| 001 |
15166062 |
КОНСОЛЬ, RF (SHALE) (RR CONT ШЛАНГИ) (INCLS MOUNTING RETAINERS) |
CK157 (06) (CJ3, DK7, YE9, 52I, 92I) |
2003-2006 |
01 |
| 001 |
15247266 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2 (06) (DK7, UE1, 52I, 92I) (EXC UG1) |
2003-2006 |
01 |
| 001 |
15256872 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2 (06) (DK7, UG1, 15I, 52I, 69I, 92I) (EXC UE1) |
2003-2006 |
01 |
| 001 |
15256895 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2 (06) (DK7, 15I, 52I, 92I) (EXC UE1, UG1) |
2003-2006 |
01 |
| 001 |
15812242 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2 (06) (DK7, UE1, UG1, 15I, 52I) |
2003-2006 |
01 |
| 001 |
15826743 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2, 3 (52I, 69I, 6C7) |
2003-2006 |
01 |
| 002 |
12101864 |
CONNECTOR, LP-DM (BLACK) (3-WAY FEMALE) (MP150) (W/LEADS) (2.535) (ACDelco #PT256) |
CK1, 2 (06-36) |
2006-2006 |
02 |
| 003 |
15143655 |
HARNESS, RF ACSRY WRG |
CK157 (06) (CJ3, DK7, YE9) (EXC C36) |
2003-2006 |
01 |
| 003 |
15143657 |
HARNESS, RF ACSRY WRG |
CK157 (06) (CJ2, C36, DK7) (EXC U42) |
2003-2006 |
01 |
| 003 |
15143660 |
HARNESS, RF ACSRY WRG |
CK157 (06) (CJ2, C36, DK7, U42) |
2003-2006 |
01 |
| 003 |
15813029 |
HARNESS, RF ACSRY WRG (USED ON VEH W/O REAR HVAC CONTROL IN ROOF) |
CK157 (06) (CJ3, C36, DK7, YE9) |
2006-2006 |
01 |
| 004 |
11504773 |
SCREW, PAN HD, TORX, SELF TAP, M4.2X1.41X40, BLK OXIDE |
|
1999-2007 |
01 |
| 005 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (RF CNSL BKG PLT) |
|
1999-2007 |
02 |
