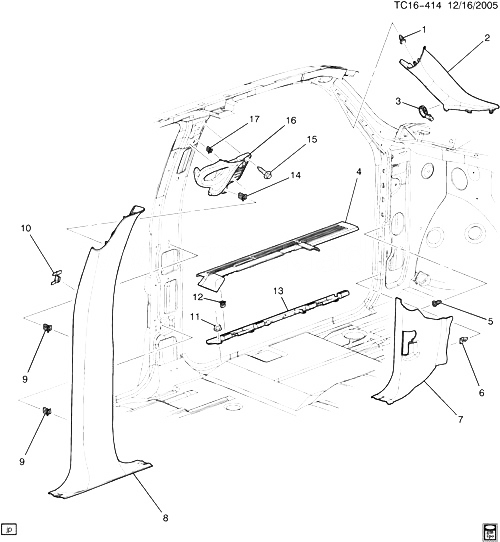

(TC16-414) - 2002-2006 CK1(06) ОТДЕЛКА/INTERIOR-BODY SIDE FRONT (CADILLAC Z75) CADILLAC - ESCALADE (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609682 RETAINER, W/S SI G/MLDG (CLIP - 20.0X17.2X37.5, 1050 ANNEALED SPR STL, GMW3044) (PART OF 2) (20X17.2X37.5) CK1, 2, 3 2006-2006 02
002 15262931 MOLDING, W/S SI GARN (INCLS 1, 3) (SHALE) (INCLS SPEAKER GRILLE) CK1 (UQ7, 15I) (EXC ULT) 2005-2006 01
002 15262933 MOLDING, W/S SI GARN (INCLS 1, 3) (PEWTER) (INCLS SPEAKER GRILLE) CK1, 2, 3 (UQ7, 92I) 2005-2006 01
002 15262936 MOLDING, W/S SI GARN (INCLS 1, 3) (SHALE) (INCLS SPEAKER GRILLE) CK1 (UQ7, 15I) (EXC ULT) 2004-2006 01
002 15262938 MOLDING, W/S SI GARN (INCLS 1, 3) (PEWTER) (INCLS SPEAKER GRILLE) CK1, 2, 3 (UQ7, 92I) 2003-2006 01
003 10369087 SPEAKER, RDO W/S SI G/MLDG (PART OF 2) (TWEETER) CK1, 2, 3 (UQ7) 2003-2006 02
004 10359441 PLATE, FRT S/D SILL TR (INCLS 12) (SHALE) CK1 (06-36) (Y91, Z75, 15I) (EXC ULT) 2004-2006 01
004 10359442 PLATE, FRT S/D SILL TR (INCLS 12) (PEWTER) CK1 (06-36) (Y91, Z75, 92I) 2002-2006 01
004 10359444 PLATE, FRT S/D SILL TR (INCLS 12) (SHALE) CK1 (06-36) (Y91, Z75, 15I) (EXC ULT) 2004-2006 01
004 10359445 PLATE, FRT S/D SILL TR (INCLS 12) (PEWTER) CK1 (06-36) (Y91, Z75, 92I) 2002-2006 01
007 15212890 PANEL, BODY H/PLR TR (INCLS 5, 6) (SHALE) CK1 (15I) 2002-2006 01
007 15212892 PANEL, BODY H/PLR TR (INCLS 5, 6) (PEWTER) CK1, 2, 3 (92I) (EXC HP2) 2006-2006 01
007 15212895 PANEL, BODY H/PLR TR (INCLS 5, 6) (SHALE) CK1 (15I) 2006-2006 01
007 15212897 PANEL, BODY H/PLR TR (INCLS 5, 6) (PEWTER) CK1, 2, 3 (92I) 2006-2006 01
008 15850688 MOLDING, C/PLR GARN (INCLS 9, 10, 14) (PEWTER) CK1, 2 (06) (92I) 2002-2006 01
008 15850689 MOLDING, C/PLR GARN (INCLS 9, 10, 14) (PEWTER) CK1, 2 (06) (92I) 2002-2006 01
008 15850692 MOLDING, C/PLR GARN (INCLS 9, 10, 14) (SHALE) CK1 (06-36) (15I) (EXC ULT) 2004-2006 01
008 15850693 MOLDING, C/PLR GARN (INCLS 9, 10, 14) (SHALE) CK1 (06-36) (15I) (EXC ULT) 2004-2006 01
009 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 8) 2002-2006 04
011 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (FRT S/D SILL TR PLT BRKT) (8.921) 2002-2006 08
012 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 4) 2002-2006 08
013 15286766 BRACKET, FRT S/D SILL TR PLT (CUT AS REQUIRED) (MAY NEED TO ORDER NEWEST BRKT STUD, P/N 20695864) CK1, 2, 3 (EXC HP2) 2004-2006 02
015 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ASST HDL) 2002-2006 06
016 10391186 HANDLE, ASST (INCLS 17) (PEWTER) (CENTER PILLAR) CK1, 2 (06) (92I) 2002-2006 01
016 10391188 HANDLE, ASST (INCLS 17) (SHALE) (CENTER PILLAR) CK157, 159 (06) (15I) 2006-2006 01
016 10391191 HANDLE, ASST (INCLS 17) (PEWTER) (CENTER PILLAR) CK1, 2 (06) (92I) 2002-2006 01
016 10391193 HANDLE, ASST (INCLS 17) (SHALE) (CENTER PILLAR) CK1 (06-36) (15I) 2002-2006 01
017 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 16) 2002-2006 02
