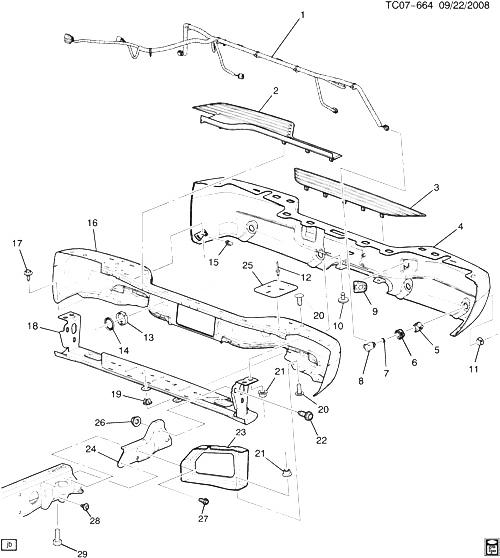

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15092637 |
HARNESS, RR LIC PLT LP WRG (RR OBJECT SEN HARN) |
CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 002 |
15206904 |
PAD, RR BPR STEP (MAY ALSO NEED TO ORDER #15206905)
| CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
|
| 002 |
15206905 |
PAD, RR BPR STEP (MAY ALSO NEED TO ORDER #15206904) |
CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 003 |
15080820 |
PAD, RR BPR STEP CTR (CHARCOAL GREY) |
CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 004 |
88937198 |
FASCIA, RR BPR (PAINT TO MATCH)
| CK1 (06-36) (VT5, Y91, Z75) |
2002-2006 |
01 |
|
| 005 |
|
ШЛАНГИ, RR OBJECT SEN (*KIT1) |
|
2002-2006 |
|
| 006 |
|
RETAINER, RR OBJECT SEN (ПРУЖИНА) (*KIT1) |
|
2002-2006 |
|
| 007 |
|
RETAINER, RR OBJECT SEN (DECOUPLING) (*KIT1) |
|
2002-2006 |
|
| 008 |
|
SENSOR, RR OBJECT (*KIT1) |
|
2002-2006 |
|
| 009 |
15082619 |
LAMP, RR LIC PLT (PART OF 16) (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) |
CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
02 |
| 010 |
15733971 |
RETAINER, RR BPR FASCIA (13MM) (1.272)
| CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
02 |
|
| 011 |
|
BEZEL, RR OBJECT SEN (*KIT1) |
|
2002-2006 |
|
| 012 |
11588561 |
RIVET-POP, 0.25 SHANK, 0.393 LENGTH, 0.5 OD, GRIP RNG 0.093-0.19, 1006 MATL (PART OF 16) |
|
2002-2006 |
04 |
| 013 |
15769308 |
RETAINER, SPA WHL LK CYL CASE (PART OF 16)
| CK1, 2 |
2002-2006 |
01 |
|
| 014 |
15040331 |
RETAINER, SPA WHL LK CYL CASE RET (PART OF 16) (41.0 DIA X 7.1 MM)
| CK1, 2, 3 |
2002-2006 |
01 |
|
| 015 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA)
|
2002-2006 |
02 |
|
| 016 |
25871613 |
BAR, RR BPR IMP (INCLS 9, 12-14, 18, 22-26) (INCLS BRACES, BRACKET, FASTENERS) |
CK1 (06) (VT5, Y91, Z75) |
2002-2006 |
01 |
| 017 |
15714276 |
SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (RR BPR FASCIA) (8.977) |
|
2002-2006 |
02 |
| 018 |
19121940 |
BAR, TRLR HITCH DRAW (PART OF 16) (INCLS STEP BRACKET) |
CK157 (06) (VT5, Y91, Z75) |
2002-2006 |
01 |
| 019 |
15733970 |
RETAINER, RR BPR IMP BAR (BLACK) (16MM) (SCREW NUT) (7.833)
| CK1, 2 |
2002-2006 |
02 |
|
| 020 |
11518660 |
БОЛТ, BUTTON HD, SHT SQ NECK, M12X1.75X25, 15.5 THD, 26 OD, 10.9, 7114M (RR BPR IMP BAR) (3.602)
|
2002-2006 |
12 |
|
| 021 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RR BPR IMP BAR) (8.917) |
|
2002-2006 |
16 |
| 022 |
11516598 |
SCREW, CON WA HD (10X1.5X39) 9.8 7112M 8MM DOG PT (PART OF 16) |
|
2002-2006 |
04 |
| 023 |
15726729 |
BRACE, RR BPR IMP BAR (PART OF 16)
| CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
|
| 023 |
15726730 |
BRACE, RR BPR IMP BAR (PART OF 16)
| CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
|
| 024 |
15008432 |
BRACKET, RR BPR IMP BAR (PART OF 16) |
CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 024 |
15008433 |
BRACKET, RR BPR IMP BAR (PART OF 16)
| CK1 (06) (VT5, Y91, Z75) |
2003-2006 |
01 |
|
| 025 |
15886994 |
PLATE, RR BPR IMP BAR REINF (PART OF 16) |
CK1 (06-36) |
2002-2006 |
02 |
| 026 |
|
ГАЙКА, TRLR HITCH DRAW BAR (PART OF 16) |
|
2002-2006 |
|
| 027 |
11589071 |
SCREW - WASHER ASM M12X1.75 (RR BPR IMP BAR) |
|
2002-2006 |
04 |
| 028 |
11516598 |
SCREW, CON WA HD (10X1.5X39) 9.8 7112M 8MM DOG PT (RR BPR IMP BAR) |
|
2002-2006 |
02 |
| 029 |
11561075 |
BOLT-HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR)
|
2002-2006 |
02 |
|
| K01 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 5-8, 11) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH) (7.831)
| CK1 (06-36) (Z75) |
2002-2006 |
04 |
|
| K01 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 5-8, 11) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH)
| CK1 (06-36) (Z75) |
2002-2006 |
04 |
|
