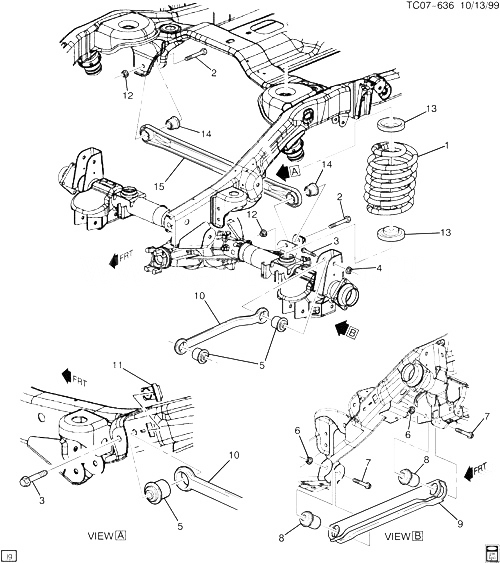

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15182562 |
ПРУЖИНА, RR (COIL) |
C157 (06) (Y91, Z55) |
2002-2006 |
02 |
| 002 |
11517901 |
BOLT-HEX, M14X2X90, 34 THD, 28 OD, 10.9, 7114, MACH, HDR-PT (R/AXL TIE ROD) |
|
2002-2006 |
02 |
| 003 |
11517901 |
BOLT-HEX, M14X2X90, 34 THD, 28 OD, 10.9, 7114, MACH, HDR-PT (R/AXL UPR CONT ARM) |
|
2002-2006 |
02 |
| 004 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (R/AXL UPR CONT ARM)
|
2002-2006 |
04 |
|
| 005 |
|
BUSHING, R/AXL UPR CONT ARM (PART OF 10) |
|
2002-2006 |
|
| 006 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (R/AXL LWR CONT ARM)
|
2002-2006 |
04 |
|
| 007 |
11517766 |
BOLT-HEX, M14X2X106, 34 THD, 28 OD, 10.9, 7114M, MACH, CONE-PT (R/AXL LWR CONT ARM) |
|
2002-2006 |
04 |
| 008 |
|
BUSHING, R/AXL LWR CONT ARM (PART OF 9) |
|
2002-2006 |
|
| 009 |
15239738 |
ARM, R/AXL LWR CONT (INCLS 8)
| CK1 (06-36) |
2002-2006 |
02 |
|
| 010 |
15208540 |
ARM, R/AXL UPR CONT (INCLS 5)
| CK1 (06-36) |
2004-2006 |
02 |
|
| 011 |
11519144 |
ГАЙКА, R/AXL UPR CONT ARM (NUT W/J CLIP RETAINER) |
CK1 (06-36) |
2002-2006 |
02 |
| 012 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (R/AXL TIE ROD)
|
2002-2006 |
04 |
|
| 013 |
15713853 |
INSULATOR, RR SPR |
CK1 (06-36) |
2003-2006 |
04 |
| 014 |
|
BUSHING, R/AXL TIE ROD (PART OF 15) |
|
2002-2006 |
|
| 015 |
15039398 |
ROD, R/AXL TIE (INCLS 14)
| CK1 (06-36) |
2002-2006 |
01 |
|
